Policy Maps
Policy maps are the means by which you apply your class-map properties to physical
switch ports.
Figure 38-6 on page 38.11 illustrates this concept. Note that a policy-map
can be assigned to several ports, but a port cannot have more than one policy-map
assigned to it.

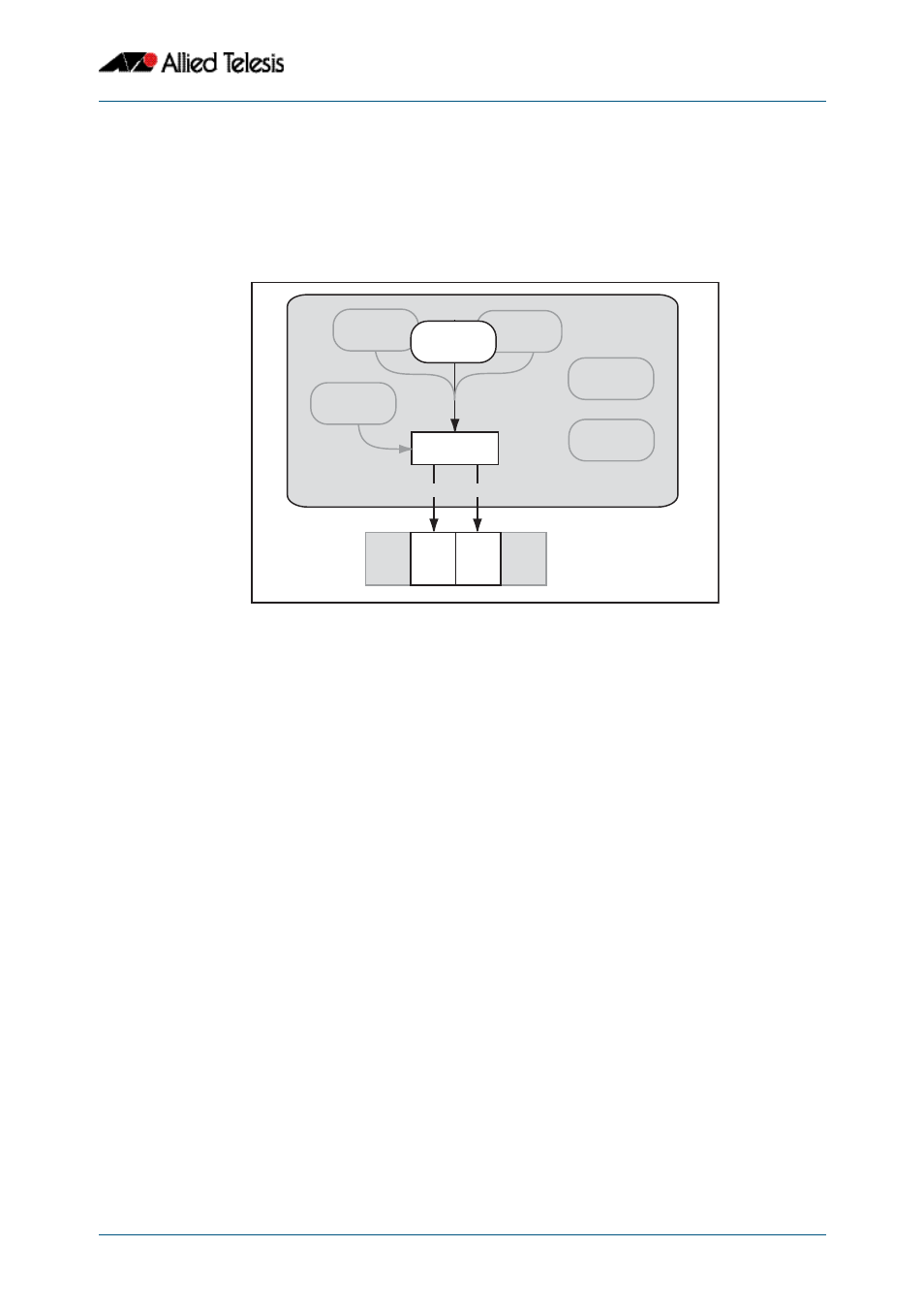

Figure 38-6: Policy Maps and Related Entities
To create and name a new policy-map you use the policy-map command on page 39.28 .
To create a policy-map called pmap1 use the commands:
Having created the policy-map pmap1 we can use the class command on page 39.2 to
assign it to one or more class-maps. Since we created the class-maps video-traffic
and office-traffic earlier in this chapter, we can now attach the policy-map pmap1
to both class-maps.
Use the class command to assign the policy-map pmap1 to the class-maps video-
traffic and office-traffic:
awplus# configure terminal
awplus(config)# policy-map pmap1
awplus# configure terminal
awplus(config)# policy-map pmap1
awplus(config-pmap)# class video-traffic
awplus(config-pmap-c)# exit
awplus(config-pmap)# class office-traffic
awplus(config-pmap-c)#
