IGMP and IGMP Snooping Introduction

Software Reference for x310 Series Switches

30.2

AlliedWare Plus

TM

Operating System - Version 5.4.4C

C613-50046-01 REV A

Introduction

This chapter provides information about Internet Group Management Protocol (IGMP),
IGMP Snooping, and an introduction to the Query Solicitation feature when used with
IGMP Snooping. To see details on the commands used in this example, or to see the
outputs of the validation commands, refer to

Chapter 31, IGMP Snooping Commands

.

IGMP

Internet Group Management Protocol (IGMP) is the protocol that hosts use to indicate that
they are interested in receiving a particular multicast stream. An example of a multicast
system within a single Layer 2 LAN is shown in

Figure 30-1

.

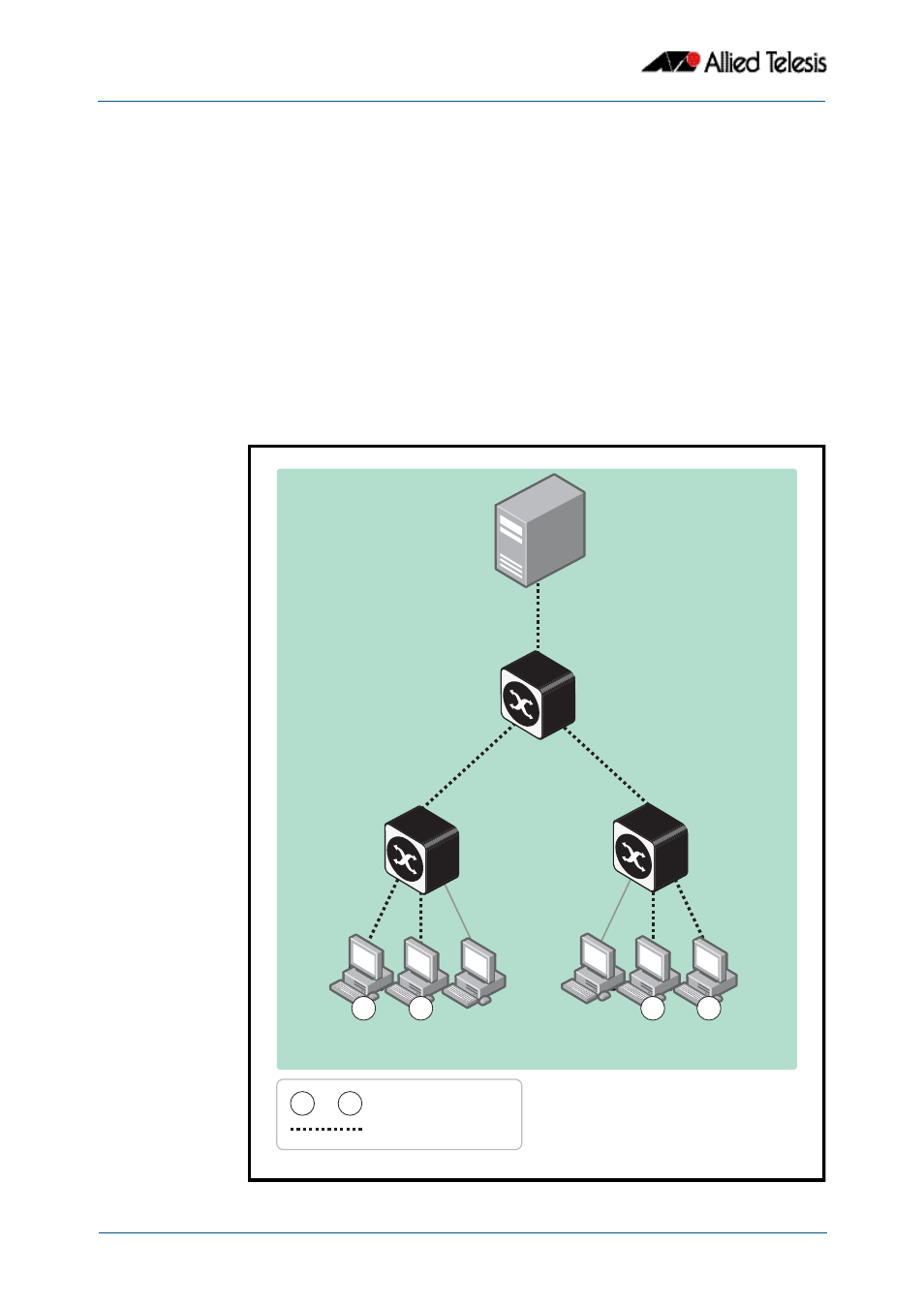

Figure 30-1: Multicast system within a single LAN

1

2

3

4

Path of multicast tree

1

4

to

Multicast hosts/clients

Multicast
source

LAN

IGMP Querier
(also known as
a multicast router)

Layer 2 switches
perform IGMP
snooping

Querier sends IGMP queries
to discover which hosts are
still joined

multicast_2

Multicast hosts send IGMP requests to join and leave groups
