Port profiles
18
Port profile configuration using the
Management application
You can manage MAC addresses and port profiles from the Port Profiles tab of the Fabric_Name
Properties dialog box, as shown in
Figure 292 .

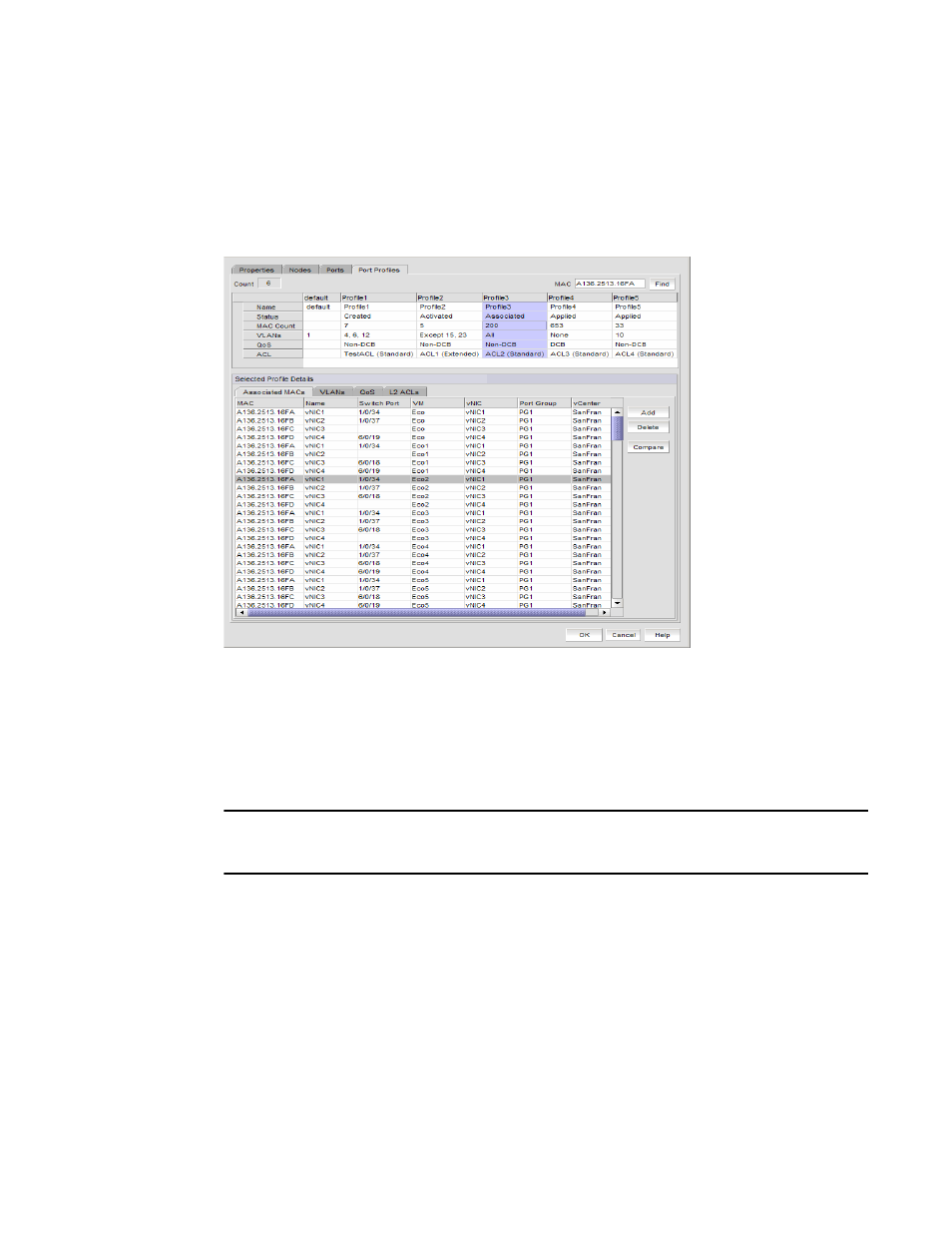

FIGURE 292 Fabric_Name Properties dialog box — Port Profile tab
Assigning MAC addresses to a port profile
Use the Assign MACs dialog box to select discovered Media Access Control (MAC) addresses and
assign them to the selected port profiles. A maximum of 16,000 MAC addresses can be assigned
to a port profile.
NOTE
MAC addresses cannot be added until the profile is activated. You must use the command line
interface to activate the port profile. Refer to the Network OS Command Reference for instructions.
1. Select a VCS-capable switch from the device tree.
2. Right-click and select Properties.
The Fabric Properties dialog box displays.
3. Click the Port Profiles tab.
4. In the Selected Profile Details area, click the Associated MACs tab.
5. Click Add.
The Assign MACs dialog box displays, as shown in Figure 293 .
