Smart card usage
25
Registering authentication cards from the database
Smart cards that are already in the Management program’s database can be registered as
authentication cards.
1. Select Configure > Encryption from the menu task bar to display the Encryption Center
dialog box. (Refer to Figure 376 on page 976.)
2. Select an encryption group from the Encryption Center Devices table, then select Group >
Security from the menu task bar to display the Encryption Group Properties dialog box. The
Security tab is selected. (Refer to
Figure 379 .)

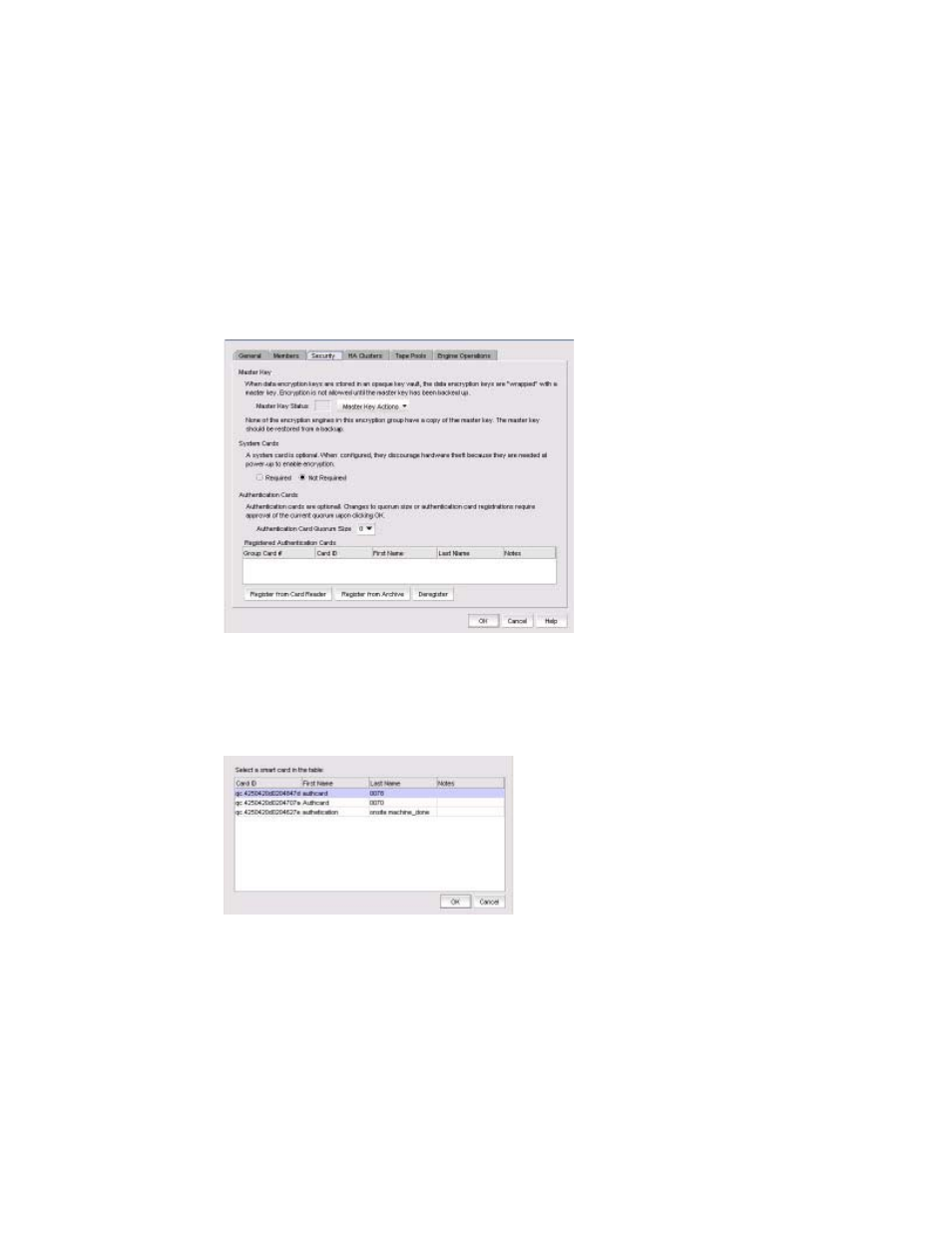

FIGURE 379 Encryption Group Properties dialog box - Security tab
3. Click Register from Archive.
The Authentication Cards dialog box displays. (Refer to Figure 380 .) The table lists the smart
cards that are in the database.
FIGURE 380 Authentication Cards dialog box - Registering smart cards from archive
4. Select a card from the table, then click OK.
5. Wait for the confirmation dialog box indicating initialization is done, then click OK.
The card is added to the Registered Authentication Cards table.
