Predefined flow definition templates
44
The reason for sucess or failure displays in the Details area.
To review the sub-flow data for the selected flow, refer to
Predefined flow definition templates for initiator group
and storage array
The predefined flow templates only display when you select a Flow Vision-capable initiator, or
initiator group, or storage, or storage array.
1. Right-click an initiator, or initiator group, or storage, or storage array from the Connectivity Map
or Product List and select Flow > Static Flow or Aggregated Flow or Frame Type Monitoring or
LUN Monitoring.
2. Select the predefined flow template you want from the list, as shown in
Figure 810
.

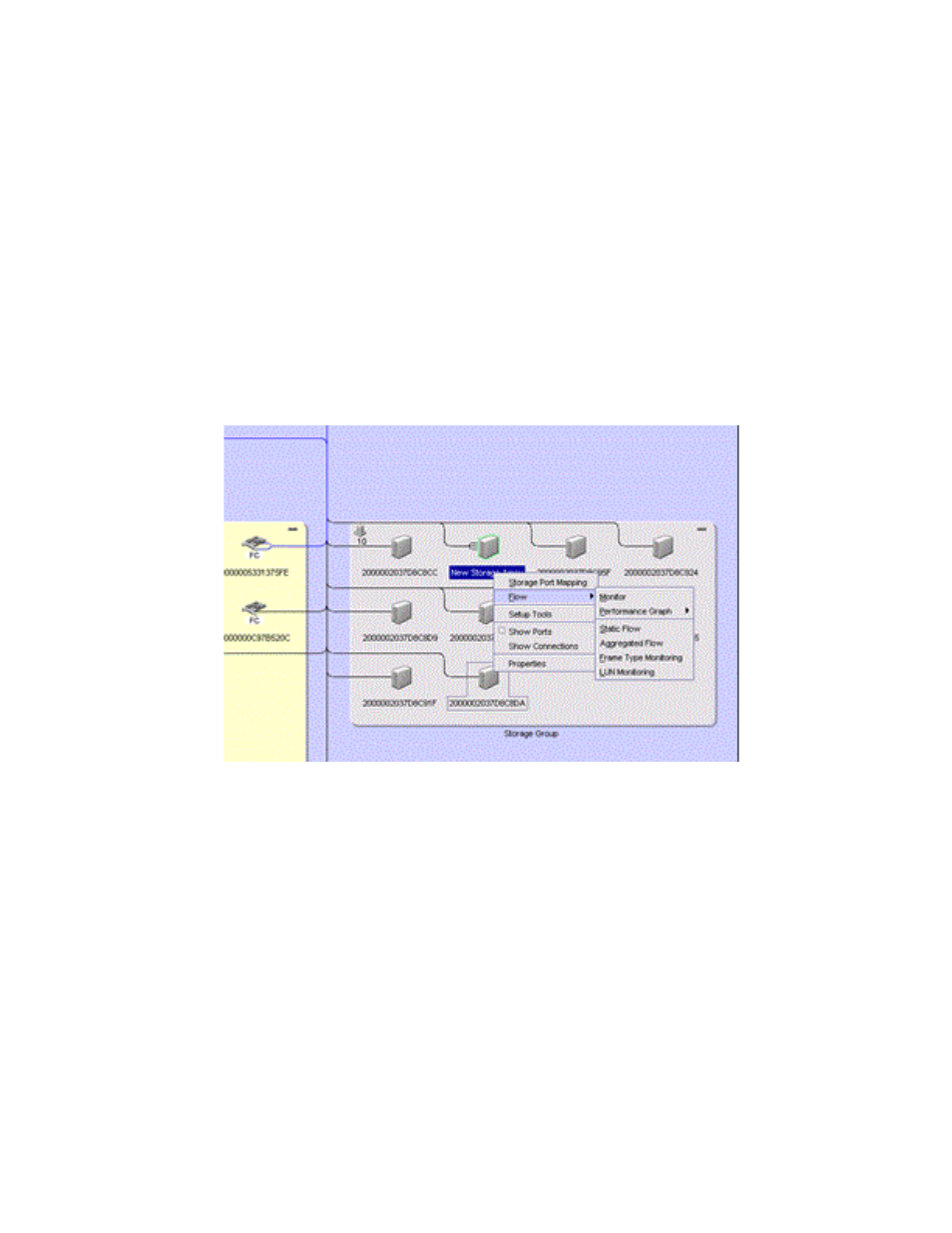

FIGURE 810
List of preconfigured flow templates for initiator/initiator group, storage/storage array
The Add Flow - predefined_flow dialog box displays, as shown in
Figure 808
(where
predefined_flow is the predefined monitor type).
•
Static Flow — Use this Add Flow Definition-Static Flow dialog box to define bidirectiornal
Monitor flow between a source and a destination device. Refer to
“Configuring Static Flow
template”
on page 1807" for more information.
•
Aggregated Flow — Use this Add Flow Definition-Aggregated Flow dialog box to define
bidirectional Monitor flow for a storage port. Refer to
“Configuring Aggregated Flow
template”
on page 1808" for more information.
•
Frame Type Monitoring — Use this Add Flow Definition-Frame Type Monitoring dialog box to
define unidirectional Monitor flow between a source and a destination device including a
frame type from the list. Refer to
“Configuring Frame Type Monitoring template”
on
page 1810" for more information.
