Brocade Network Advisor SAN + IP User Manual
317
53-1003155-01
Inventory
7

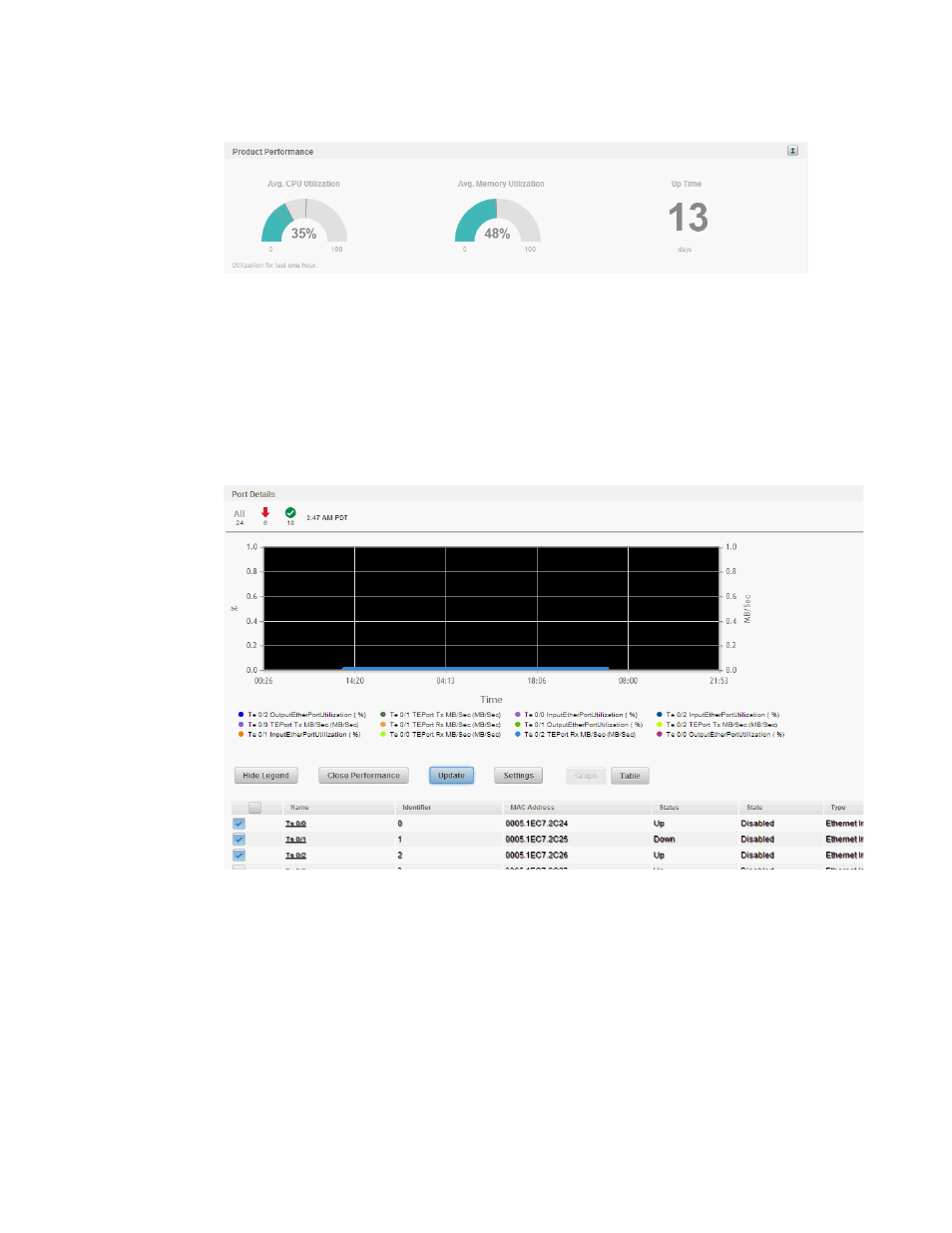

FIGURE 132
Product Performance area
The Product Performance area displays the following information for the selected product:
•
Collapse/Expand button — Click to collapse or expand the view.
•
Avg. CPU Utilization — Displays the average percentage of CPU utilization in graphical
format.
•
Avg. Memory Utilization — Displays the average percentage of memory utilization in
graphical format.
•
Up Time (in days) — Displays the number of days the product has been up and running.
FIGURE 133
Port Details area
The Ports Details area displays the following data for the selected product:
•
Collapse/Expand button — Click to collapse or expand the view.
•
All — Displays the number of ports in the selected switch.
•
Status icons — Displays the status icon (Healthy, Marginal, Not Reachable and so on) and
the number of ports with that status beneath the icon.
•
Show Performance button — Select a port in the table and click to show the performance
graph or table.
•
Performance graph/table — Displays the performance data when configured. To configure
a graph or table, refer to
“Configuring a port measure performance graph”
on page 321.
