Brocade Network Advisor SAN + IP User Manual v12.3.0 - Manual (Page 1261)

Brocade Network Advisor SAN + IP User Manual 1189
53-1003155-01
Zoning configuration
26
a. Load the newly created offline zone database.
b. Add the active zones to the zone configuration that is the active configuration on the other
fabric.
c. Rename the inactive configuration.
Merging two zone databases
If a zone or zone configuration is merged, the resulting zone or zone configuration includes all
members that were marked for addition or removal as well as all members not otherwise marked.
NOTE: You cannot merge the following zones with a Network OS fabric:
• Zones with aliases (can merge with Network OS 3.0.0 and later)
• Zones with D,I members
• TI zones
• QoS zones
• Redirection zones
1. Select Configure > Zoning > Fabric.
The Zoning dialog box displays.
2. Select Compare from the Zone DB Operation list.
The Compare/Merge Zone DBs dialog box displays, as shown in Figure 532 .

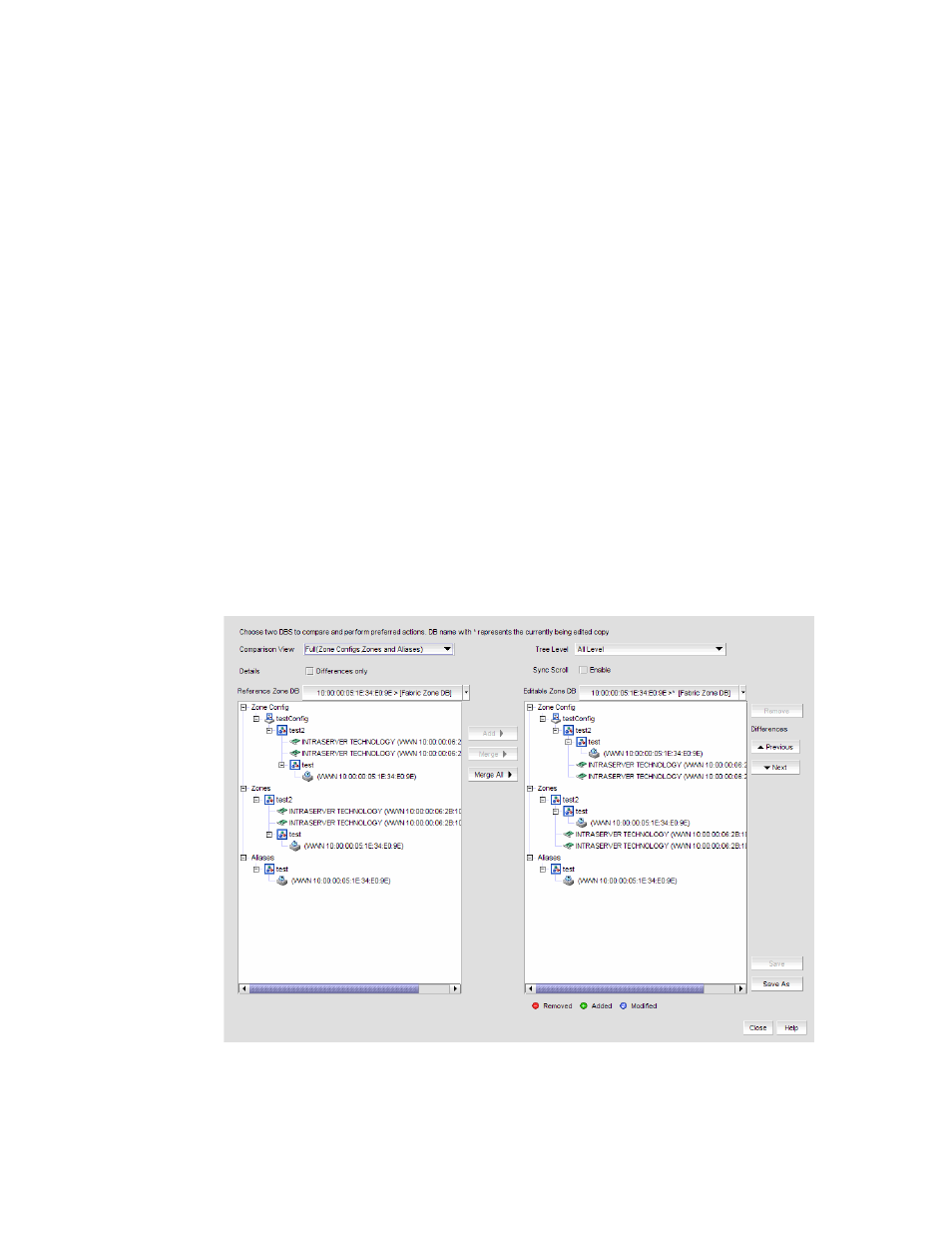

FIGURE 532 Compare/Merge Zone DBs dialog box
3. Select a database from the Reference Zone DB list.
