Flow Monitor
44
Selecting a mirror port from a list of available ports
Only supported on 16 Gbps-capable ports on devices running Fabric OS 7.3 or later.
To select the mirror port, complete the following steps.
1. Click the ellipses button to the right of the Mirror Port field.
The Select Mirror Port dialog box displays expanded to display all unoccupied, loopback, and
mirror ports for the target switch in the Available list.
Unsupported ports do not display in the Available list.

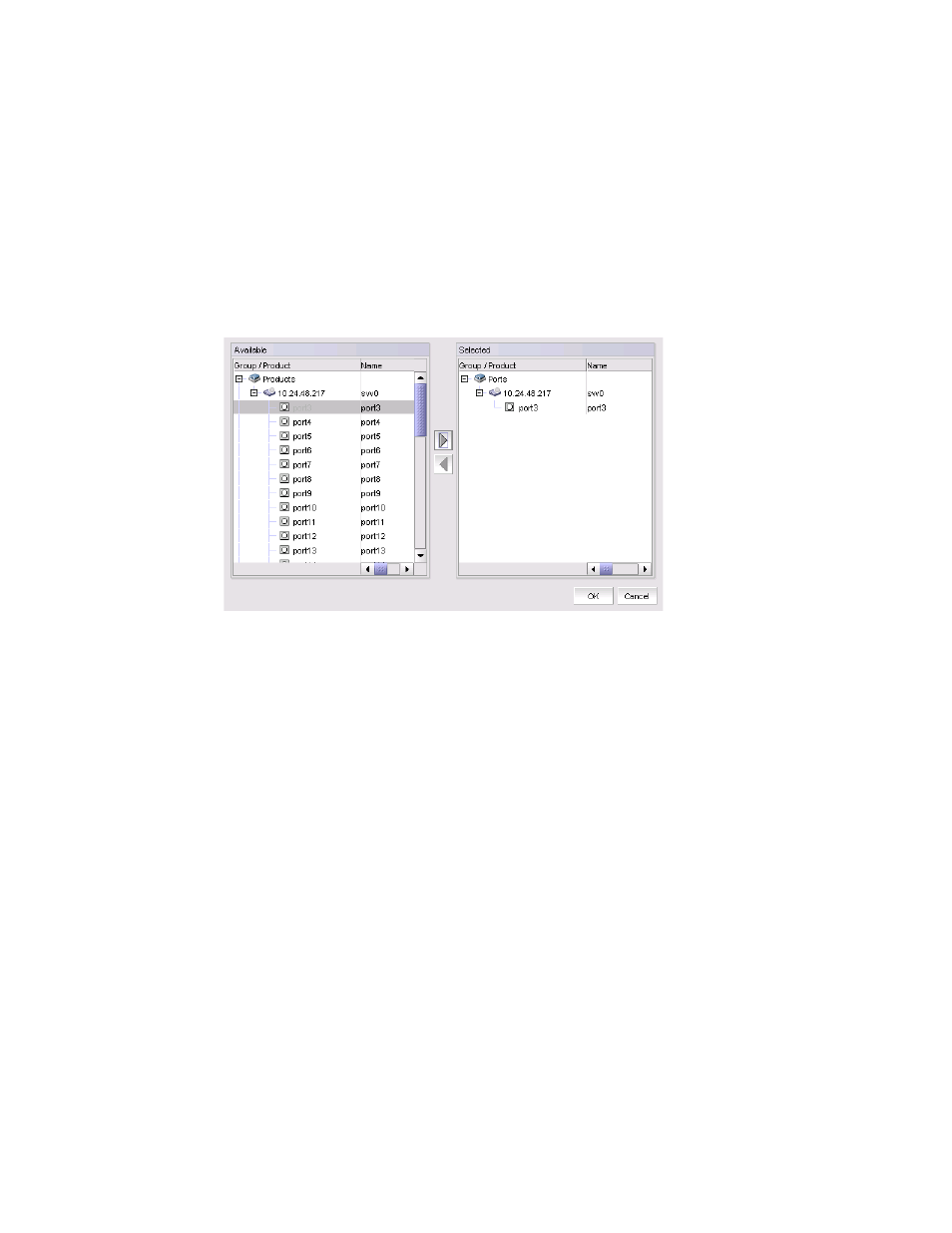

FIGURE 792
Select Mirror Port dialog box
2. Select a switch port in the Available list and click the right arrow to move to the Selected list.
Move the switch port back to the Available list by clicking the left arrow.
3. Click OK on the Select Mirror Port dialog box.
The selected port displays in the Mirror Port field.
