LDAP server configuration
13

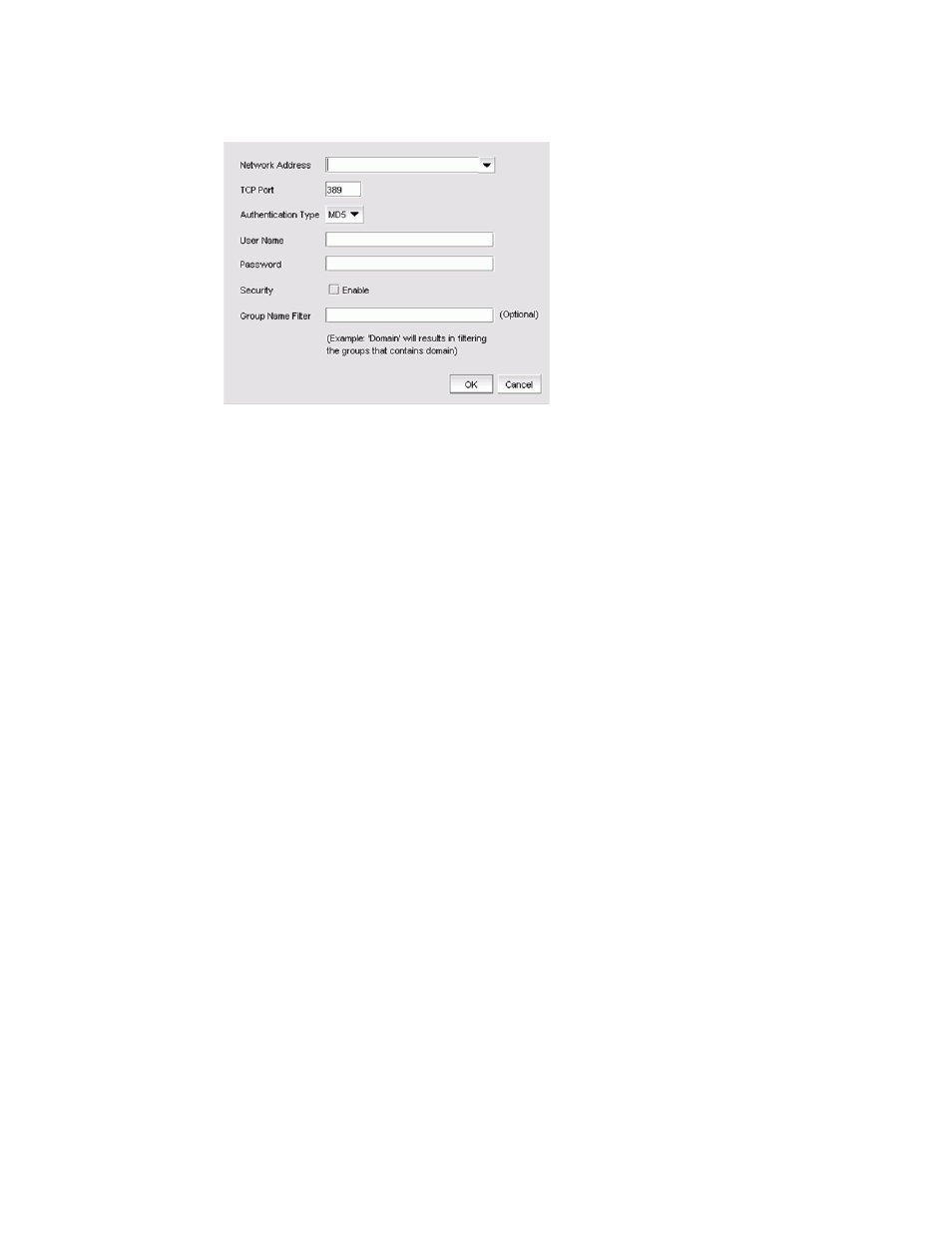

FIGURE 250
Fetch AD Group dialog box
4. Select the LDAP server network address from the Network Address list.
5. Enter the TCP port number in the TCP Port field, if necessary.
The default TCP port number is 389 if security is not enabled. The default TCP port number is
636 if security is enabled.
6. Select the authentication protocol MD5 from the Authentication Type list.
7. Enter your LDAP server user login name in the User Name field.
8. Enter your LDAP server user login password in the Password field.
9. Select the Security Enable check box to enable the security channel between the Management
application server and the LDAP server.
When you enable security, the TCP port number automatically changes to port 636 and you
must enable certificate services on the LDAP server.
10. (Optional) Enter the group name in the Group Name Filter field.
You can specify the group name in the following formats:
•
User, Domain - Will fetch the group name that contains the user or the operator.
•
User*, Domain - Will fetch the group name that starts with the user and contains the
operator.
•
User, *Domain - Will fetch the group name that starts with the user and ends with the
operator.
•
*User*, Domain - Will fetch the group name that contains the user or the operator.
11. Click OK.
The Active Directory Groups table displays with all AD groups available in the specified LDAP
server, as well as any AD groups already mapped in the Management application server (local
database).
To assign or remove roles and AORs, refer to
“Assigning roles and AORs to an AD group”
“Removing roles and AORs from an AD group”
12. Click Close to close the Users dialog box.
