Ftp/scp/sftp server settings – Brocade Network Advisor SAN + IP User Manual v12.3.0 User Manual
Page 287
Brocade Network Advisor SAN + IP User Manual
217
53-1003155-01
Software Configuration
5

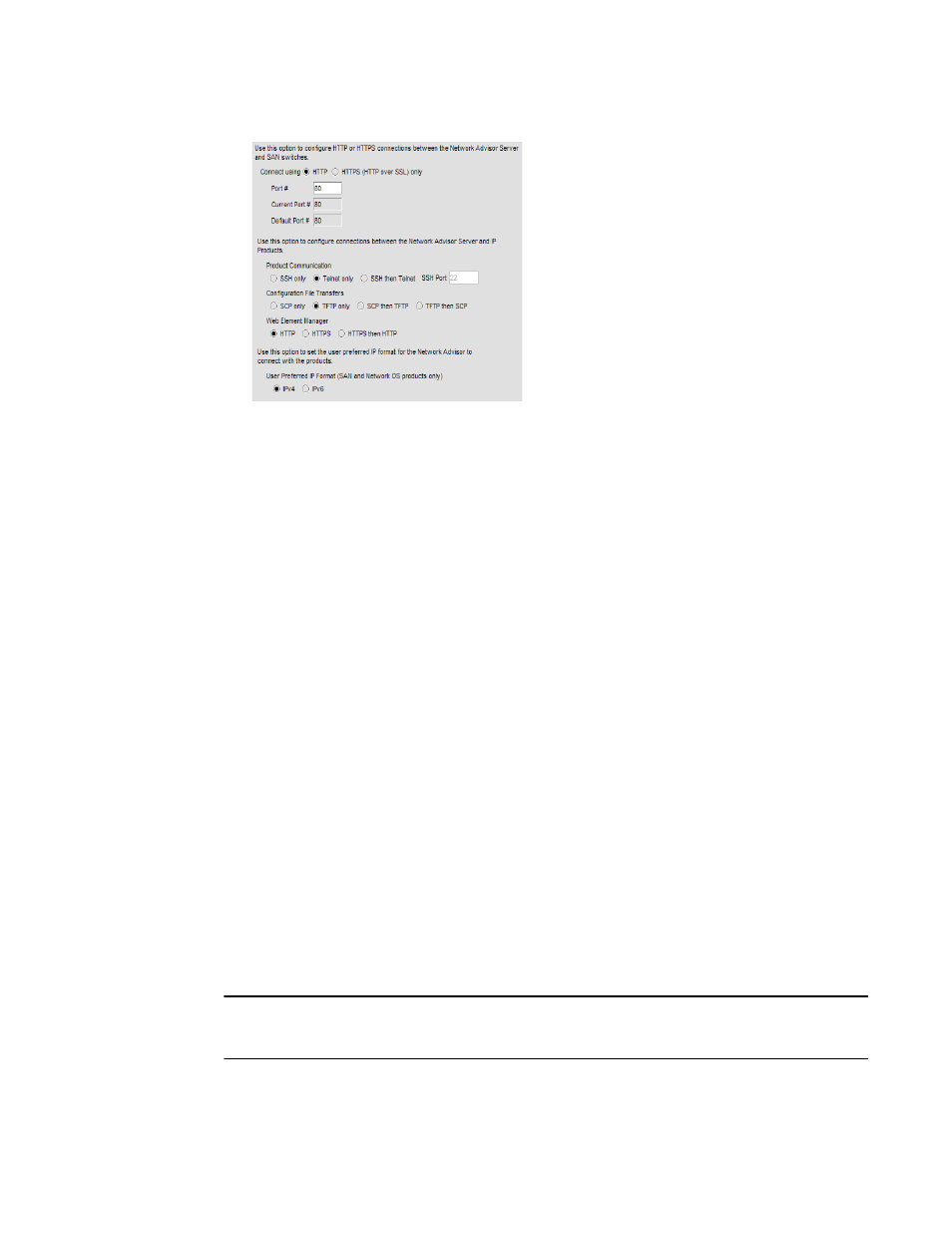

FIGURE 83
Options dialog box (Product Communication pane)
3. To connect to products using SSH, complete the following steps.
a. Select the SSH only option.
b. Enter the connection port number in the SSH Port field. Go to
The default SSH port number is 22.
4. To connect to products using Telnet, select the Telnet only option. Go to
.
5. To connect to products using SSH then Telnet, complete the following steps.
a. Select the SSH then Telnet option.
b. Enter the connection port number in the SSH Port field. Continue with
6. Select one of the following options to determine configuration file transfer communication:
•
SCP only
•
TFTP only
•
SCP then TFTP
•
TFTP then SCP
7. Select one of the following options to configure the web element manager communication:
•
HTTP
•
HTTPS (HTTP over SSL)
•
HTTPS then HTTP
8. Click Apply or OK to save your work.
FTP/SCP/SFTP server settings
NOTE
For FIPS-enabled Fabric OS switches, you must configure the FTP/SCP/SFTP server communication
to an external SCP server to download firmware and allow technical support.
