5. Click Close on the MAPS Configuration dialog box.

Comparing MAPS policies

You can compare any two policies across a fabric at a time. To compare MAPS policies, complete
the following steps.

1. Right-click a device in the Product List or Connectivity Map and select Fabric Vision > MAPS >

Configure.

The MAPS Configuration dialog box displays.

2. Select two policies across the fabric that you want to compare and click Compare.

The Compare dialog box displays.

trfgt

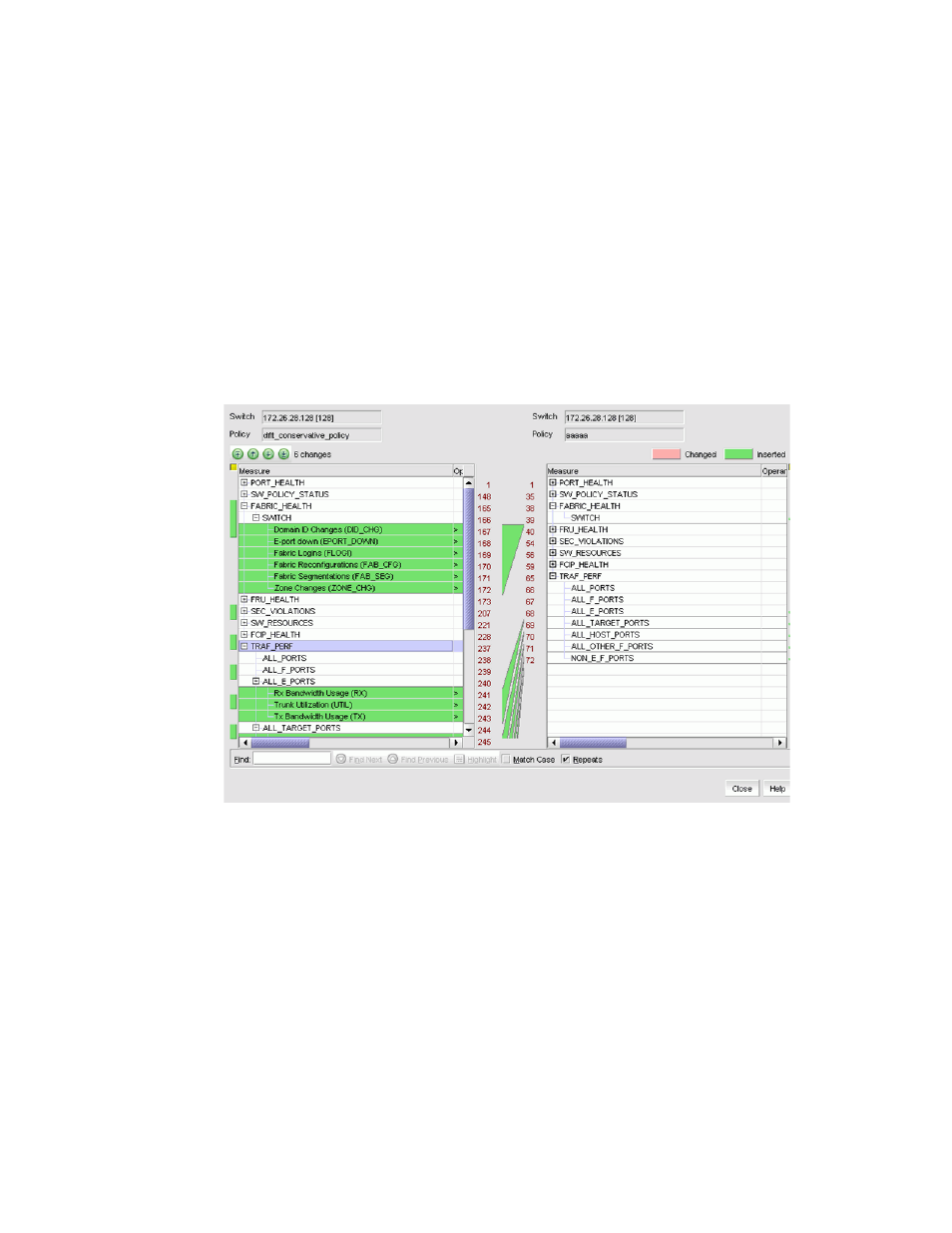

FIGURE 889

Compare MAPS dialog box

The Compare dialog box displays the following information:

Switch - Displays the switch containing the selected policy.

Policy -Displays the name of the selected policy.

Change Navigator buttons - These buttons help to navigate between the differences in the
policy contents.

Differences Legend - Displays the color legend for differences in policy contents.

-

Changed status displays in peach - When the rule is present in the other policy with
differences in a few values.

-

Inserted status displays in green - When the rule is not present in the other policy.

Find tool bar - Displays the text entered for the selected policy.

3. Click Close.
