VRF management
31
VRF management
The IP Element Manager supports Virtual Routing and Forwarding (VRF) for MLX devices only. The
VRF management is supported on the MLX Element Manager using the CLI Configuration Manager.
When you launch the VRF dialog, the existing VRF configuration for the selected MLX device is
displayed.
Configuring VRF in an MLX device
1. Click the Configure icon in the Element Manager toolbar.
2. Select VRF (as shown in
).

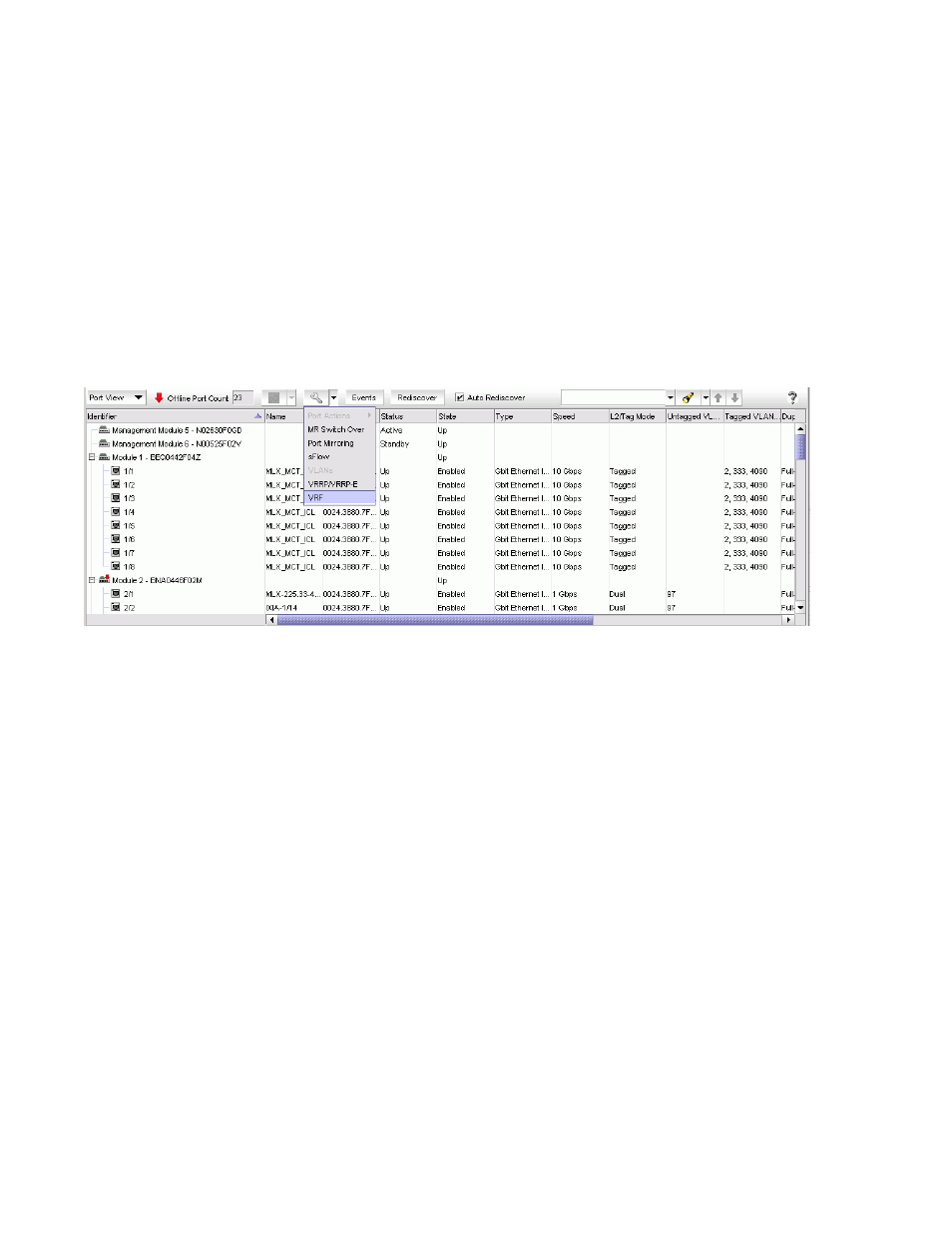

FIGURE 603
Selecting VRF
The Manage VRF dialog box is displayed (as shown in
).The Manage VRF dialog box
provides the following buttons to perform various functions.
-
Add — Adds VRF in the MLX device.
-
Delete — Deletes VRF in the MLX device.
