OneCommand NIC Teaming and VLAN Manager User Manual P009415-01A Rev. A
3. Using the OneCommand NIC Teaming and VLAN Manager
Viewing General Information
757
Viewing General Information
Information is displayed in two ways on a General tab.

If you have a team group, adapter group, or VLAN group selected in the
discovery-tree, a General tab shows a listing of that item.

If you double-click on an item in the General tab’s listing, the General
Information for that item is displayed in its General tab.
For example, select the Available Adapters icon to show an adapter listing on the
General tab. Double-click an adapter in this list to show another General tab with port
properties and connection properties, as well as IP addresses.
Viewing General Information for the Host Computer
Click OneCommand NIC Teaming and VLAN Manager from the Windows start
menu.

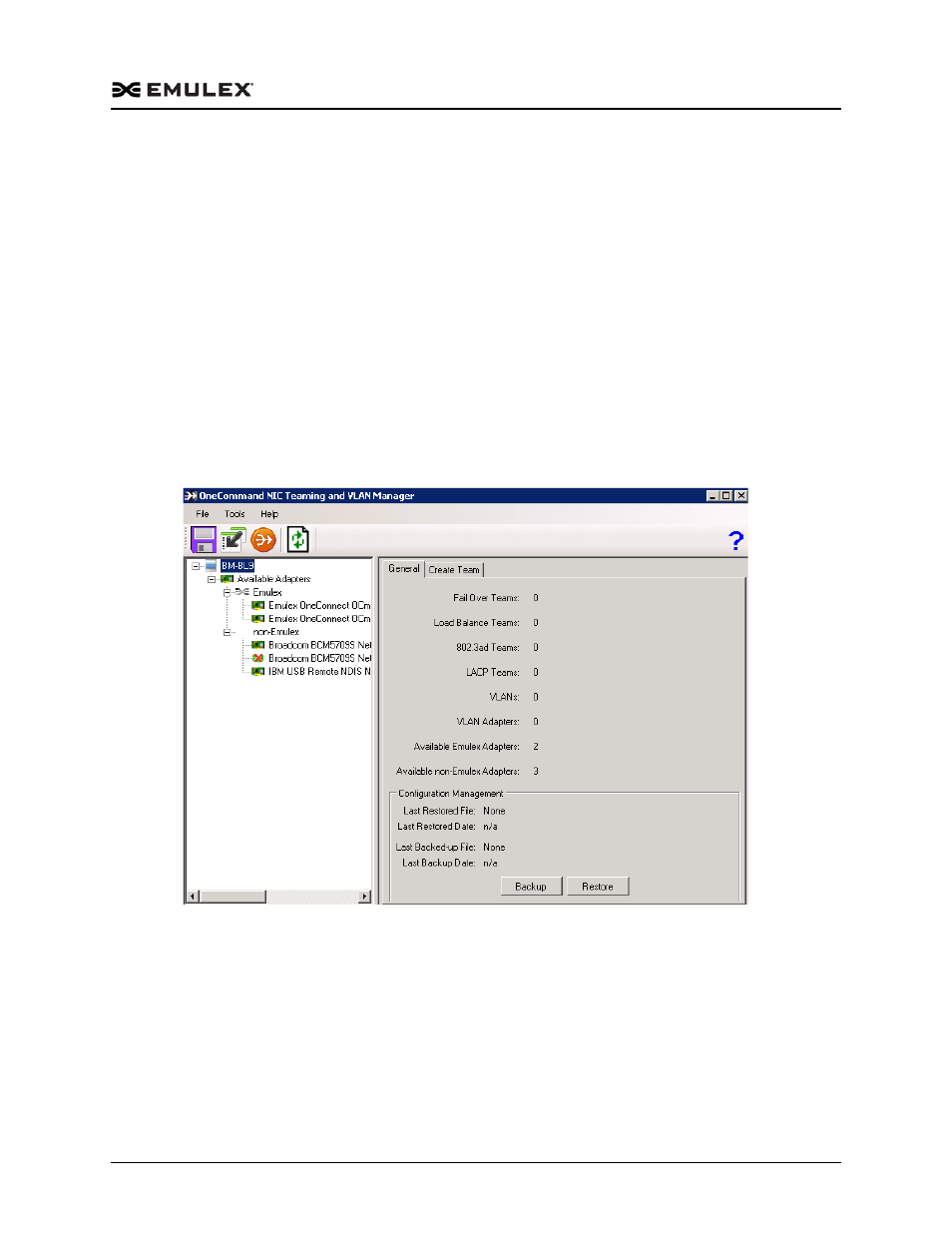

Figure 3-3 General Tab Information for a Host Computer
General Tab for the Host Computer - Field Definitions

The number of teams for each team type.

The number of VLAN adapters.

The number of VLANs.

The number of available adapters, both Emulex and non-Emulex.
