Dell Emulex Family of Adapters - Manual (Page 281)

OneCommand™ Manager Application P010066-01A Rev. A
13. Diagnostics
OneConnect Diagnostics
281
After writing an entry into the log, you are prompted to clear the display. The default
name of the saved file is DiagTest.log. An example of a saved log file appears below:

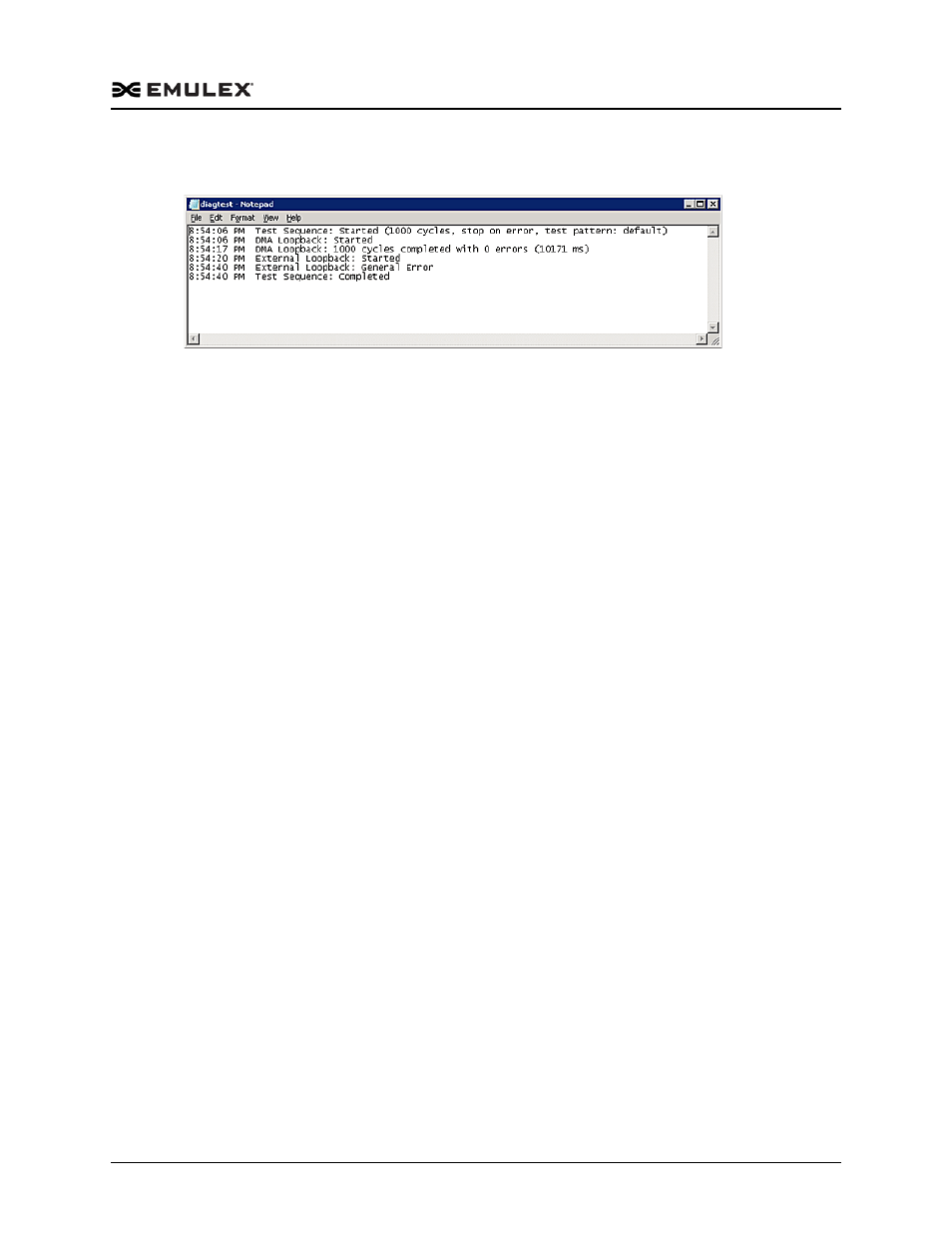

Figure 13-17 Example of a DiagTest.log Window
To save the log file:
1. After running a test from the Diagnostic tab, click Save Test Log. The Diagnostic
Test Log dialog box appears. The default name of a saved file is DiagTest.log.
2. Browse to the desired directory, change the log file name if you want and click Save
to file.
