Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
11. Configuring UEFI for Ethernet
Starting the Emulex NIC Configuration Utility
1646

RHEL 6.4 and newer versions

SLES 11 SP2 and newer versions

ESXi 5.0 and newer versions

The application management tools, including the OneCommand Manager
application must support ARI.

ARI must be enabled in the firmware using the OneCommand Manager
application.
If these conditions are not met, you may be able to configure more than eight functions,
but only up to eight functions will be running and discovered after a reboot.
Viewing the Configuration
To view the current multichannel configuration:
1. On the Controller Configuration screen, select View Configuration and press
. The View Configuration screen appears.

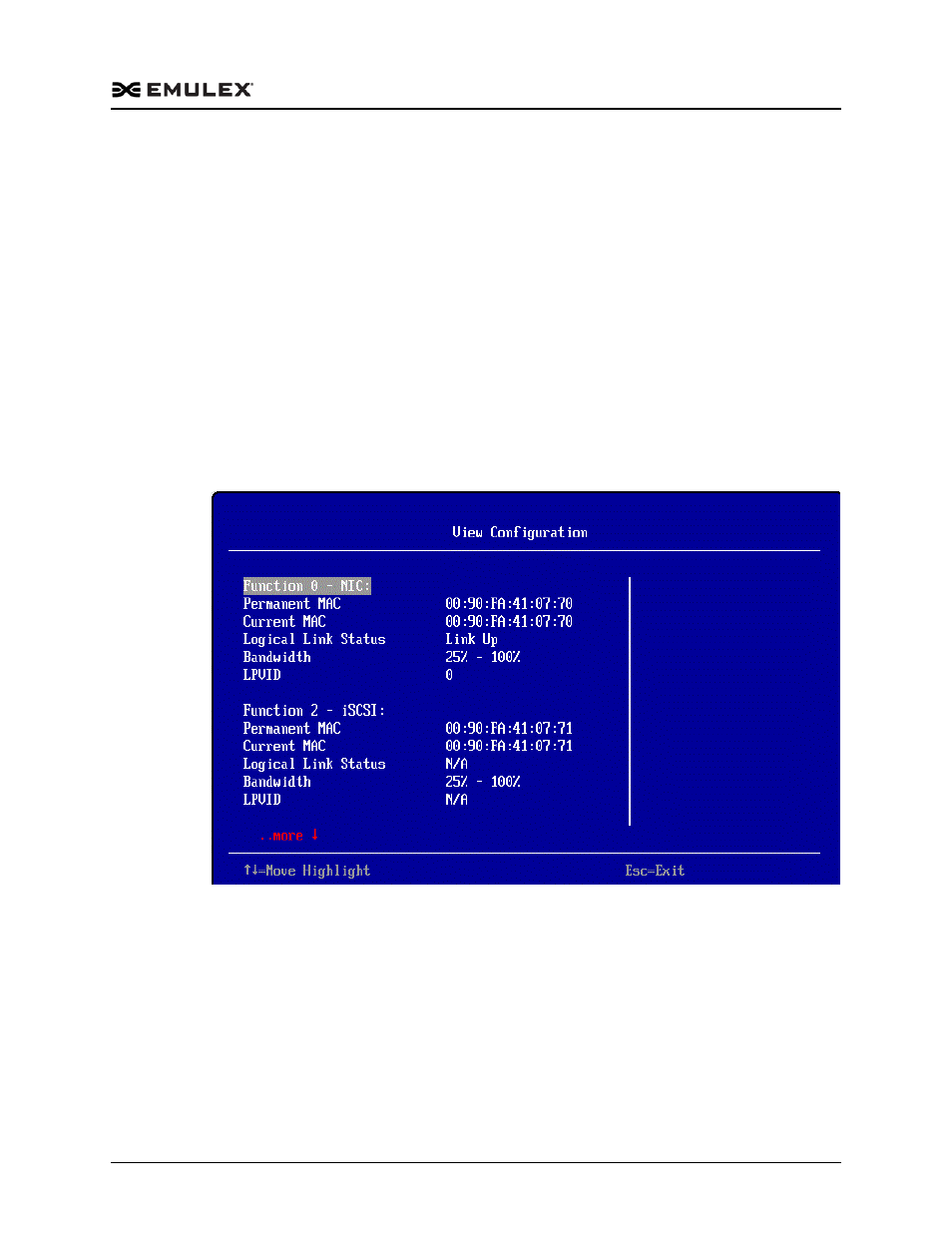

Figure 11-15 Multichannel Configuration for Function 0 Screen
From the View Configuration screen, you can view information for that specific
function, including the permanent and current MAC addresses, the logical link
status, the minimum and maximum bandwidth settings, and LPVID of all of the
NIC functions.
Note: Logical Link Status and LPVID for storage functions (iSCSI and FCoE)
display as “N/A”.
2. When you are finished viewing the configurations, press to return to the
Controller Configuration screen.
