3. Using the OneCommand NIC Teaming and VLAN Manager
OneCommand NIC Teaming and VLAN Manager Element Definitions
756
Help button

Displays OneCommand NIC Teaming and VLAN Manager online help.
Discovery-Tree
The discovery-tree (left pane) has icons that represent the host machine, teams, and
adapters.

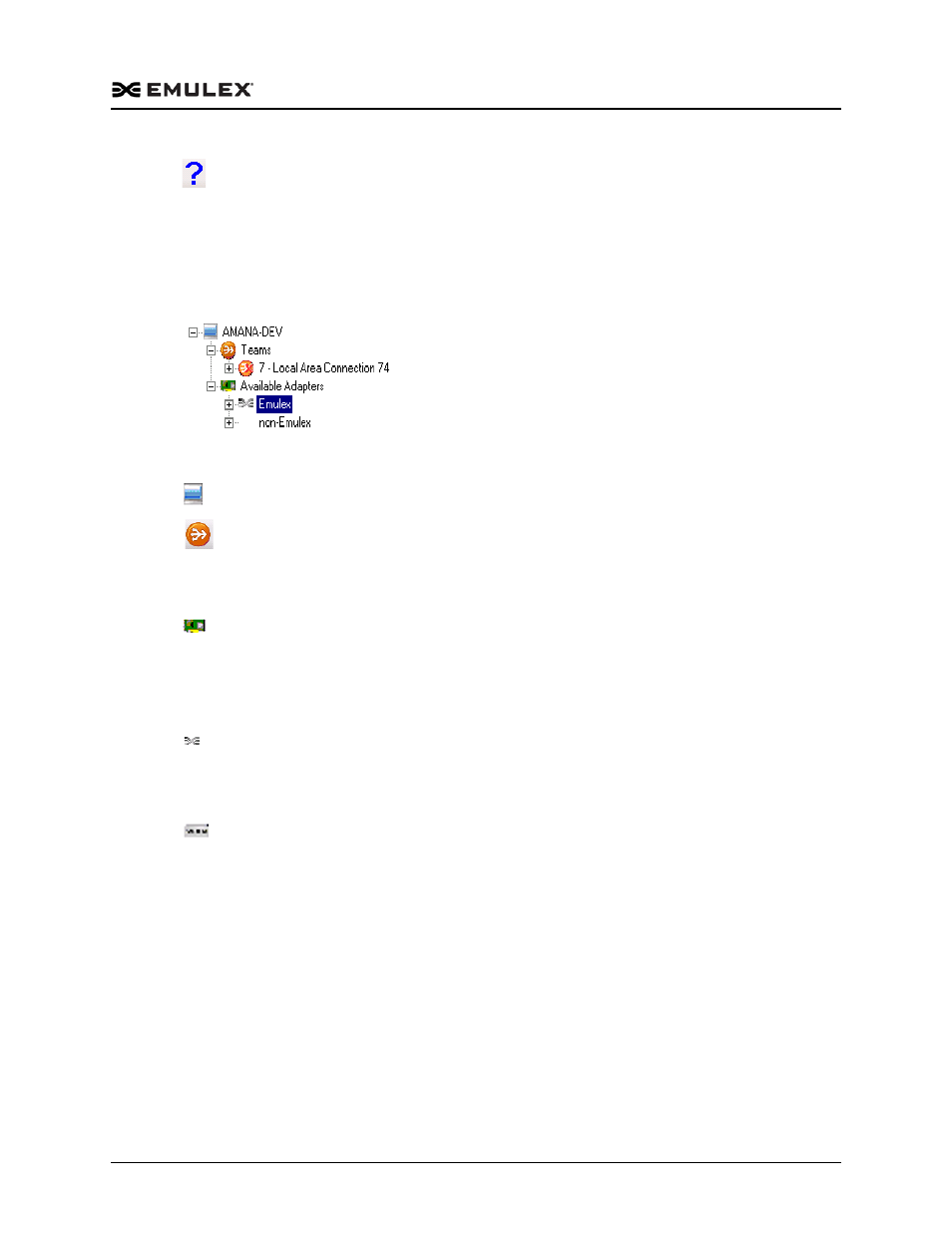

Figure 3-2 The Discovery-Tree
Host Computer
Team Icon — This icon can represent one of the following:

A list of team adapters

An individual team
Adapter Icon — This icon can represent one of the following:

A list of available adapters.

An individual available adapter

An individual adapter that is part of a team.
Emulex Adapter Icon — This icon can represent one of the following:

A list of available Emulex adapters

An individual Emulex adapter
VLANs Icon — This icon can represent one of the following:

A list of VLANs

An individual VLAN
