OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
FC/FCoE
156
6. Click Save. The Save Driver Parameters dialog box appears. You can save the file to
a different directory or change its name.

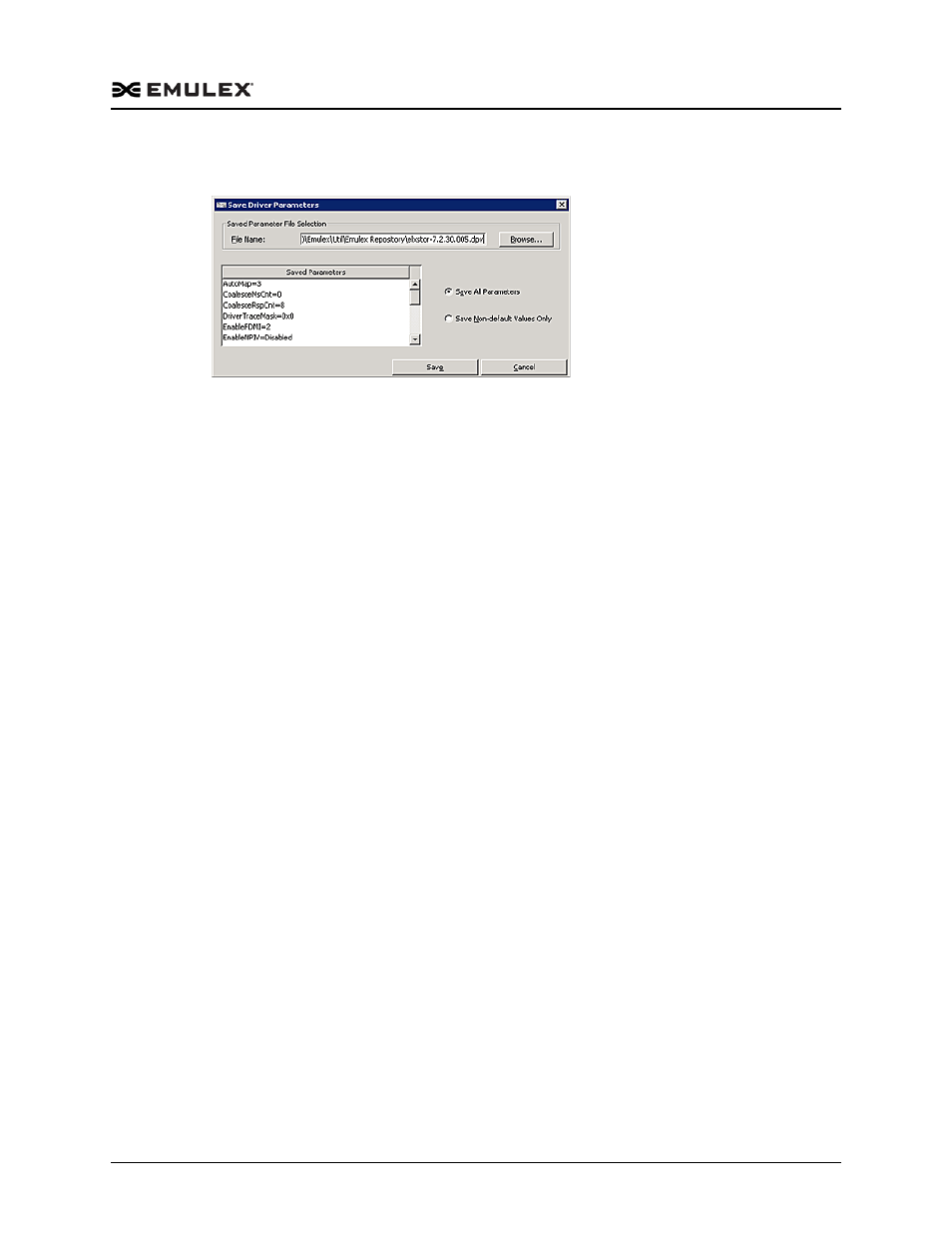

Figure 8-29 Save Driver Parameters Dialog Box
7. Use the two radio buttons to choose the type of parameters to save. You can save all
parameters or only those parameters whose current values differ from their
corresponding default values.
A list of the saved parameters and their current values show in the Saved
Parameters box.
8. Click Save.
Assigning Batch Mode Parameters
To assign batch mode parameters to adapters:
1. From the Batch menu, select Update Driver Parameters. (You do not need to select
any discovery-tree elements at this time.)
2. When the Batch Driver Parameter Update dialog box appears, click Browse.
3. The Driver Parameter File Selection dialog box appears. Select the file you want to
use and click OK. A dialog box appears notifying you that the OneCommand
Manager application is searching for compatible adapters.
Once compatible adapters are found, the Driver Parameter File field of the Batch
Driver Parameter Update dialog box displays the selected file's path. The
“Supported Models” text field displays a list of all adapter models that are
compatible with the selected file. The set of compatible adapters appears in the
dialog box’s discovery-tree.
Using the Display Options settings you can choose how adapters are displayed in
the discovery-tree. Clicking Group by Host displays adapters in a host-centric
view. Clicking Group by Fabric shows hosts in a fabric-centric view with their
fabric addresses. The WWPN and host name for each downloadable port is
displayed under its respective fabric.
You can also display host groups by checking Show Host Groups. To display a
particular host group, choose that group from the Host Group menu.
