3. Configuring PXE Boot for NIC on OCe14000-series Adapters
Using the PXESelect Utility
1553
PXE Install OS
PXE Server configured with VLAN 5
PXE VLAN=5
LPVID for function 0=5
To configure LPVID:
1. On the Configure Channel screen, use the use the up or down arrow keys to select
LPVID.
2. Use the left or right arrow keys to select the desired LPVID value. The LPVID range
is 2-4094. A value of 0 disables the LPVID.
3. Press to save.
Configuring Multichannel for IBM Adapters
Note: This section only pertains to certain Emulex OneConnect adapters that support
IBM Virtual Fabric multichannel or Unified Fabric Protocol.
When you want to enable multichannel on IBM adapters, you must select a
Multichannel Mode.
To select the Multichannel Mode:
1. From the Controller Configuration screen, use the up or down arrow keys to select
the Multichannel Mode setting.

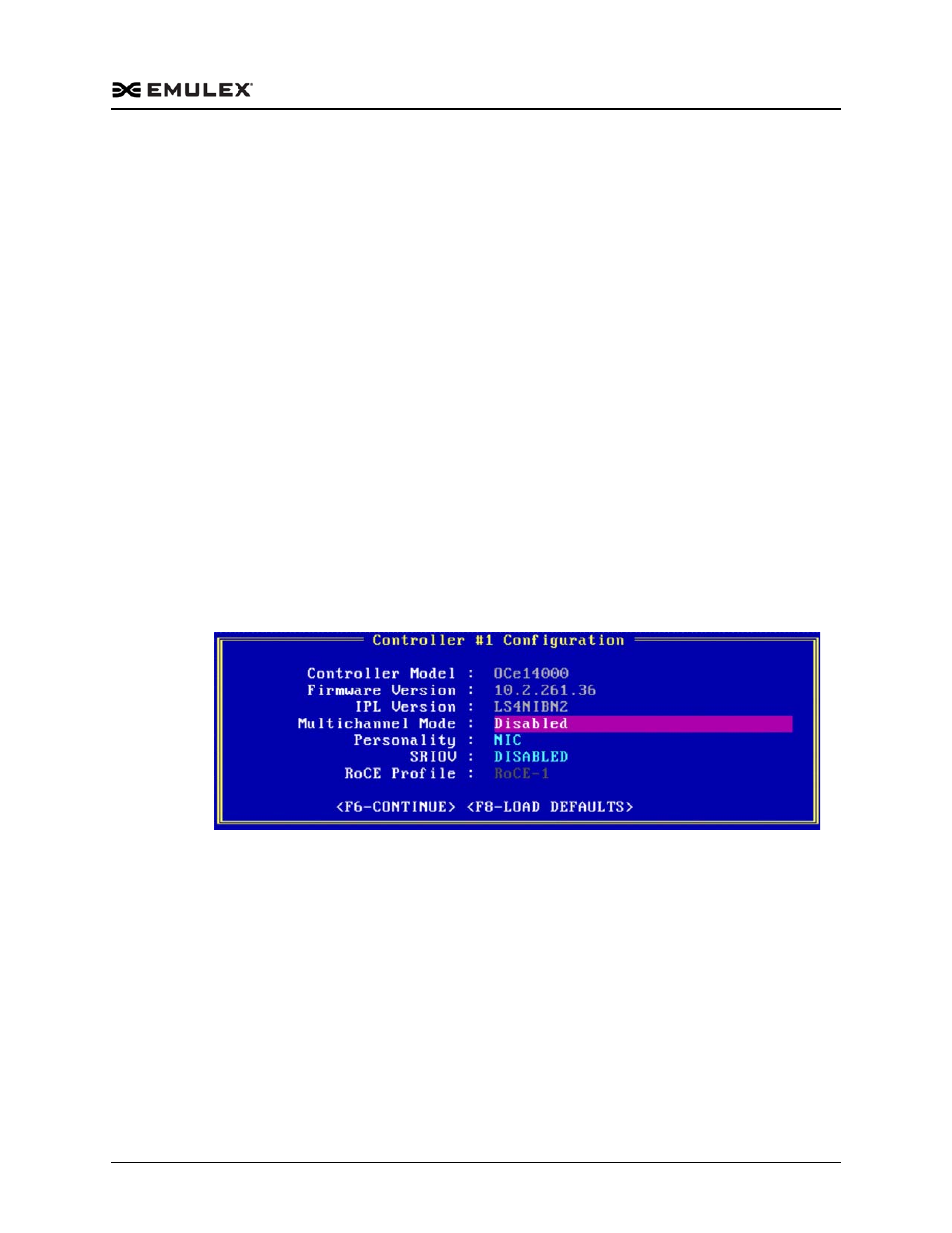

Figure 3-17 Controller Configuration Screen - IBM Adapters
2. Use the left or right arrow keys to select one of the following settings and press
:

Switch Independent Mode

IBM Virtual Fabric Mode

IBM Unified Fabric Protocol Mode

Disabled
Note: For more information on the available Multichannel Modes, see
“Multichannel Modes”.
3. Press to proceed.
