6. Managing Adapters and Ports
OCe14100–Series Adapters
1284

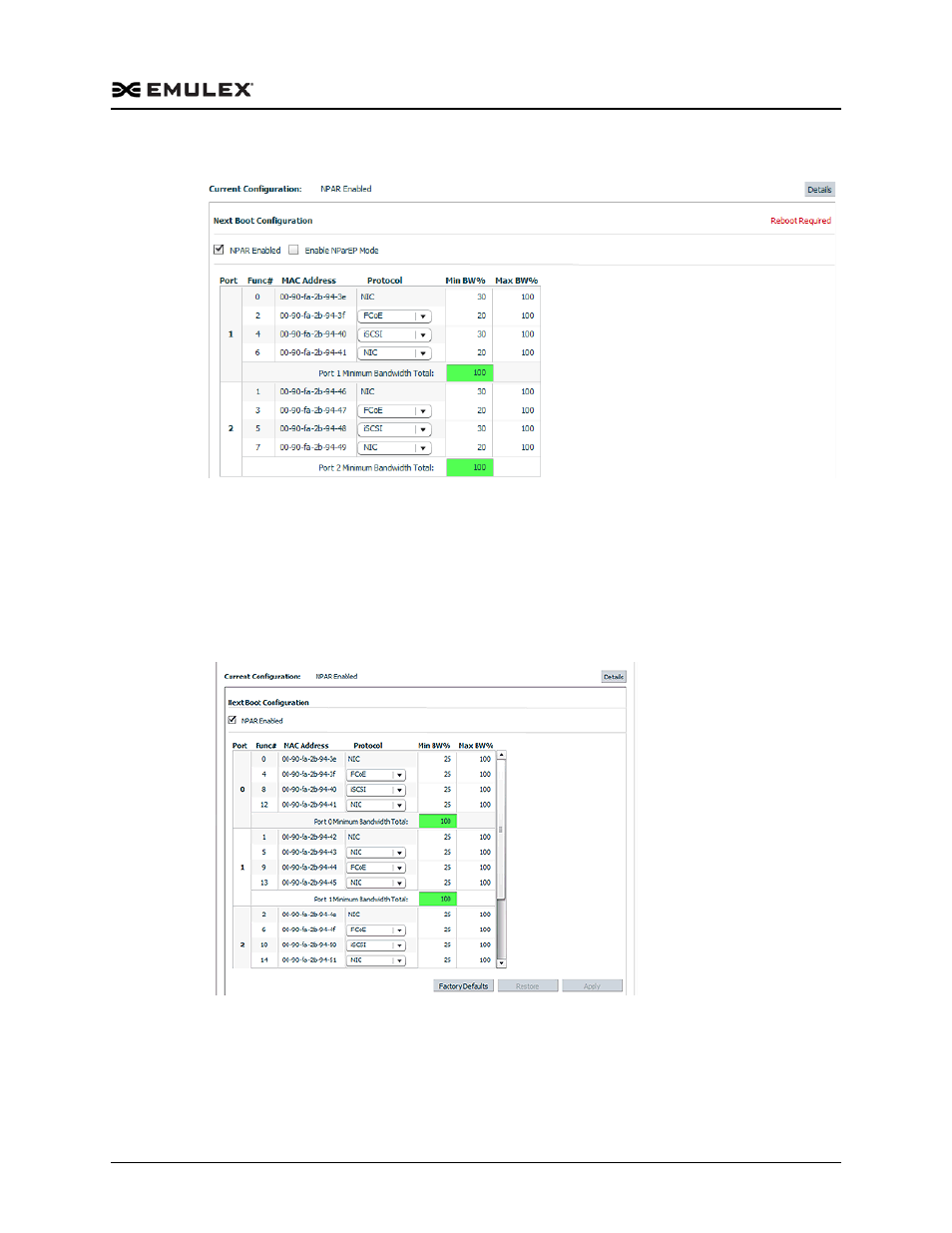

Figure 6-66 Dell Two Port NPar Configuration, NParEP Mode Disabled
If the NParEP Mode check box is cleared (disabled), only four partitions per port can be
configured. FCoE, iSCSI or None can be configured on the second through fourth
partitions, but only one FCoE and one iSCSI can be configured. None cannot be
configured on the first partition.
NParEP Mode Enabled
Figure 6-67 Dell Two Port NPar Configuration, NParEP Mode Enabled
If the NParEP Mode check box is selected (enabled), up to eight partitions per port can
be configured. FCoE or iSCSI can be configured on the second through fourth
partitions, but only one FCoE and one iSCSI can be configured. Partitions higher than
the fourth partition can only configured for NIC or None. None cannot be configured
on the first partition.
