OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
OCe10100–Series and OCe11100–Series Adapters
1257
Notes

You must reboot the host for channel management to activate.

When the channel management mode in the Adapter Information tab is set to
None, the Channel Mgmt tab is not displayed.
Configuring Channel Management for OCe11100–Series
Adapters
When you select an OCe11102 adapter port with channel management enabled, the
Channel Mgmt tab is available.
Note: The Channel Mgmt tab shows the settings for the configured channel
management mode after reboot. This may not match the mode that is currently
running on the adapter if you have changed the mode in the Adapter
Information tab, but have not rebooted.
To manage the ports for an OCe11102 adapter:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the adapter port for which you
want to manage channels.
3. Select the Channel Mgmt tab. The Channel Mgmt tab is displayed.

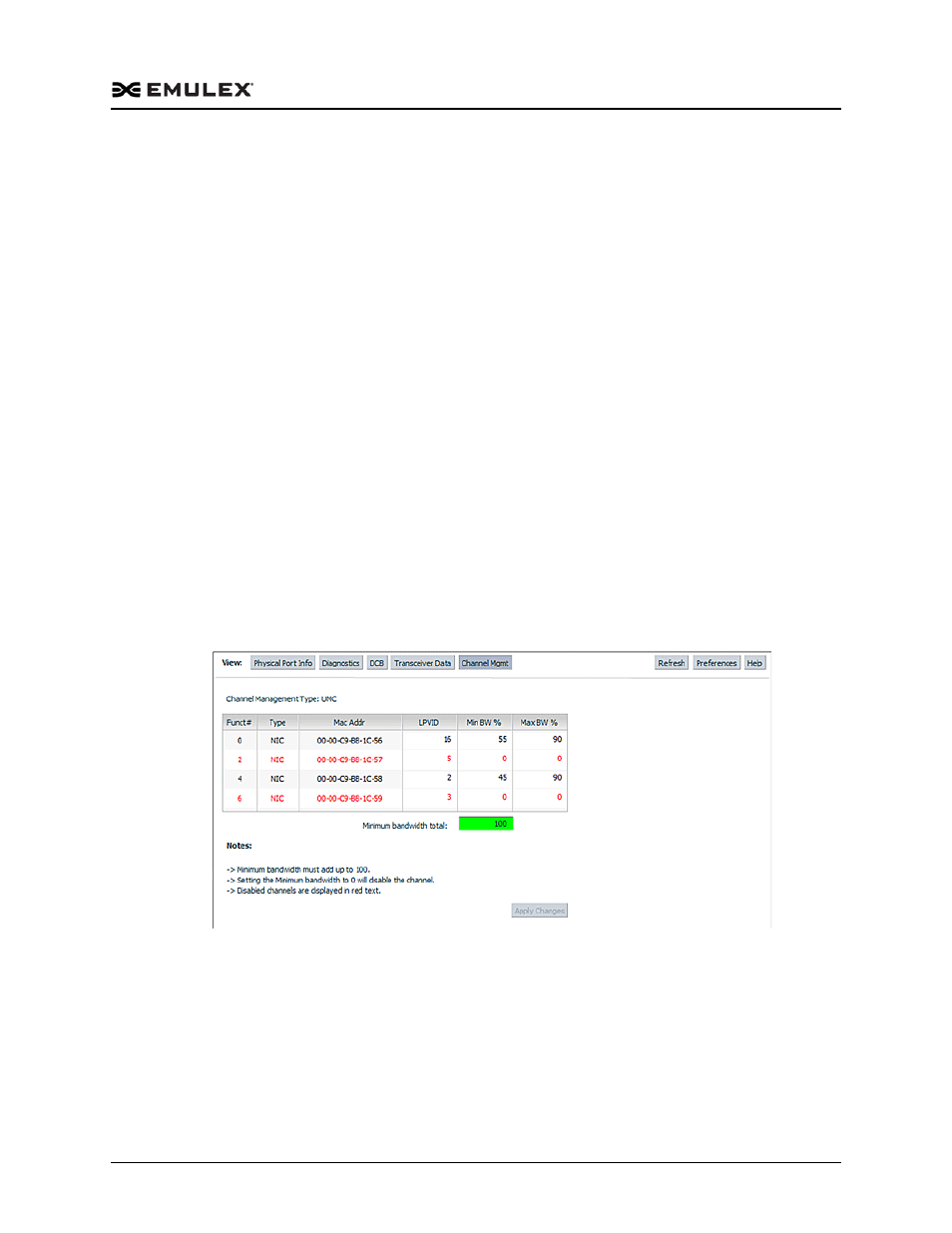

Figure 6-45 Channel Mgmt tab for the OCe11102 adapter
4. Make appropriate changes to the LPVID, Min BW%, and Max BW% values in
accordance with the guidelines that follow.
5. Click Apply. A reboot is not required.
Channel Mgmt Field Definitions

Channel Management Type – Channel management protocol type in use.

Funct# – Function number used to identify a specific channel.
