OneCommand Manager for VMware vCenter Version 10.2 User Manual

P010089-01A Rev. A

2. Installing and Uninstalling OneCommand Manager for VMware vCenter Components

Installing OneCommand Manager for VMware vCenter

1170

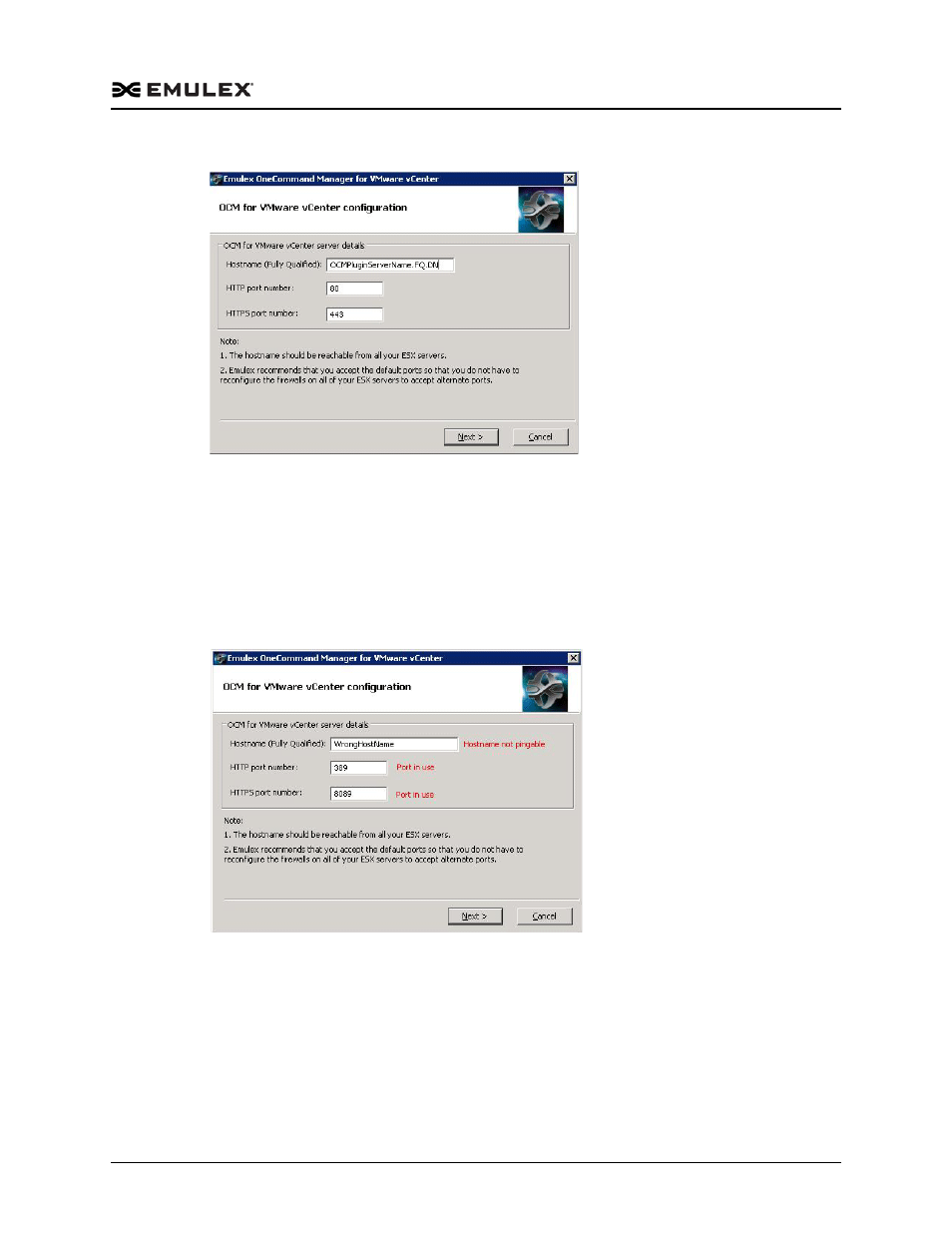

Figure 2-2 OCM for VMware vCenter Configuration Window

Default port numbers for OneCommand Manager for VMware vCenter server are

displayed.

Note: The Windows firewall setting must allow incoming connections on the

HTTP and HTTPS ports that you configure here.

If the port numbers are already in use, a warning appears next to the port number.

Figure 2-3 OCM for VMware vCenter Configuration Window with Port in Use Warning

9. Click Next. The Operation in progress screen appears. When the installation

process is complete a message prompts you to launch the registration utility.

10. Click Yes. The Register/Unregister dialog box appears in a new browser window.
