OneCommand™ Manager Application P010066-01A Rev. A
8. Managing Adapters and Ports
FC/FCoE
123
Virtual Port Information Field Definitions

Number of Hosts – The total number of hosts discovered in the SAN.

Number of Fabrics – The total number of fabrics discovered in the SAN.

Number of Adapters – The total number of adapters discovered in the SAN.

Number of Physical Ports – The total number of physical ports discovered in the
SAN.

Number of Virtual Ports – The total number of virtual ports discovered in the
SAN.
Viewing FC/FCoE Fabric Information
The Discovery Information tab contains information about the selected fabric.
To view fabric discovery information, do one of the following:

From the View menu, select Group Adapters by Fabric Address.

From the toolbar, click Group Adapters by Fabric Address.
The Discovery Information tab shows information about the fabric.

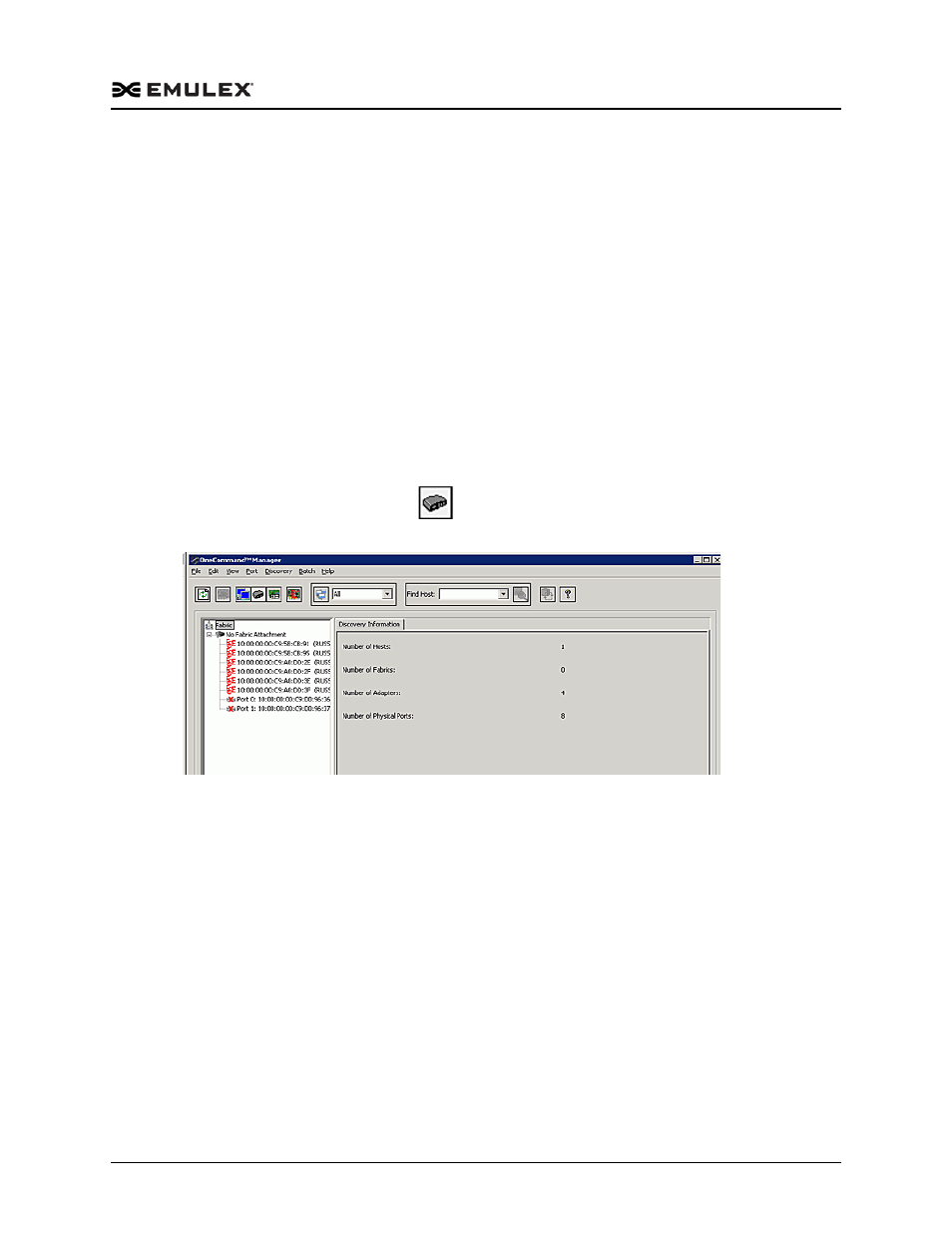

Figure 8-6 Fabric Discovery Information
Discovery Information Field Definitions

Number of Hosts – The number of hosts discovered or seen by this host on the
selected fabric.

Number of Fabrics – The number fabrics identified during discovery.

Number of Adapters – The number of adapters discovered by this host on the
selected fabric.

Number of Physical Ports – The number of discovered physical ports on this
host that can be managed by this host.
Viewing FC Transceiver Information
When you select an FC port from the discovery-tree, the Transceiver Data tab enables
you to view transceiver information such as vendor name, serial number, part number
