Appendix G. Configuring PXE Boot for NIC on Dell OCe10100-based Systems
Setting Up a PXE Bootable Network
1788
Configuring SR-IOV
If your system BIOS supports SR-IOV, you can enable it. For more information on
SR-IOV configuration, see the appropriate Emulex driver manual.
1. On the configuration screen, use the key to select the SR-IOV setting and a
pop-up menu appears.
2. Select Enabled or Disabled and press .
3. Select Save and press .
Configuring the PXE VLAN ID and Priority
To configure a PXE VLAN ID and set the priority level:
1. On the configuration screen, select Configure PXE VLAN ID/Priority and press
. The Configure PXE VLAN ID/Priority menu is displayed.

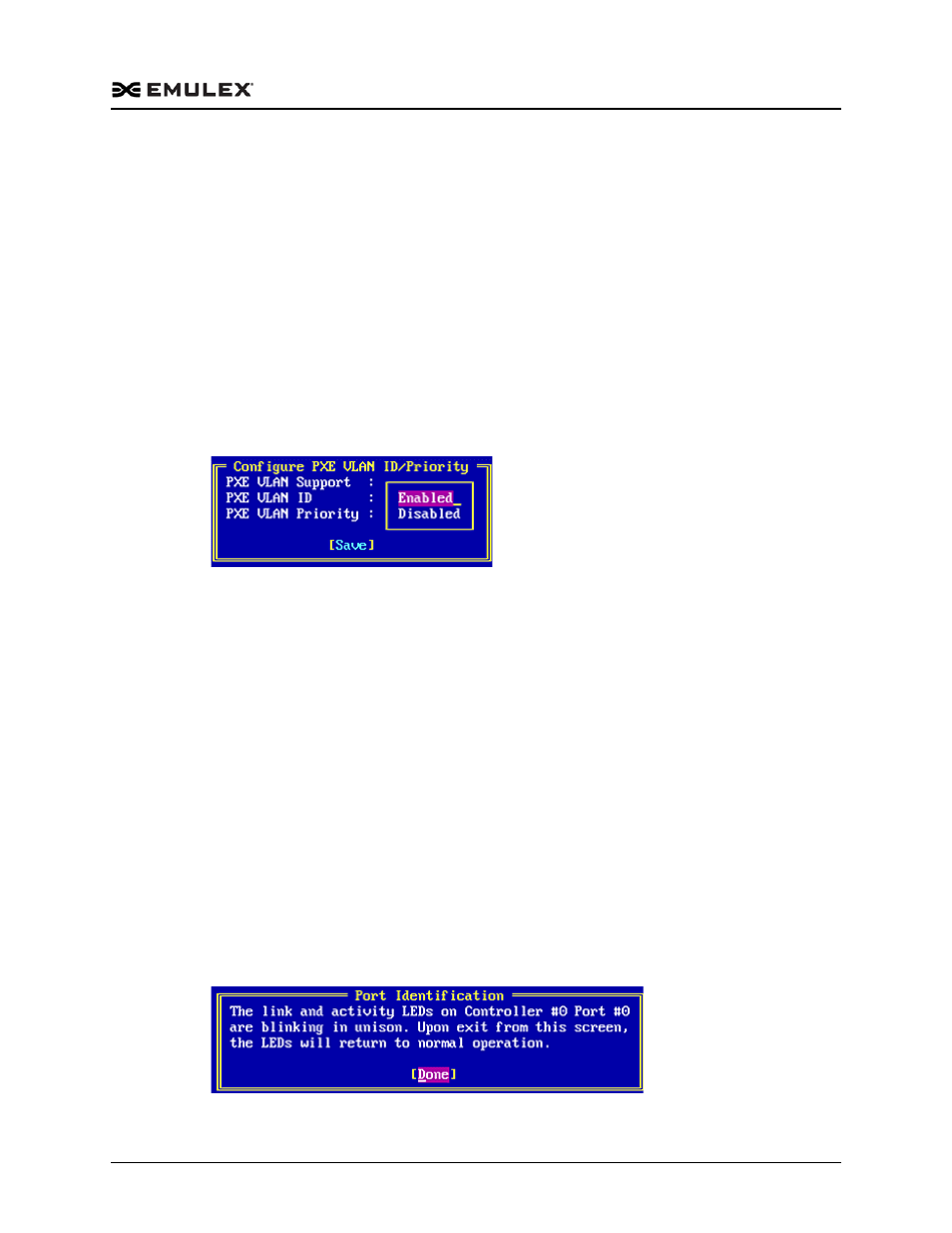

Figure G-4 Configure PXE VLAN ID/Priority Menu
2. Use the key to select the PXE VLAN Support setting and a pop-up menu
appears.
a. For PXE VLAN Support, select Enabled and press .
b. For the PXE VLAN ID, enter a number from 0-4094 and press .
c. For the PXE VLAN Priority level, enter a number from 0-7 and press .
This unique value assigns a priority to outbound packets containing a specified
VLAN ID. Valid values range from 0-7, with 0 the highest priority level.
3. Select Save and press .
After you exit the PXESelect utility, the system will reboot for the configuration to take
effect.
Physically Identifying the Port
To physically determine which port you are configuring by causing the link and
activity LEDs of that port to blink:
1. On the configuration screen, select Port Identification and press . The Port
Identification screen appears.
Figure G-5 Port Identification Screen
