Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
13. Configuring UEFI for FCoE
Configuring Adapter Parameters
1705
2. From the Emulex Adapter Configuration Main Menu (Figure 13-3), select
Configure HBA Parameters and press . The Configure HBA Parameters
screen is displayed.
3. From the Configure HBA Parameters screen, select PLOGI Retry Timer and press
. The PLOGI Retry Timer menu is displayed.

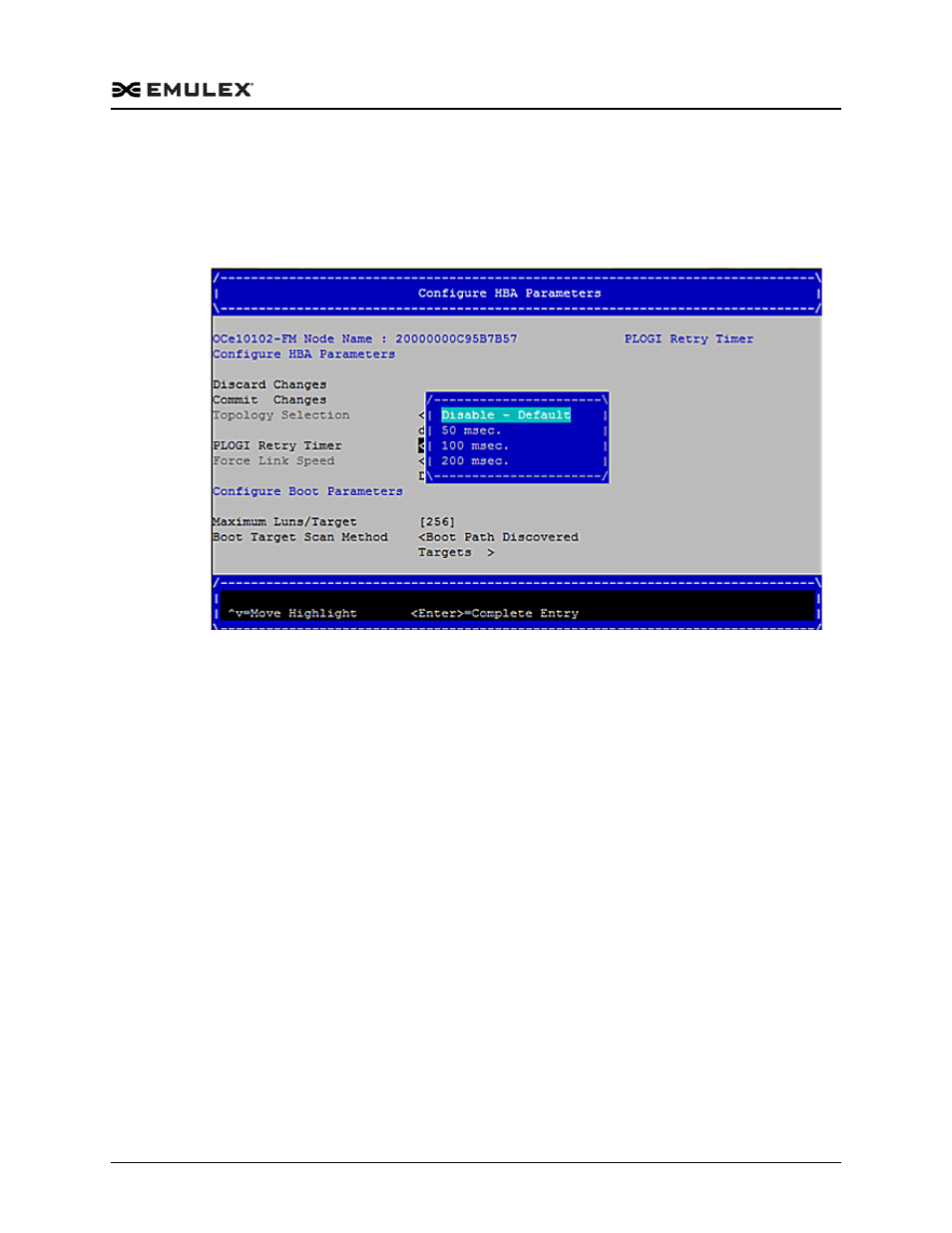

Figure 13-15 PLOGI Retry Timer
4. Select a retry timer option and press . The screen is refreshed with the
modified value.
Note: Press to return to the EFI utility menu.
5. Select Commit Changes and press . The Emulex Adapter Configuration
Main Menu is displayed.
Changing the Maximum LUNs per Target
The maximum number of LUNs represents the maximum number of LUNs that are
polled during device discovery. The minimum value is 1, the maximum value is 4096.
The default is 256.
To change the maximum number of LUNs:
1. From the Device Manager screen (Figure 13-2), select the adapter whose LUNs per
target information you want to change and press .
2. From the Emulex Adapter Configuration Main Menu (Figure 13-3), select
Configure HBA Parameters and press . The Configure HBA Parameters
screen is displayed.
