Concurrent Mode
When concurrent mode is available, up to three functions per port are configurable.

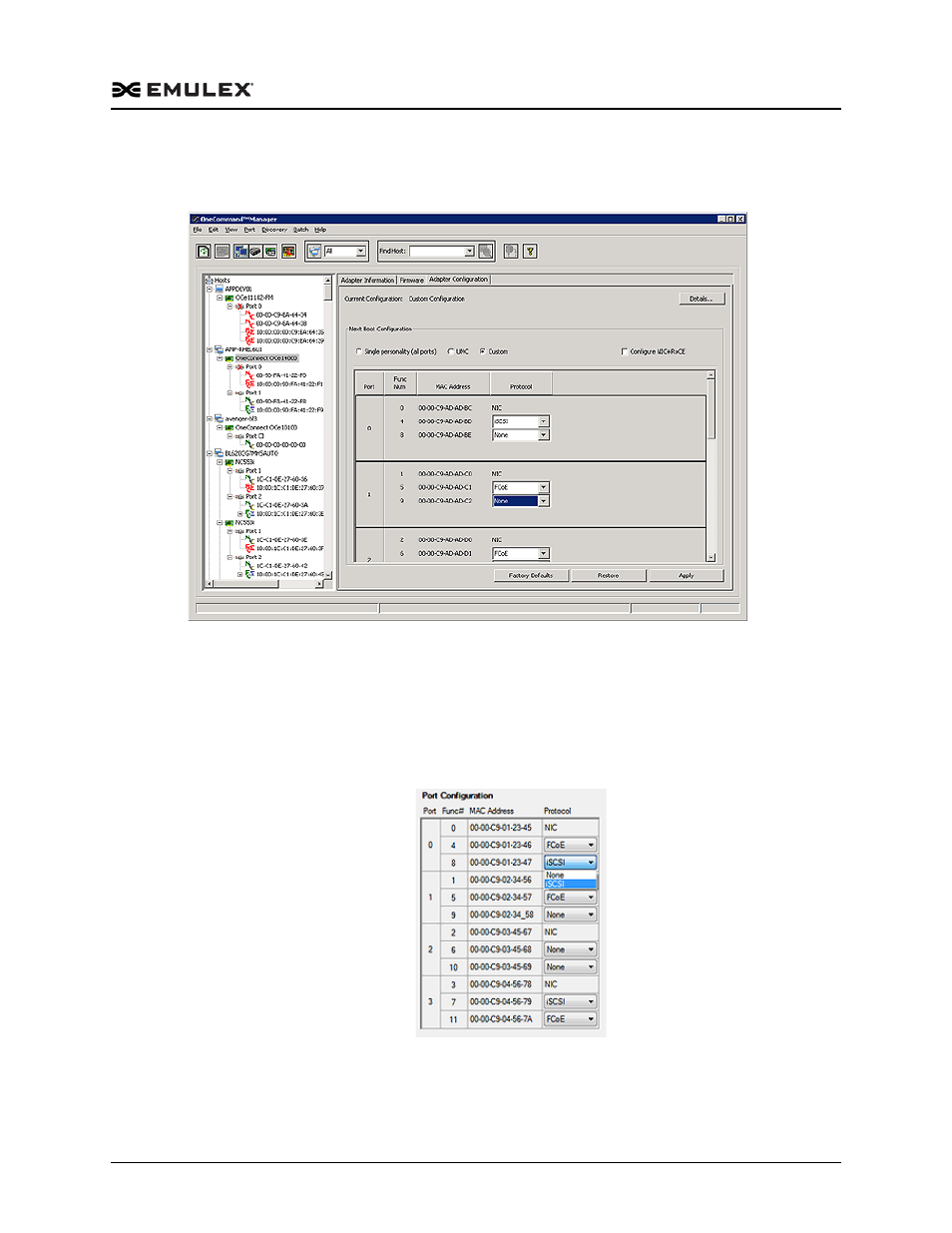

Figure 8-75 Concurrent Storage Configuration View
When configuring storage, the first function must be set to NIC. The pull-down menu
for selecting a storage protocol to run on the second and third functions is the same as
the pull-down menu for mixed mode storage. If two storage functions are configured
on a port, they must be different storage protocols (i.e. concurrent mode). When you
select the storage protocol for the second function, the choices in the pull-down menu
for the third function are limited to the other storage protocol or “None”.
Figure 8-76 Concurrent Storage Configuration Choices for the Third Function
Note: If you select the same protocol or “None” for all second functions on all ports
and “None” for all third functions, you essentially configured a single
