OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
Viewing and Managing FC/FCoE LUNs
1212
Viewing Flash Contents for an FC Port
To view the flash contents for an FC port:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the FC port whose Flash
contents you want to view.
3. Select the Flash Contents tab. The Flash Contents information pane appears.

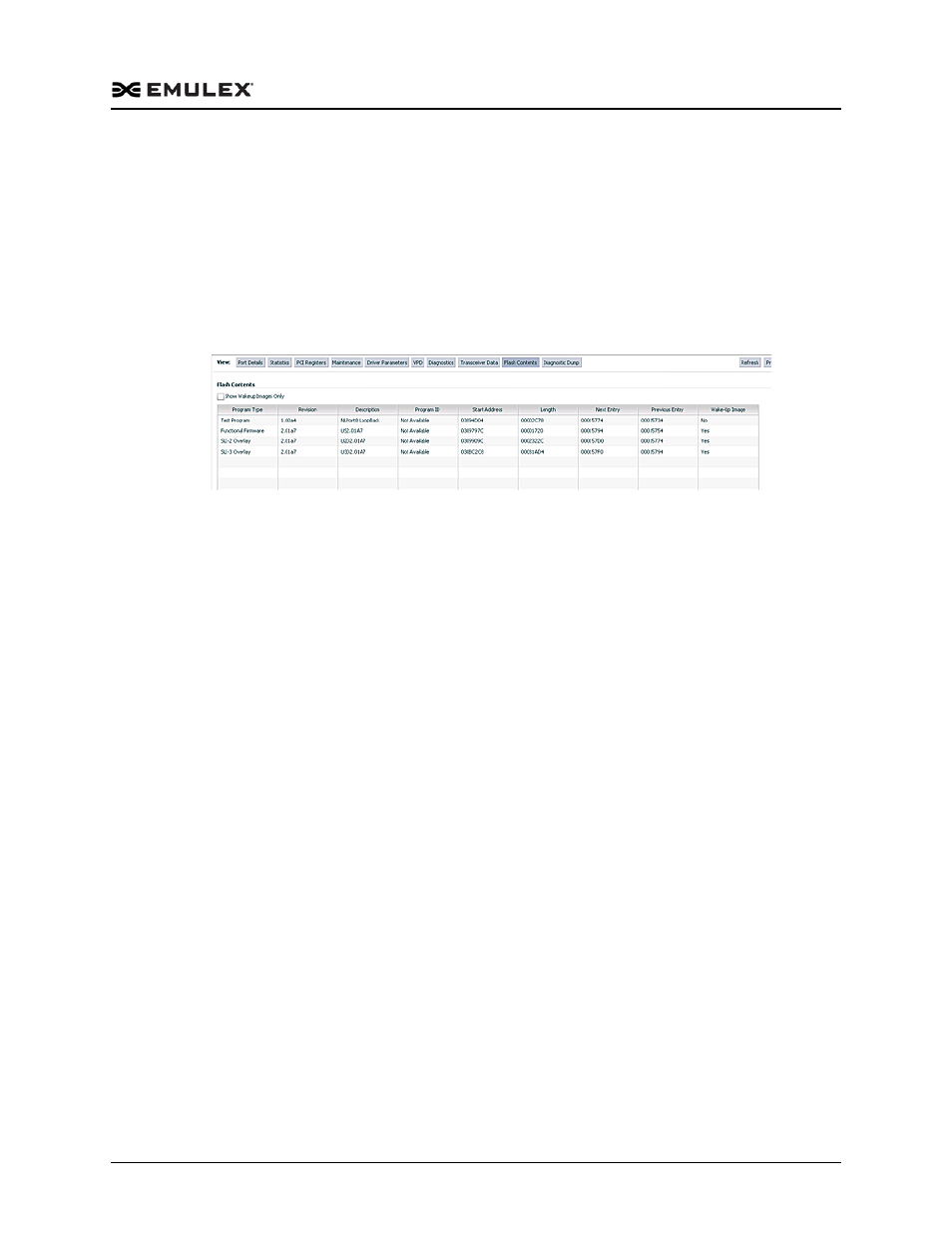

Figure 6-14 FC Port Flash Contents
4. Select the Show Wakeup Images Only checkbox if you want to see only the flash
contents with the wake-up images.
Viewing PCI Registers for an FCoE Port
The PCI Registers tab shows PCI information about the selected FCoE port.
To view PCI registers for an FCoE port:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the FCoE port for which you
want to view PCI information.
3. Select the PCI Registers tab.
