8. Managing Adapters and Ports
OCe14000-Series Adapters
223
UMC Configuration View
When UMC is available and the UMC radio button is selected, the Adapter
Configuration tab looks like the following:

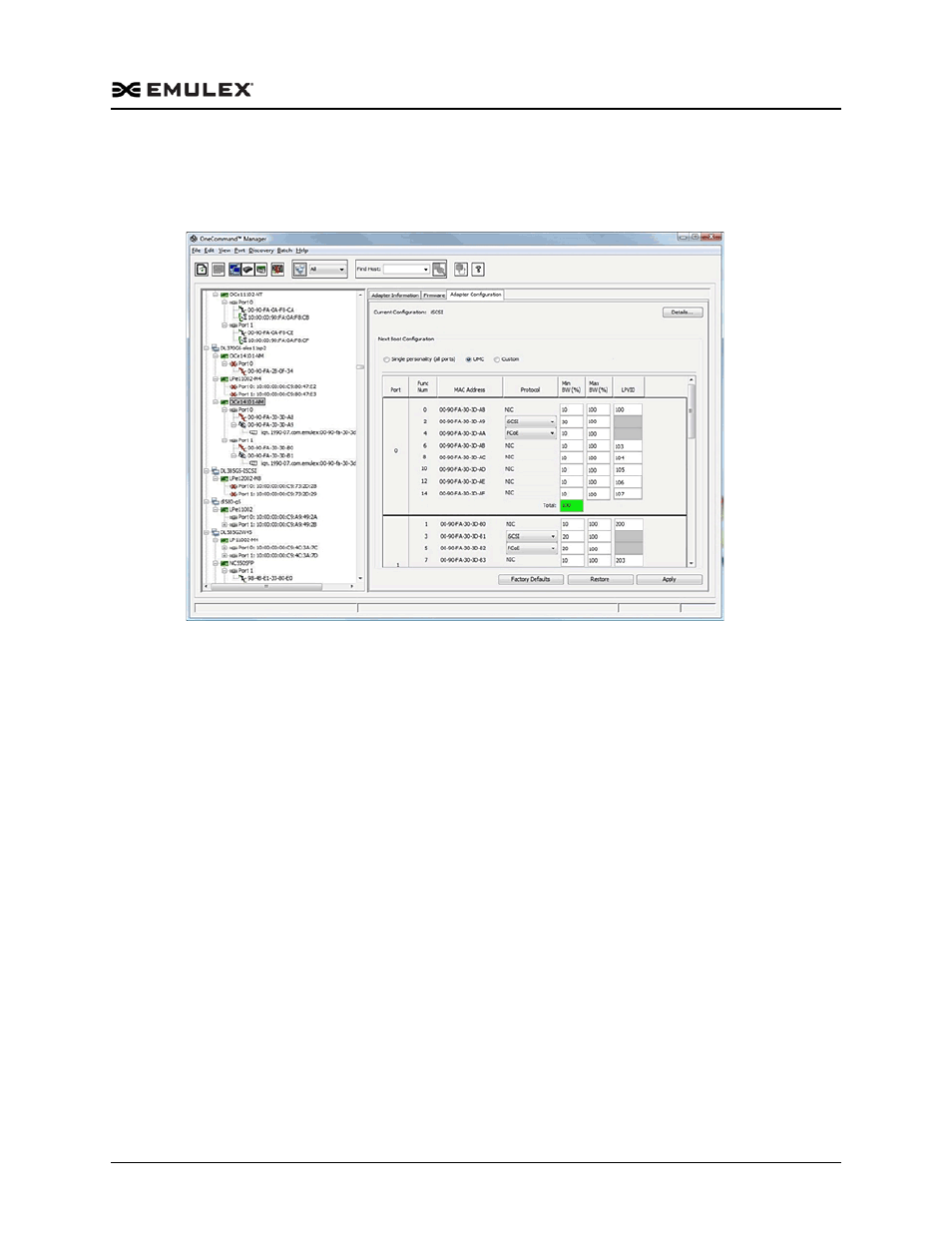

Figure 8-78 UMC View Adapter Configuration Tab (UMC, 2 ports, 8 functions/port, concurrent storage)
For UMC, the OneCommand Manager application allows you to configure up to
sixteen functions on a single port adapter, up to eight functions per port on a two port
adapter, and up to four functions per port on a four port adapter. The maximum
number of functions allowed on an adapter is controlled by the adapter's IPL file.
Note: ARI must be available to support up to sixteen functions on an adapter.
OCe14000-series adapters automatically support ARI. However, the system’s
motherboard must support ARI, it must be enabled in the system BIOS, and the
operating system must support ARI. If these conditions are not met, although
you may configure all sixteen functions, only eight functions will be present and
discovered by the OneCommand Manager application after a reboot.
Note: SR-IOV is not supported with UMC.
UMC channel protocol assignments are subject to the following rules:

The first channel is always NIC.

NIC + RoCE cannot be configured with UMC.

The 2nd and 3rd channels can be assigned the following:

NIC

None (channel disabled)

Storage protocol (note: on 3rd channel only when concurrent mode storage
is available)
