Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
6. Using the FCoE Boot BIOS Utility for x86 and x64 Architectures
Configuring Boot Devices
1583
The Boot Devices menu is displayed.

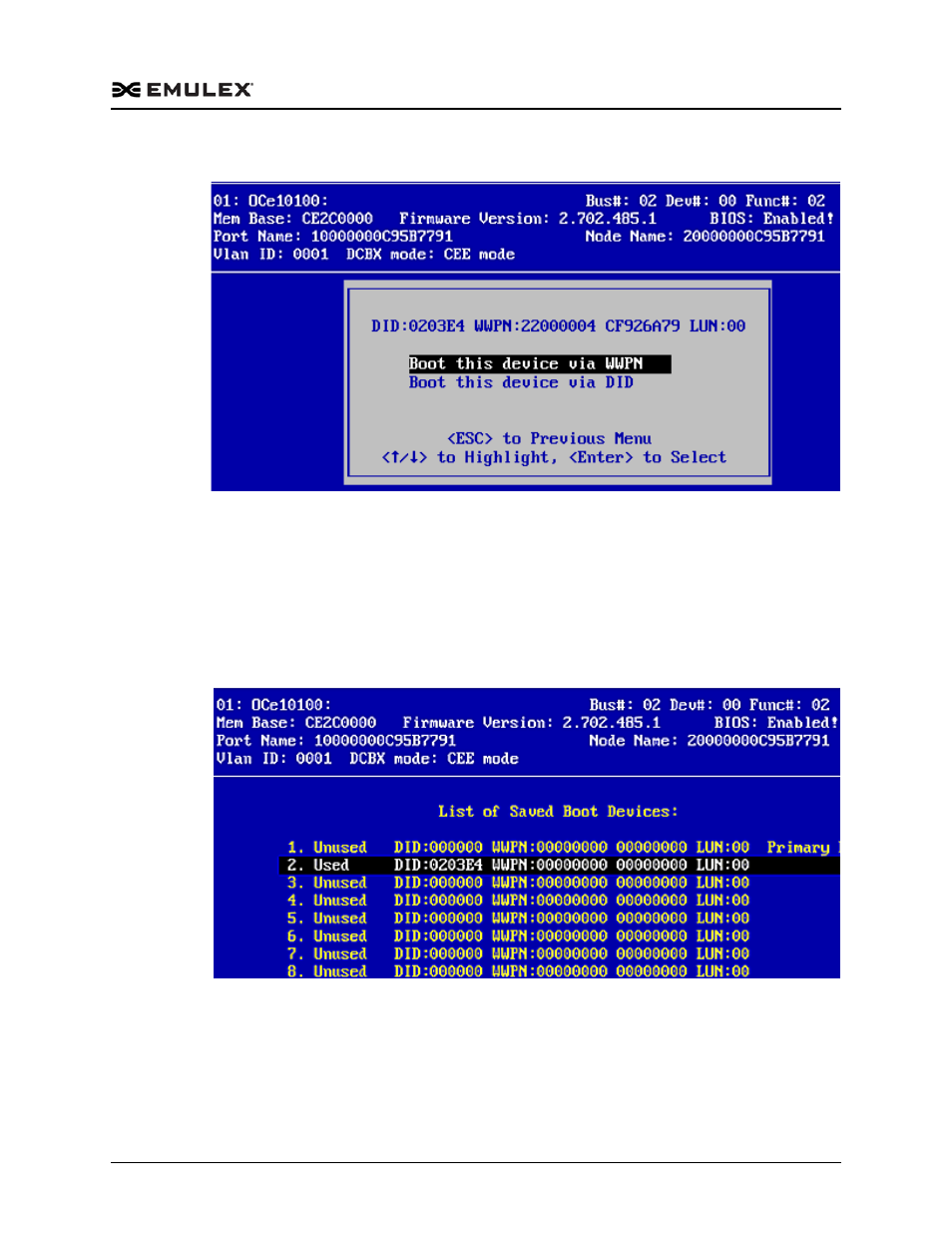

Figure 6-9 Boot Devices Menu
6. Use the up and down arrows to select the boot method. If you select to boot the
device by WWPN, the WWPN of the earlier selected entry is saved in the flash
memory. However, during the initial BIOS scan, the utility issues a Name Server
Inquiry GID_PN (Get Port Identifier). Then, based on this DID, it continues with the
remainder of the scanning.
If you select to boot this device by DID, the earlier selected entry is saved in the
flash memory.
Figure 6-10 Primary Boot Device Set Up Screen
7. Press to select the change.
8. Press to return to the main configuration menu.
9. Reboot the system for the new boot path to take effect.
