Dell Emulex Family of Adapters - Manual (Page 1706)

Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
13. Configuring UEFI for FCoE
Configuring Adapter Parameters
1706
3. From the Configure HBA Parameters screen, select Maximum LUNs/Target and
press .

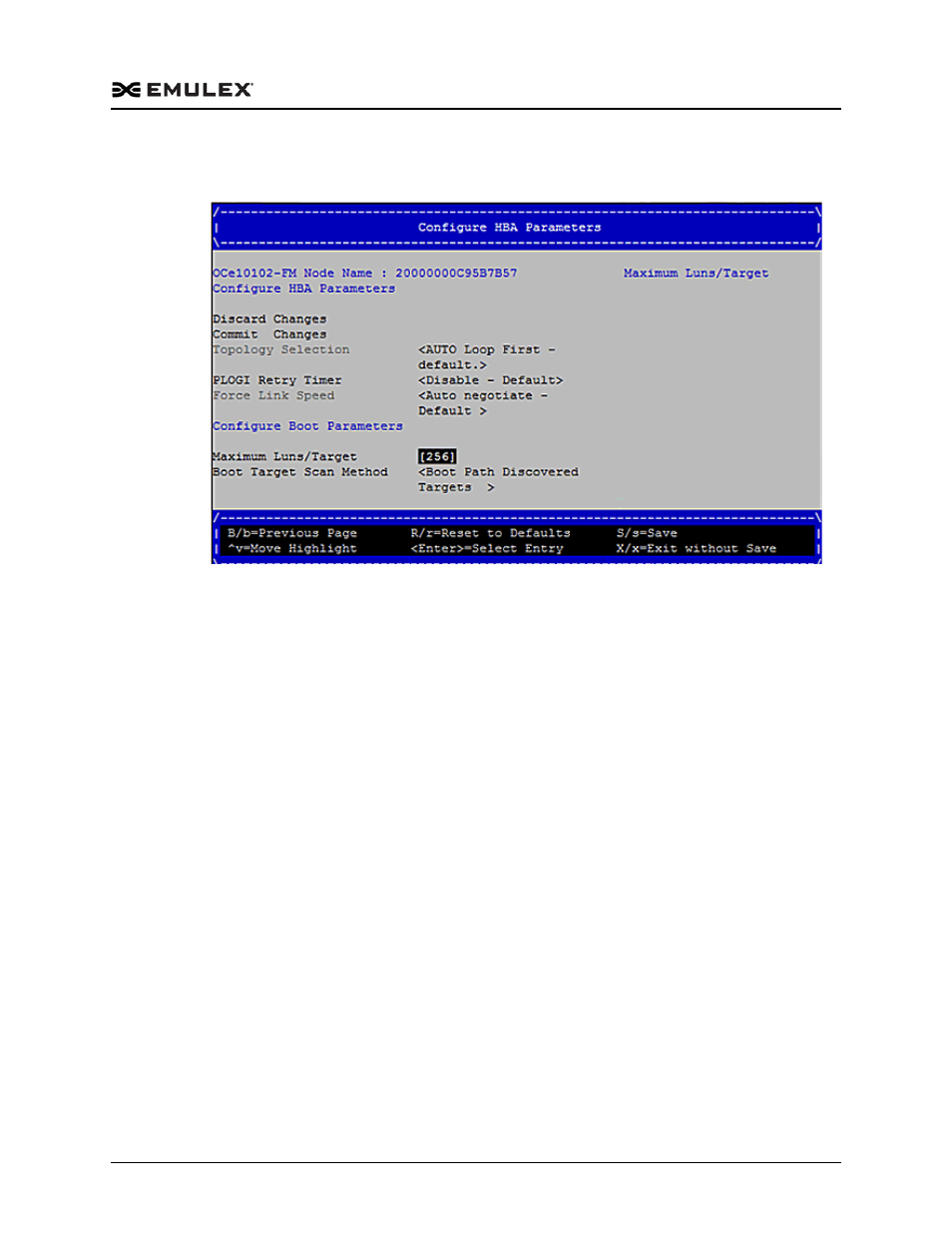

Figure 13-16 Configure HBA Parameters – Maximum LUNs/Target Field
4. Type a decimal value between 1 and 4096 and press . The screen is
refreshed with the modified value.
Note: The default and typical maximum number of LUNs in a target device is 256.
A higher number of maximum LUNs causes the discovery to take more
time.
5. Select Commit Changes and press . The Emulex Adapter Configuration
Main Menu is displayed.
Changing Boot Target Scan Method
This option is only available if none of the eight boot entries is configured to boot from
the DID or WWPN. The Emulex Adapter Configuration Main Menu is used to
configure up to eight boot entries. With boot scan enabled, the first device issues a
Name Server Inquiry.
The boot scan options are:

Boot Path from NVRAM Targets – Boot scan discovers only LUNs that are
saved to the adapter’s NVRAM. Select up to eight attached devices to use as
potential boot devices. Limiting discovery to a set of eight selected targets can
greatly reduce the time it takes for the EFIBoot driver to complete discovery.

Boot Path from Discovered Targets – Boot scan discovers all devices that are
attached to the FC port. Discovery can take a long time on large SANs if this
option is used.

Do not create boot path.
