OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
Viewing and Managing FC/FCoE LUNs
1213

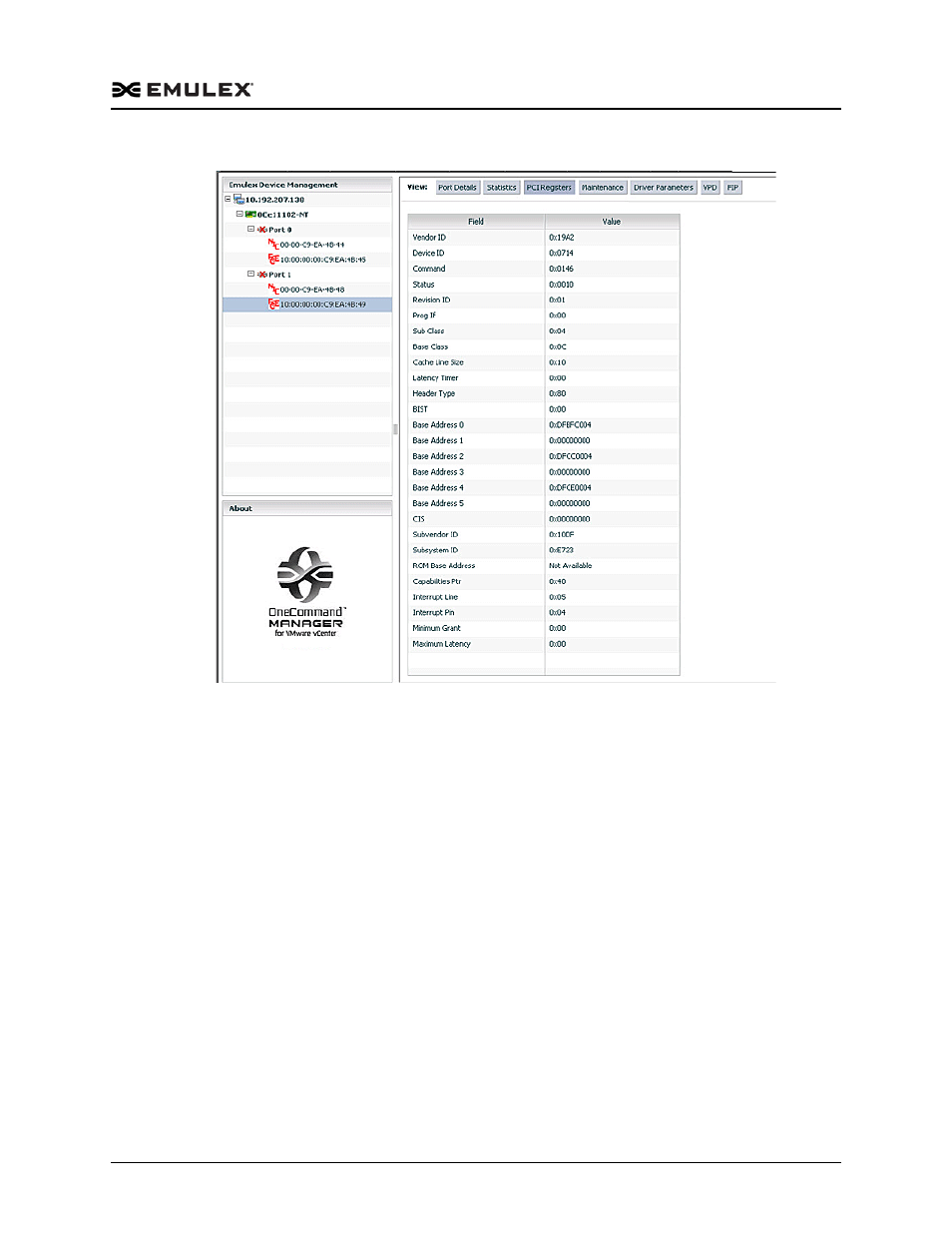

Figure 6-15 FCoE Port PCI Registers Tab
Configuring FCoE Initialization Protocol (FIP)
The FIP tab allows you to view configure FIP for an FCoE adapter port.
To configure FIP:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the FCoE adapter port whose
FIP properties you want to configure.
3. Select the FIP tab.
4. Set the parameters you want and click Apply Changes.
