Dell Emulex Family of Adapters - Manual (Page 1465)

Boot for the Fibre Channel Protocol User Manual P010096-01A Rev. A
6. EFIBoot
Update an Adapter’s Firmware or Boot Code
1465
2. Select 2. Read Configuration From File. The screen shown in Figure 6-38 prompts
you to enter a directory path to the previously saved configuration file.

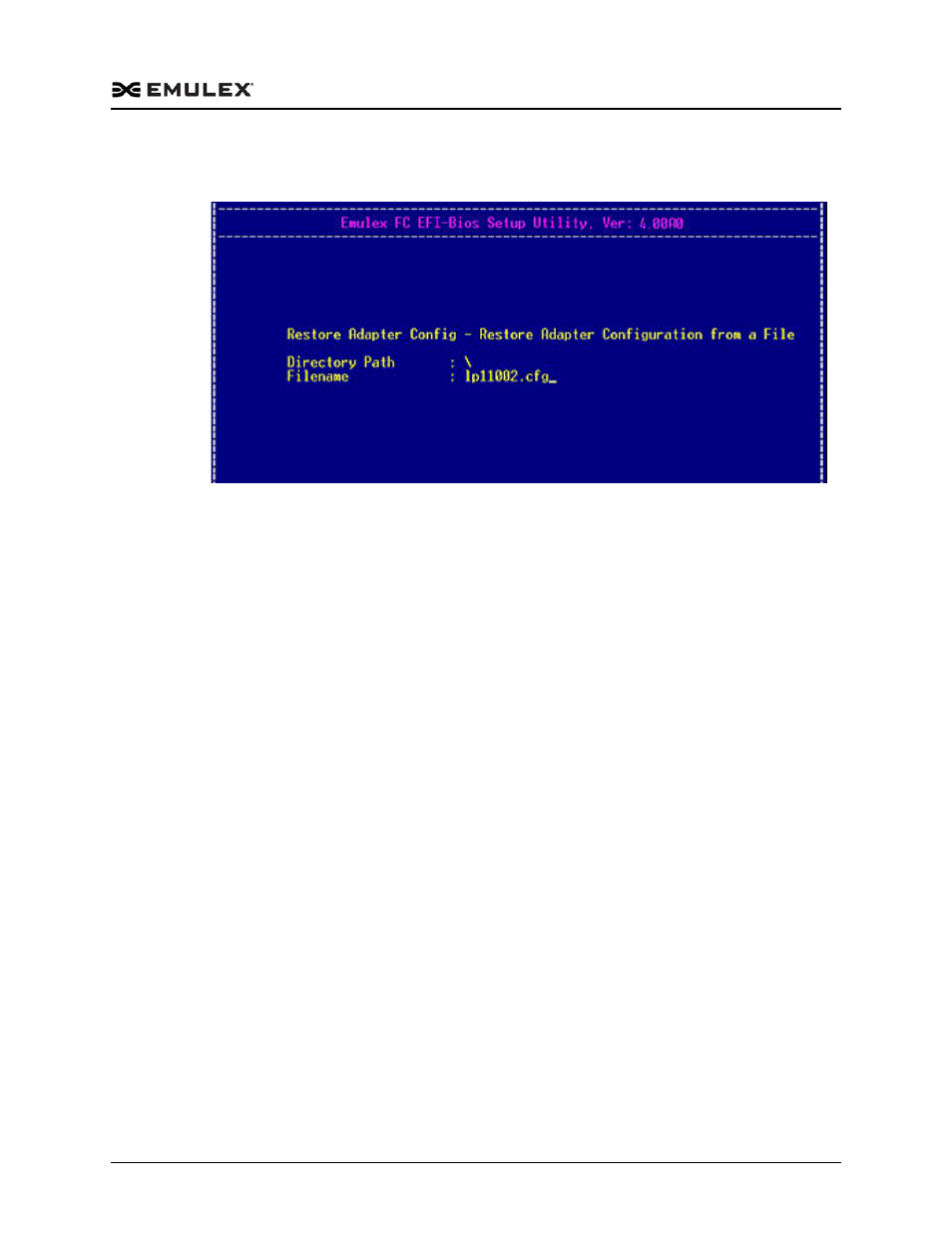

Figure 6-38 Read Configuration Path Screen
3. Enter the directory path and file name and press . A list of the adapters in
the system is displayed (Figure 6-35).
4. Select (check) the adapters that are to be batch configured. To select an adapter,
highlight the row and press the space bar.
5. Press
to configure the selected adapters. If the adapters are configured
successfully, the screen shown in Figure 6-36 is displayed.
If all adapters are not configured successfully, the screen shown in Figure 6-37 is
displayed.
Update an Adapter’s Firmware or Boot Code
Update a Single Adapter
If you are updating boot code on an adapter that is already attached to a boot device, it
is recommended that you use the EFI utility, and not another utility such as the
OneCommand Manager application, to perform the update.
To update the boot code using the EFI utility:
1. On the main EFI utility menu, select 2. Firmware Update and press .
