14. The Network Protocol Selection menu is displayed. Select NFS and click OK.

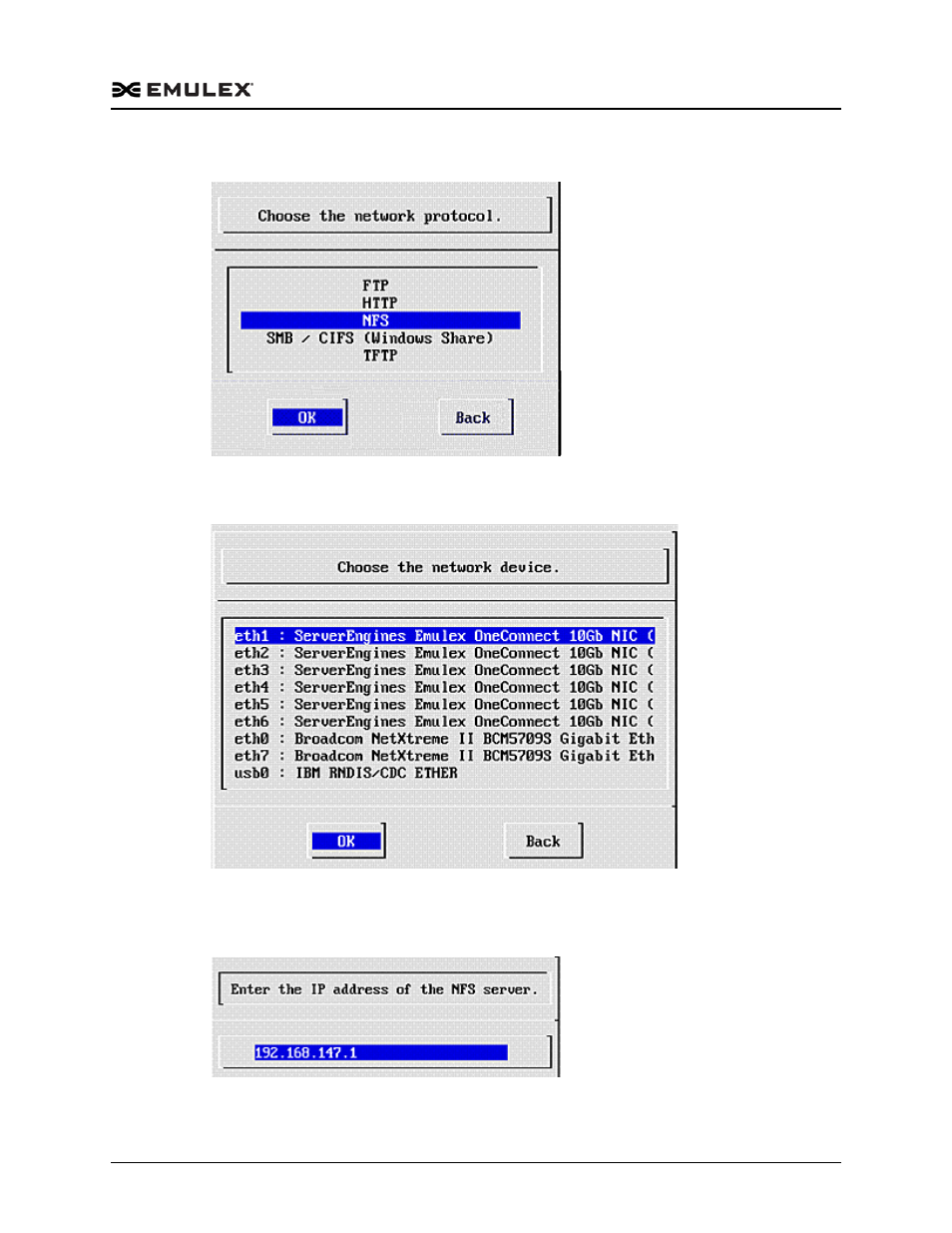

Figure C-12 Network Protocol Selection Menu

15. The Network Device Selection listing is displayed. Select the device and click OK.

Figure C-13 Network Device Selection Listing

16. The DHCP request is sent. A dialog box prompts you to enter the IP address of the

NFS server.

Figure C-14 NFS Server IP Address Dialog Box
