Dell Emulex Family of Adapters - Manual (Page 1482)

Boot for the Fibre Channel Protocol User Manual P010096-01A Rev. A
7. Configure EFIBoot via UEFI HII (Human Interface Infrastructure) in a UEFI 2.1 System
Configure Adapter Parameters
1482
5. From the menu, select the device whose boot order you want to change. Use the
<+> or <-> keys to change the order of the selected device and press . A
screen appears showing the new boot device order.
6. Press to confirm the changes.
Configure Adapter Parameters
The EFI utility enables you to configure the following adapter parameters:

Topology

Port login (PLOGI) retry timer

Link speed
To configure adapter parameters:
1. From the Adapter Selection screen select the adapter whose parameters you want to
configure and press >.
2. From the main menu (Figure 7-3), select Configure HBA and Boot Parameters and
press . The Configuration menu screen appears.

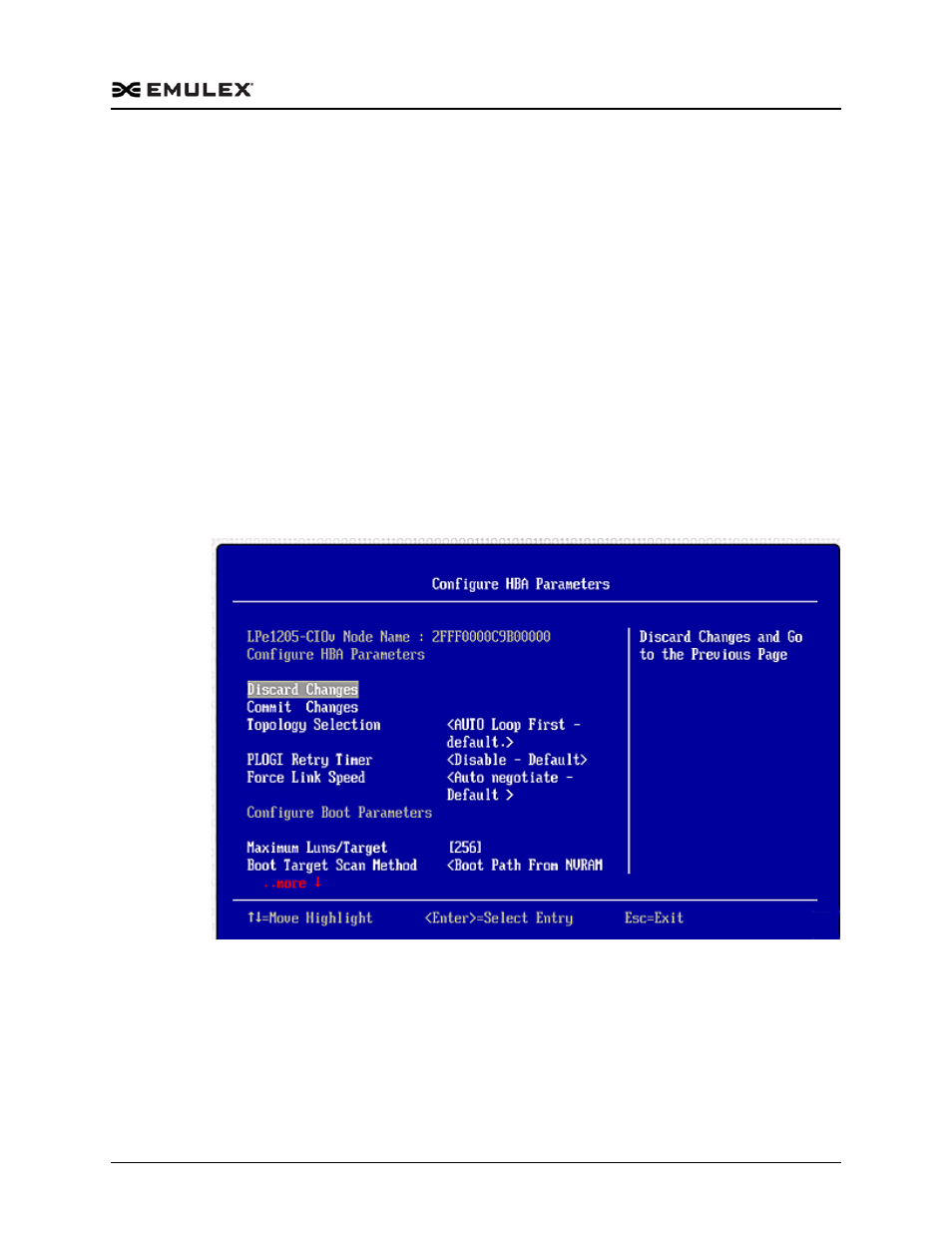

Figure 7-14 Adapter Configuration Menu
