6. Viewing Discovery Information
Configuring iSCSI Target Discovery
104
6. Viewing Discovery Information
The Discovery Information page contains a general summary of the discovered
elements. The Host, Fabric or Virtual Port icon, depending upon which view you select,
is the root of the discovery-tree, but it does not represent a specific network element.
Expanding it reveals all hosts, LUNs, targets, adapter ports, and virtual ports that are
visible on the SAN.
To view discovery information:
1. Click the Hosts, Fabrics, or Virtual Port icon at the root of the discovery-tree.
Discovered SAN elements appear in the discovery-tree.
2. Select an element from the discovery-tree to learn more about it.

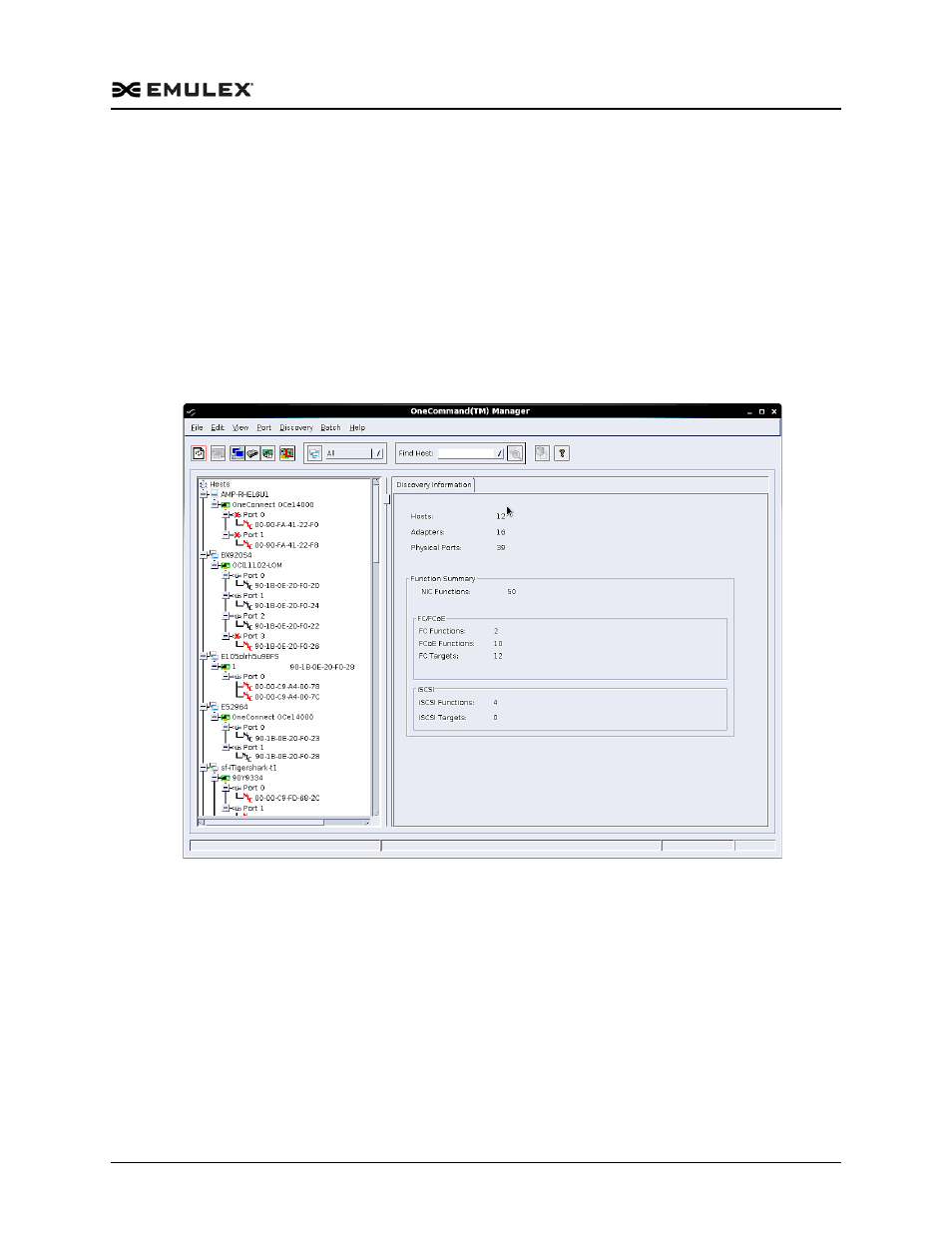

Figure 6-1 Discovery Information (Host View Selected)
Discovery Information Field Definitions

Hosts – The total number of discovered host computers containing manageable
Emulex adapters. This includes servers, workstations, personal computers,
multiprocessor systems, and clustered computer complexes.

Adapters – The total number of discovered adapters.

Physical Ports – The number of discovered physical ports that can be managed
by this host.

Function Summary – Listed by protocol, the total number of discovered
functions and targets.
