Dell Emulex Family of Adapters - Manual (Page 99)

OneCommand™ Manager Application P010066-01A Rev. A
5. Configuring Discovery
Configuring iSCSI Target Discovery
99
the Initiator Login Options tab does not change the discovered targets login
options.

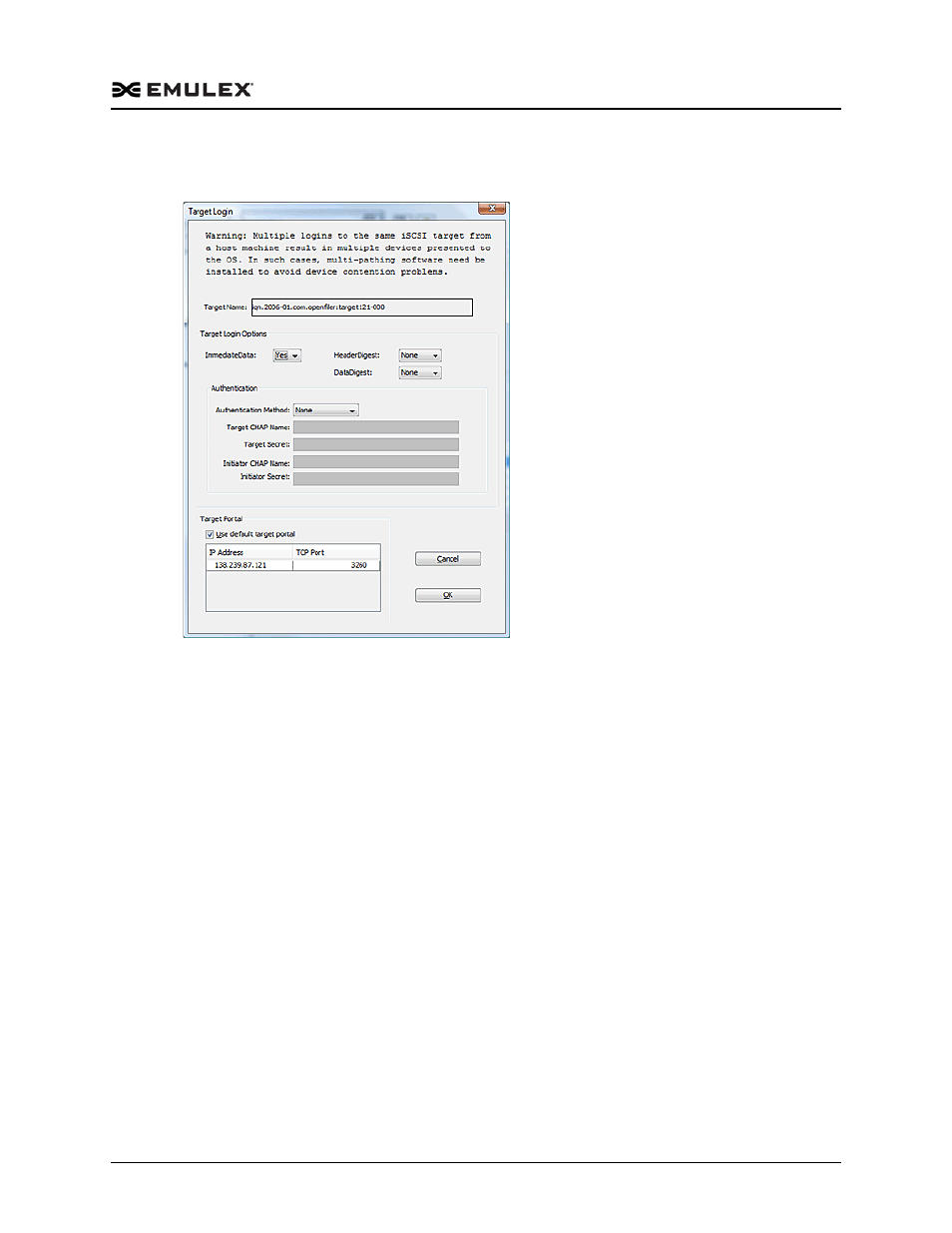

Figure 5-9 Target Login Dialog Box
To log into a target:
1. From the iSCSI Target Discovery tab, select the target from the Targets table.
2. Click Target Login. The Target Login dialog box appears. The dialog box displays
the Target Name and Target Alias of the target. When you log into a target and
reboot the system, the adapter automatically logs in to that target after the reboot is
complete.
3. Specify the Target Login Options and Authentication method you want to use.
4. If more than one Target Portal is available to log into the target, you can select the
target portal you want to use from the Target Portal list. To use the default Target
Portal, check “Use default target portal.”
5. Click OK. If the target was successfully logged into, the target's status in the Targets
table changes to 'Connected'.
Note: If you are logging into a target more than once, or you are logging into the same
target from multiple iSCSI ports, you must have multi-pathing software
installed to properly present the target‘s LUNs to the operating system.
Note: When running the open-iSCSI driver, only one login session is allowed per
target. Subsequent login attempts to a target with an existing session results in
an error.
