OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
OCe14100–Series Adapters
1290

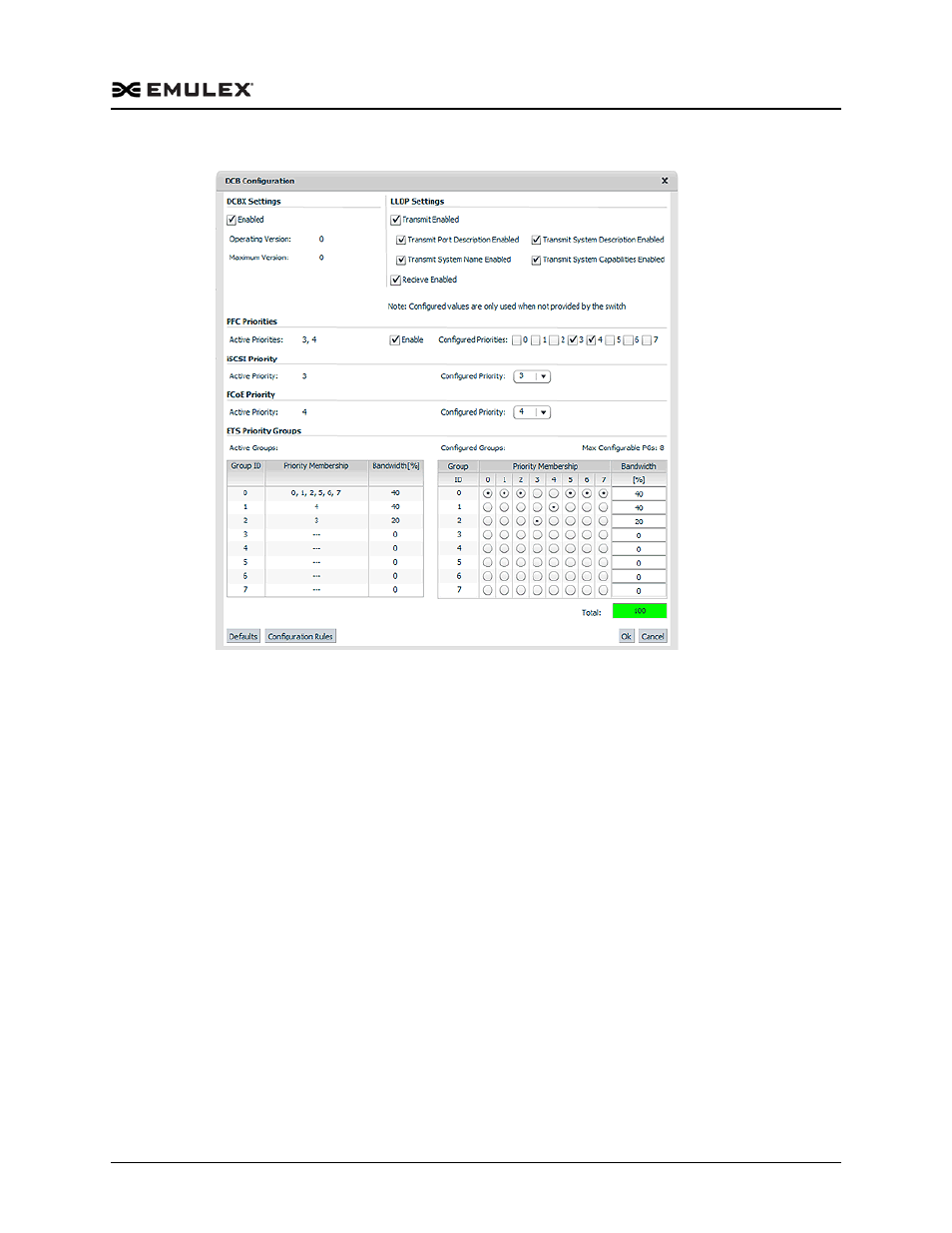

Figure 6-72 DCB Configuration Dialog Box for FCoE and ISCSI Adapter Ports (DCBX Enabled)
Configure DCB Dialog Box Field Definitions
DCBX Settings Area

Enabled – DCBX can be enabled or disabled. With DCBX enabled, the
configured values are used only if the switch does not provide them. With
DCBX disabled, the configured values are used.

Operating Version – The operating version of the DCBX protocol. The system
adjusts as needed to operate at the highest version supported by both link
partners. This setting cannot be changed.

Maximum Version – The highest DCBX protocol version supported by the
system. Version numbers start at zero. The DCBX protocol must be backward
compatible with all previous versions. This setting cannot be changed.
LLDP Settings Area

Transmit Enabled – LLDP Transmit can be enabled or disabled.

Transmit Port Description Enabled – Provides a description of the port in an
alpha-numeric format. The value equals the ifDescr object, if the LAN device
supports RFC 2863.
