Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
11. Configuring UEFI for Ethernet
Starting the Emulex NIC Configuration Utility
1632
2. From the CHAP Authentication Mode pop-up menu, select None, One-way CHAP,
or Mutual CHAP and press .

One-way CHAP – With one-way CHAP authentication, the target authenticates
the initiator. Use one-way CHAP authentication for a one-way
challenge/response security method – you must configure the CHAP ID and
CHAP Secret, which is authenticated by the target.

Mutual CHAP – With mutual CHAP authentication, the target authenticates the
initiator and the initiator authenticates the target. Use mutual CHAP
authentication for a two-way challenge/response security method – you must
configure different CHAP and mutual CHAP IDs and CHAP secrets.
Note: When you configure the CHAP parameters, verify that those parameters
match the parameters on the storage side.
3. Enter the appropriate CHAP ID and CHAP Secret and press .
Configuring Network Settings
To configure the network settings:
1. On the iBFT Configuration screen, select Network Configuration and press
. The Network Configuration screen appears.

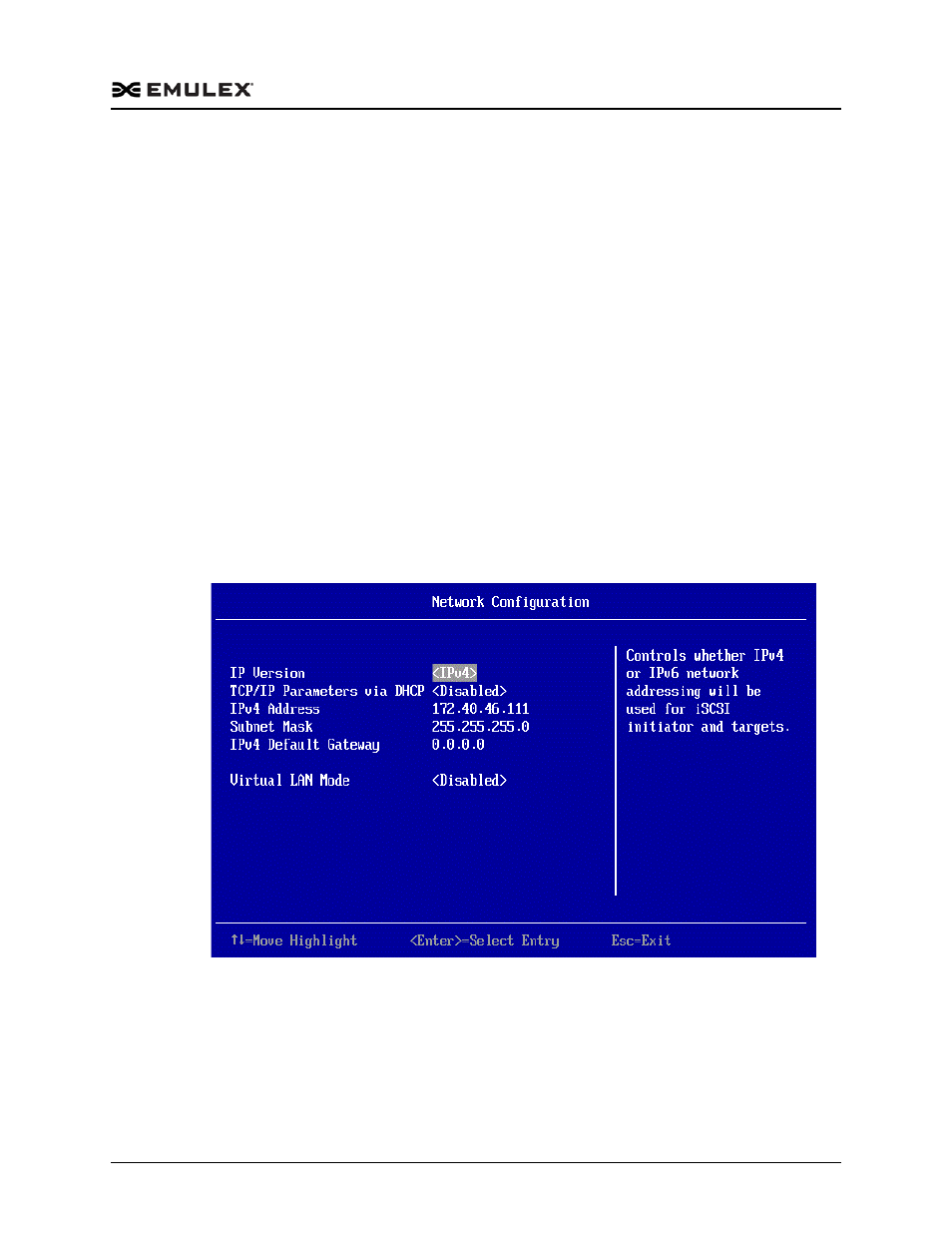

Figure 11-5 Network Configuration Screen
The Network Configuration screen enables you to perform the following tasks:

Configure the initiator’s IP version

Configure TCP/IP parameters via DHCP
Note: This option is only available when IPV4 is selected as the IP version.

Configure iSCSI parameters via DHCP
