3. Using the OneCommand NIC Teaming and VLAN Manager
Viewing General Information
762
2. Select a VLAN in the discovery-tree. The General tab for the VLAN is displayed.
This tab is read-only.

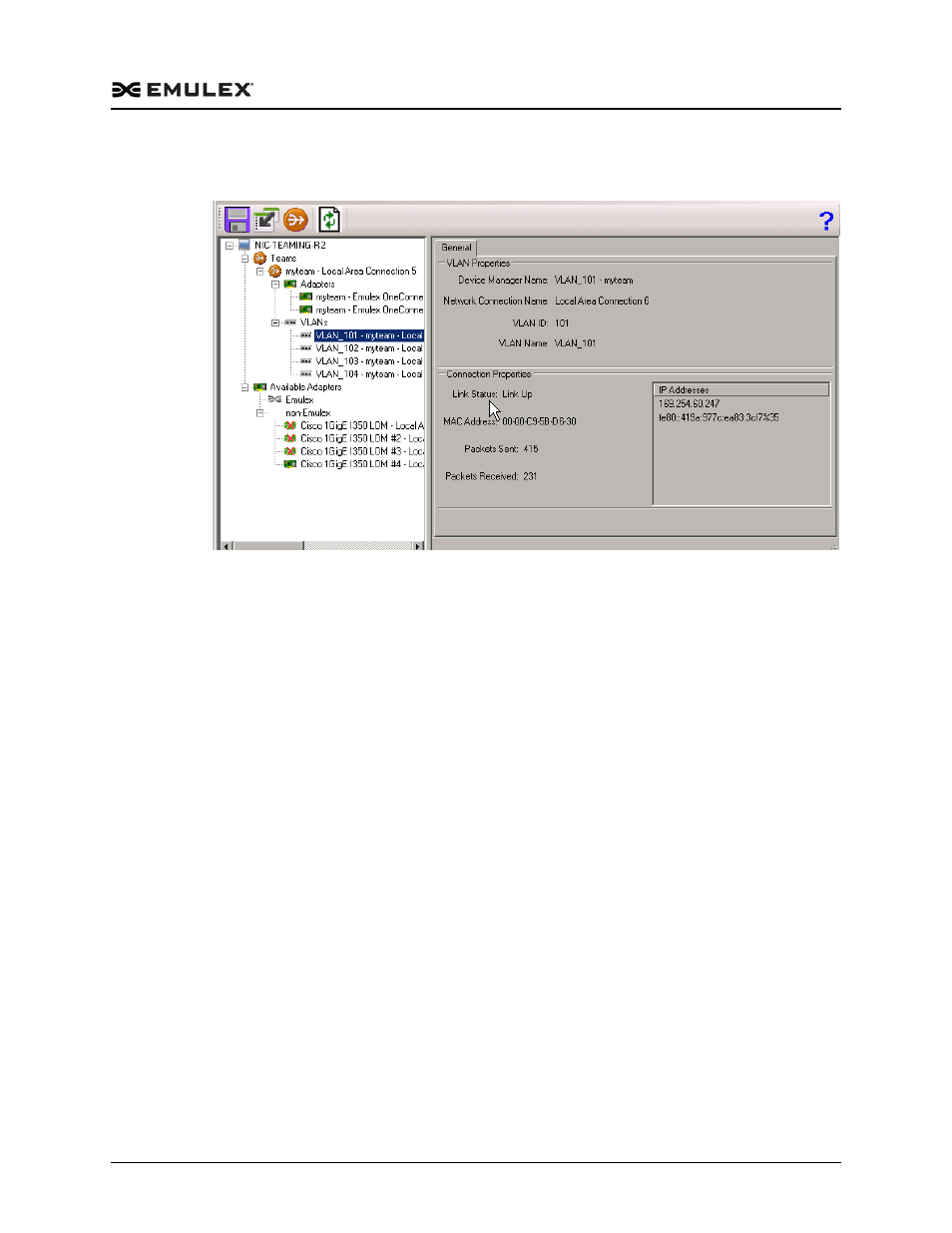

Figure 3-7 General Tab Information for a VLAN
General Tab for a VLAN - Field Definitions
VLAN Properties Area

Device Manager Name – The device manager name

Network Connection Name – The network manager name

VLAN ID – The VLAN ID

VLAN Name – The VLAN name
Connection Properties Area

Link Status – The status of the link on the selected VLAN

MAC Address – The NIC MAC address currently assigned to the VLAN

Packets Sent – The number of packets sent using the VLAN

Packets Received – The number of packets received using the VLAN

IP Addresses table – A list of the IP addresses for the VLAN
Viewing General Information for a VLAN Adapter
1. From the Start menu, click All Programs>Emulex>OneCommand Teaming and
VLAN Manager to start the application. The General tab for the host computer is
displayed.
