OneCommand™ Manager Application P010066-01A Rev. A
13. Diagnostics
OneConnect Diagnostics
276
After writing an entry into the log, you are prompted to clear the display. The default
name of the saved file is DiagTest.log. An example of a saved log file appears below:

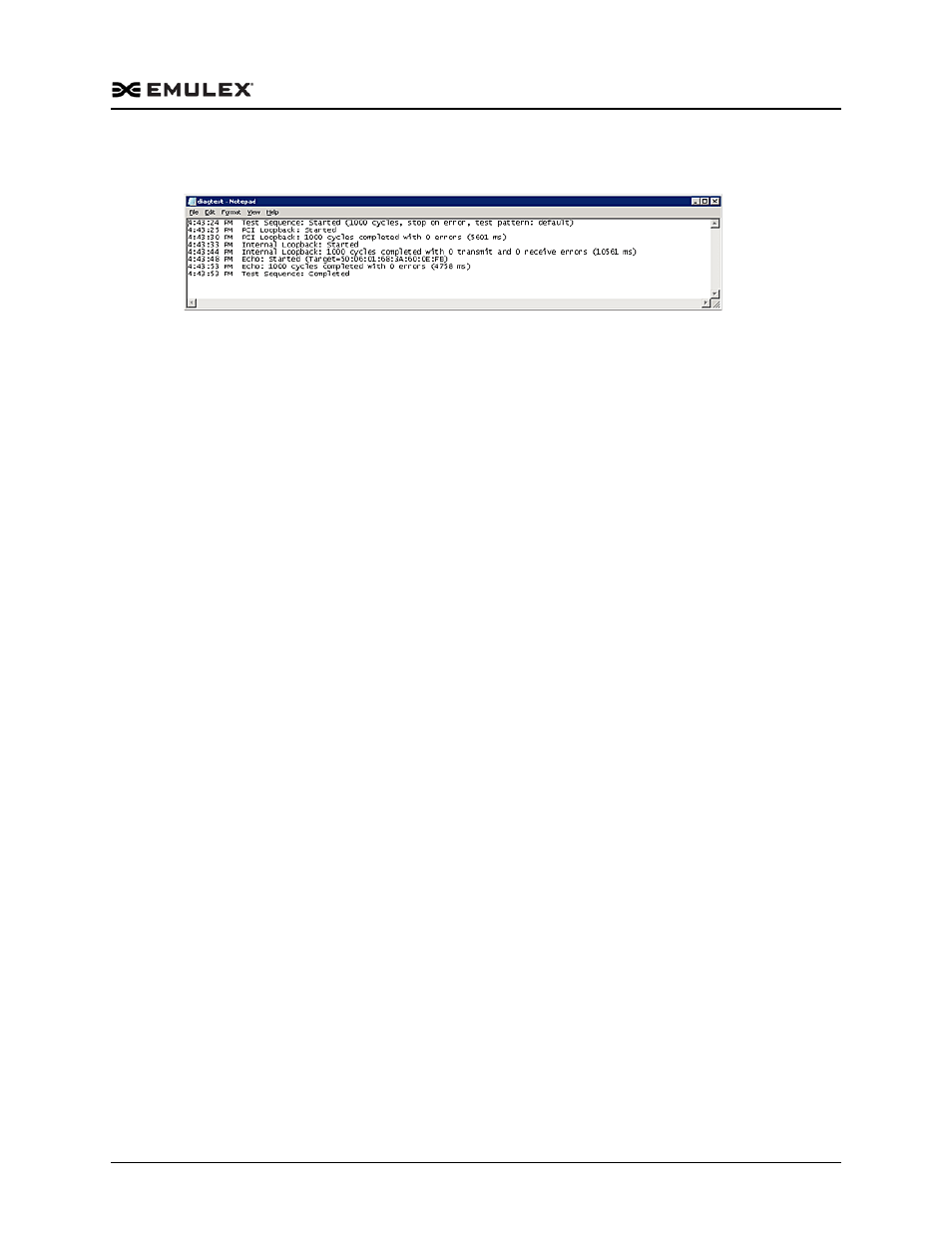

Figure 13-13 Example of a DiagTest.log Window
To save the log file:
1. After running a test from the Diagnostic Test Setup dialog box, click Save to File.
The Select Diagnostic Log file Name dialog box appears. The default name of a
saved file is DiagTest.log.
2. Browse to the desired directory, change the log file name if you want and click
Save. See Figure 13-8.
OneConnect Diagnostics
This section describes the diagnostics for OneConnect adapters. For FC adapter
diagnostics, see “LightPulse FC HBA Diagnostics” on page 264.
Note: Diagnostics are not available in read-only mode. See “Changing Management
and Read-Only Mode” on page 85 for more information.
Use the Diagnostics tab to:

Run these tests on OneConnect adapters installed in the system:

DMA Loopback

PHY Loopback

MAC Loopback

End-to-End (ECHO) (FCoE only)

External Loopback

Perform a diagnostic dump and retrieve dump files from remote hosts.

Control adapter beaconing
