Boot for the Fibre Channel Protocol User Manual P010096-01A Rev. A
7. Configure EFIBoot via UEFI HII (Human Interface Infrastructure) in a UEFI 2.1 System
Configure Adapter Parameters
1483
Change the Topology
Emulex drivers support arbitrated loop and point-to-point topologies. You can
configure:

Auto Loop first – default

Auto point to point first

Point to point

FCAL
To change the topology:
1. From the Adapter Selection screen, select the adapter whose topology you want to
change and press .
2. From the Configure HBA Parameters menu, navigate to Topology Selection and
press . The Topology menu screen appears.

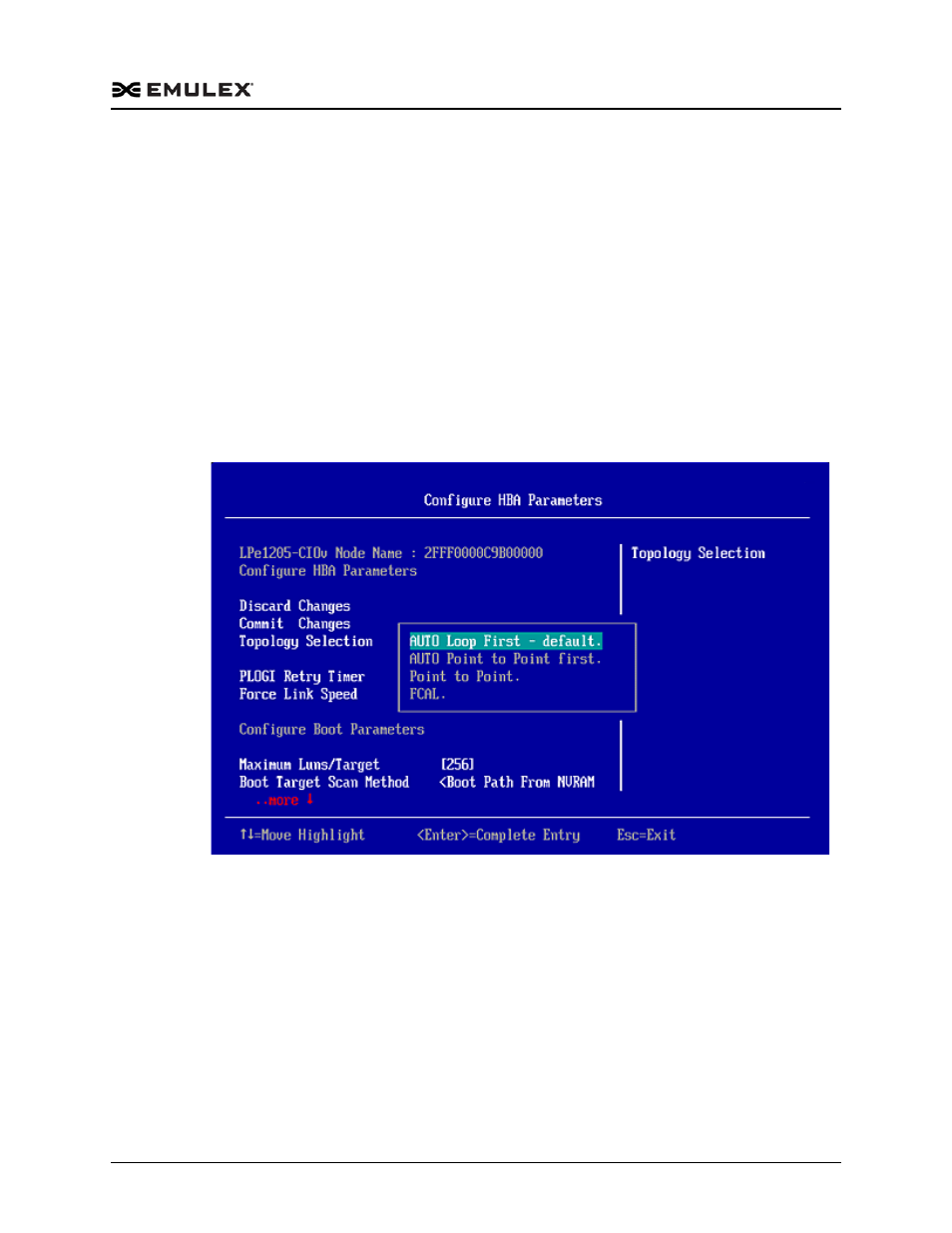

Figure 7-15 Topology Menu
3. Select a topology and press . The screen is refreshed with the new value.
The presence of a fabric is detected automatically.
4. Press to return to the EFI utility menu.
5. Select Commit Changes and press .
