OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
7. Updating Firmware
Performing a Batch Firmware Update in Cluster View
1293
7. Updating Firmware
Performing a Batch Firmware Update in Cluster View
Before you can perform a batch update, you must download the firmware file from the
Emulex website and extract it into a directory on your local drive.
Note: On the system where OneCommand Manager for VMware vCenter is installed,
make sure the port numbers configured during the installation are open and
dedicated to the OneCommand Manager for VMware vCenter server only. No
other service should be listening on this port.
To perform a batch firmware update:
1. Select a cluster in the vSphere console tree-view and select the Emulex
OneCommand tab.
2. From the Emulex Device Management options, select Batch Firmware Update.

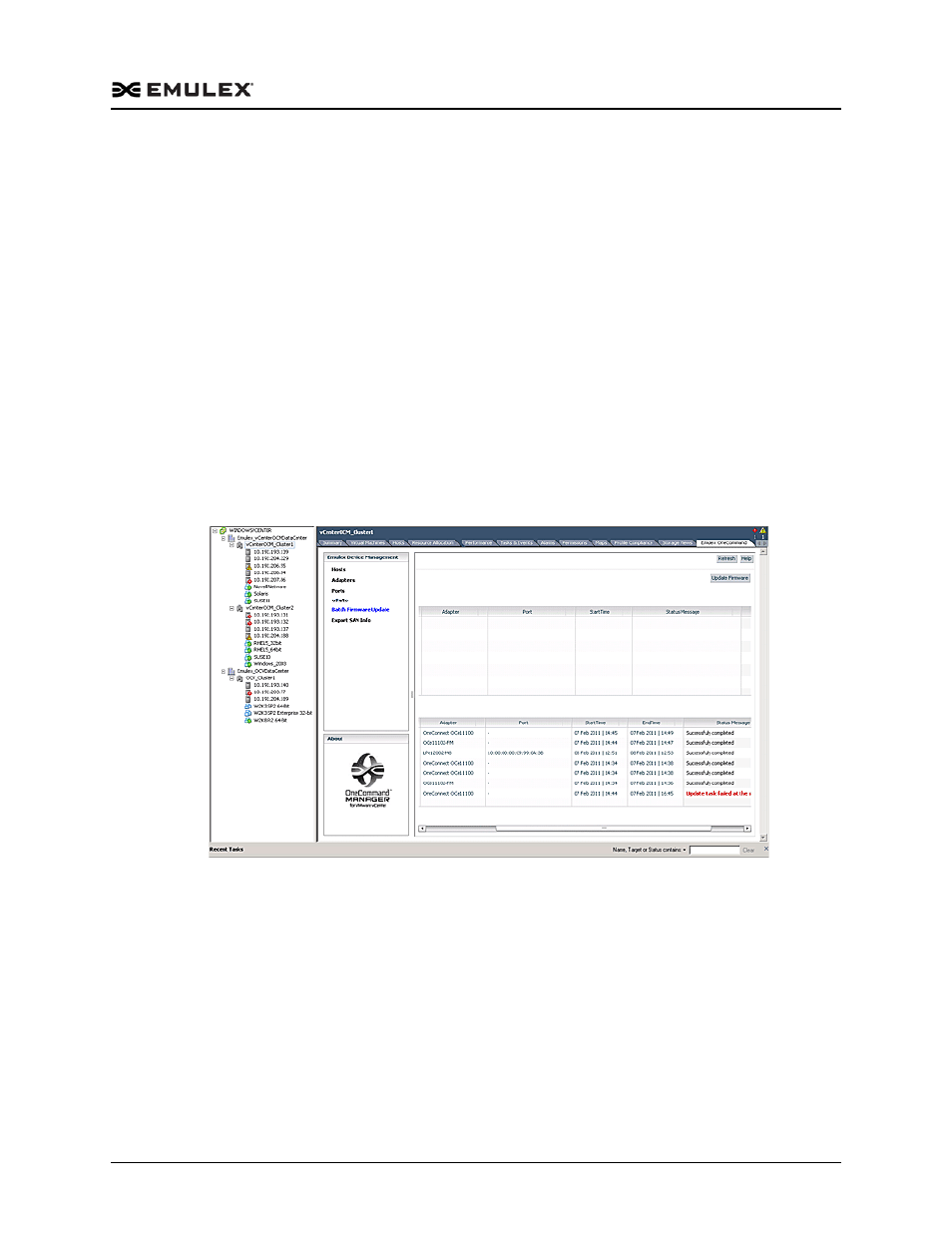

Figure 7-1 Batch Firmware Update Information Pane
3. Click Update Firmware to install firmware on multiple adapters in a single step.
Batch firmware loading is restricted to a single firmware file and to all accessible
adapters for which that file is compatible.
Updating Firmware on Multiple Adapters in Cluster View
To update firmware for multiple adapters:
1. Click Update Firmware. A Batch Firmware Download dialog box appears with
blank fields.
Note: You do not need to select a particular tree element for this operation.
