Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
3. Configuring PXE Boot for NIC on OCe14000-series Adapters
Using the PXESelect Utility
1544

If the Personality setting is set to NIC or NIC+RoCE, the Configure Channel
screen appears.

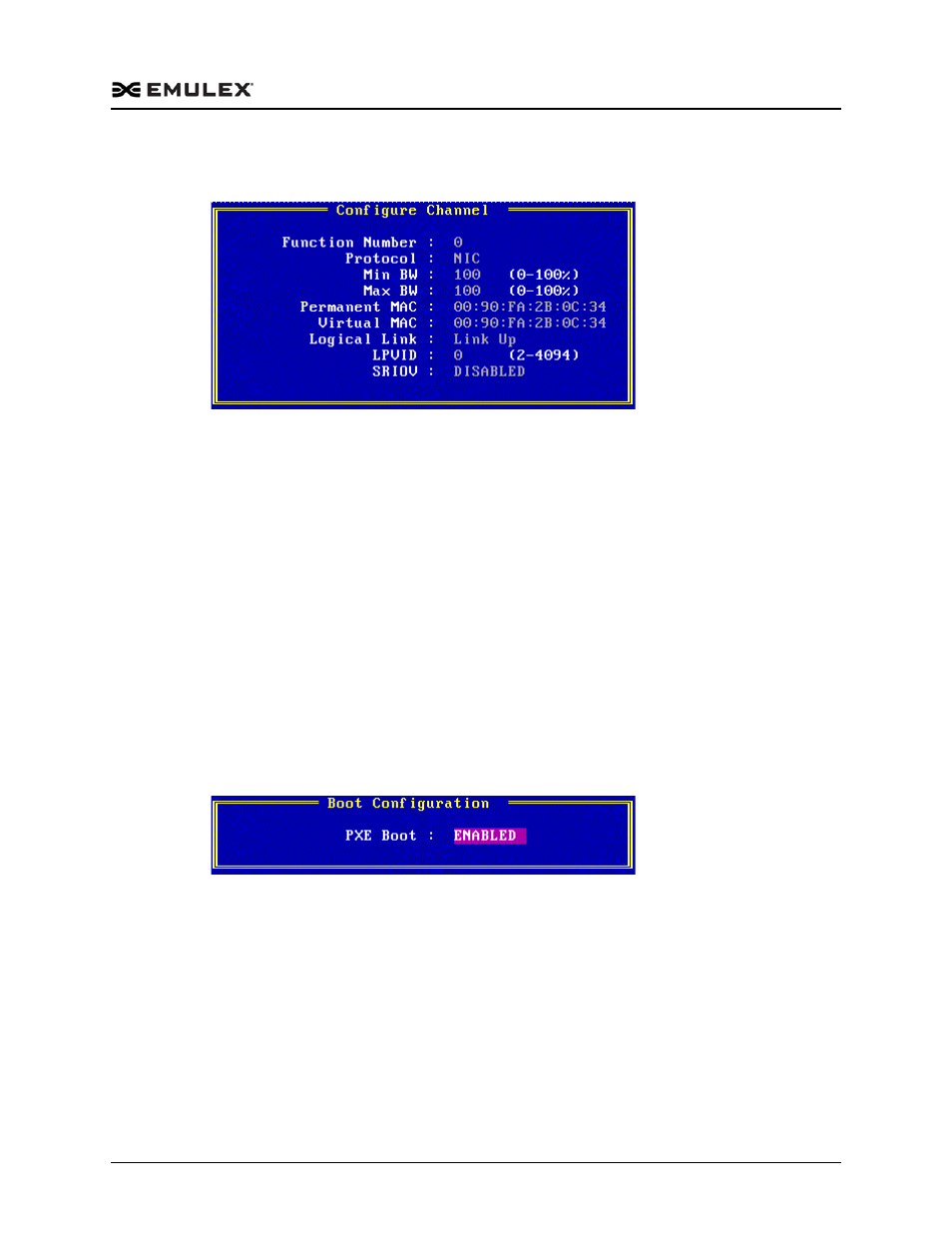

Figure 3-9 Configure Channel Screen
2. From the Configure Channel screen, you can view the following information:

Function number

Protocol

Minimum BW (Min BW)

Maximum BW (Max BW)

Permanent and virtual MAC addresses

Logical link status

Assigned LPVID

SRIOV status
Configuring Boot Options
To view the Boot Configuration screen:
1. From the Port Menu (Figure 3-7), select 2. Boot Configuration and press .
The Boot Configuration screen appears.
Figure 3-10 Boot Configuration Screen
From the Boot Configuration screen, you can configure PXE boot support.
Configuring PXE Boot Support
To configure PXE boot support:
1. On the Boot Configuration screen, use the left or right arrow keys to enable or
disable the PXE Boot setting.
2. Press to save.
Note: During system startup when PXE boot is enabled, PXE contacts the DHCP
server for an IP address to boot from the network.
