Mixed Mode Configuration
When mixed mode is available, up to two functions per port can be configured. The
first function will be NIC. The second function can be a storage protocol or “None”.
When you click on the second function's pull down menu, the available storage
protocols for the function are displayed.

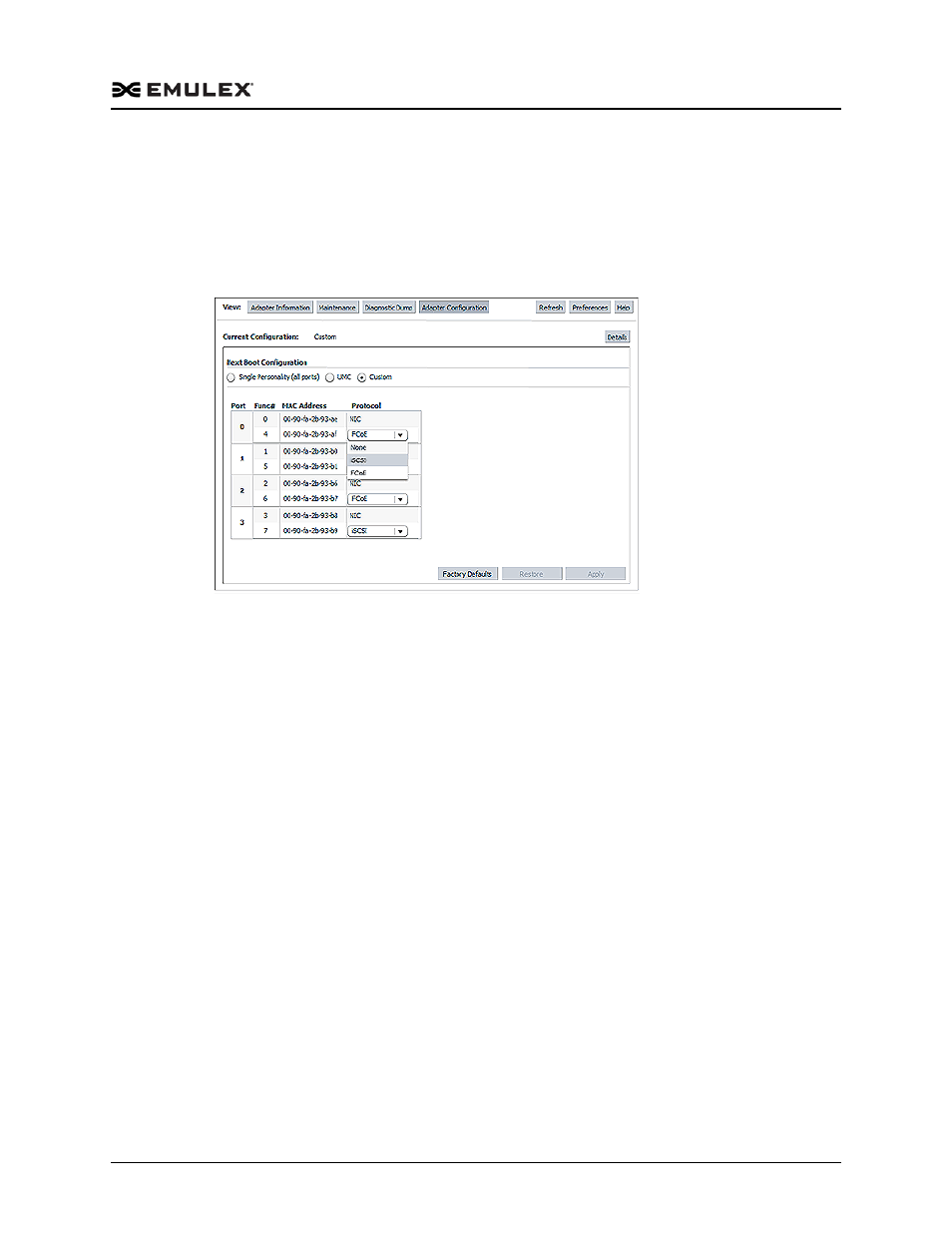

Figure 6-58 Mixed Mode Protocol pull down menu
You can select any of the available storage protocols or “None” to indicate that the
second function will not be available on that port. After selecting the protocols to run
on each port, click Apply to save the configuration.
Note: If you select the same protocol or “None” on all ports, you essentially
configured a single personality. In this case, after clicking Apply, the tab
switches to the single personality view showing the selected personality in the
personality pull down menu.
Note: If NIC protocol is selected for all functions, a pull down appears with available
NIC-Only profiles. One of them must be selected.
