Figure 2-13 – Dell Emulex Family of Adapters User Manual

Page 1532

Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual

P010097-01B Rev. A

2. Configuring PXE Boot for NIC on LPe16202, OCe10100, and OCe11100-series Adapters

Using the PXESelect Utility

1532

When configuring multichannel on adapters that support IBM Virtual Fabric and

UFP modes, the configuration screen will depend on the Multichannel Mode that

has been selected.

Note: For illustration purposes, the screen displays in this section are for a system

with IBM Virtual Fabric Mode enabled.

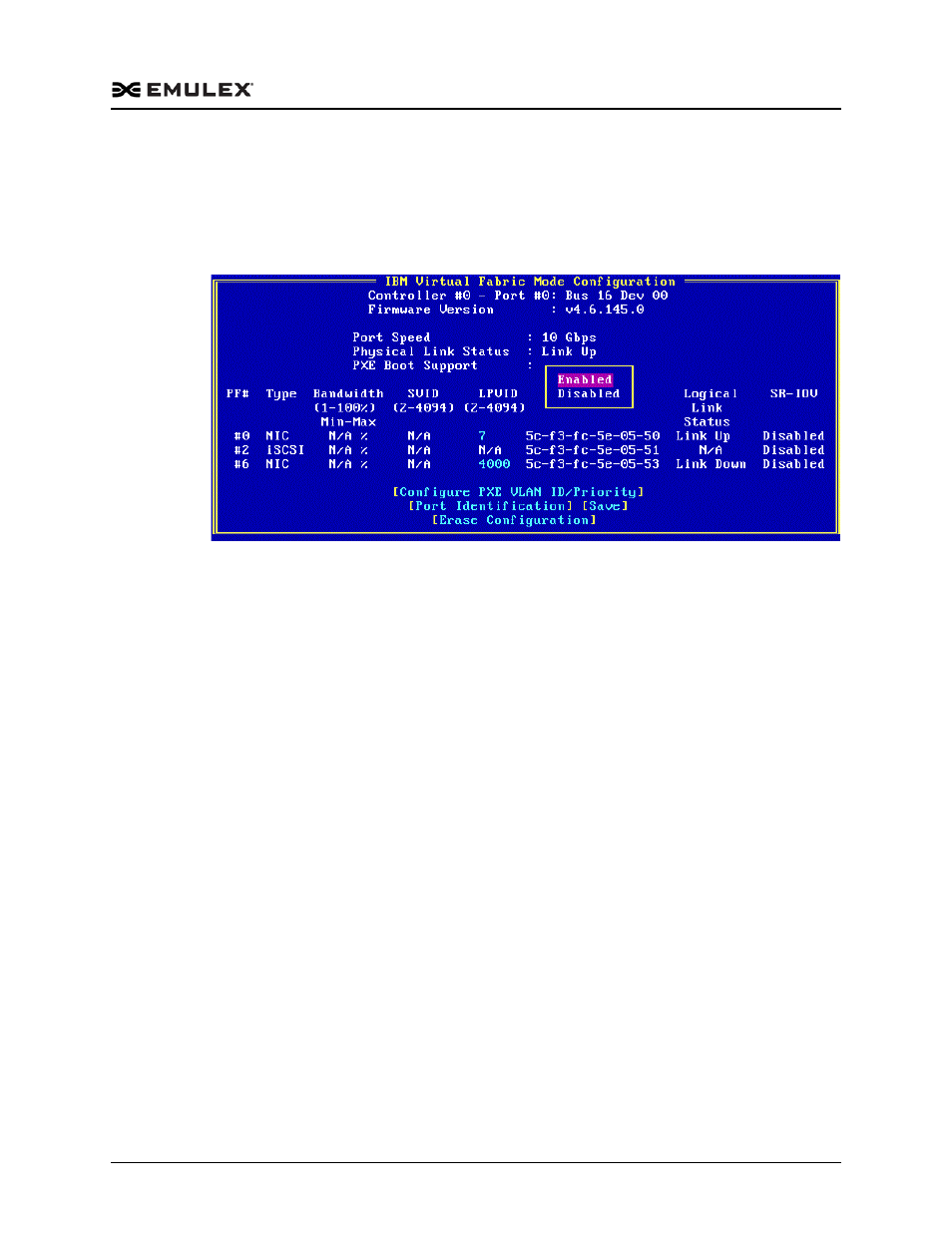

Figure 2-13 IBM Virtual Fabric Mode Configuration Screen

Notes:



Logical Link Status is displayed as “N/A” for storage functions.



SR-IOV support can only be enabled if multichannel support is disabled.



If your system does not support some of the multichannel options, those

unavailable options are displayed as N/A on the MultiChannel Configuration

screen.



The SVID, or Outer VLAN ID, is displayed in IBM Virtual Fabric Mode and IBM

Unified Fabric Protocol Mode. This value is provided by the IBM switch and

will appear when the protocol modes are configured on the switch and the

adapter. If the protocol modes are not configured, a value of “N/A” is

displayed.

2. From the configuration screen, you can perform the following tasks:





Configure PXE VLAN ID/Priority – see “Configuring the PXE VLAN ID and



instructions.



Erase the port and adapter configuration – see “Erasing Ports and Controller



Configure the LPVID for each channel – see “Configuring LPVID” on page 1529

for instructions.
