6. Managing Adapters and Ports
OCe10100–Series and OCe11100–Series Adapters
1265

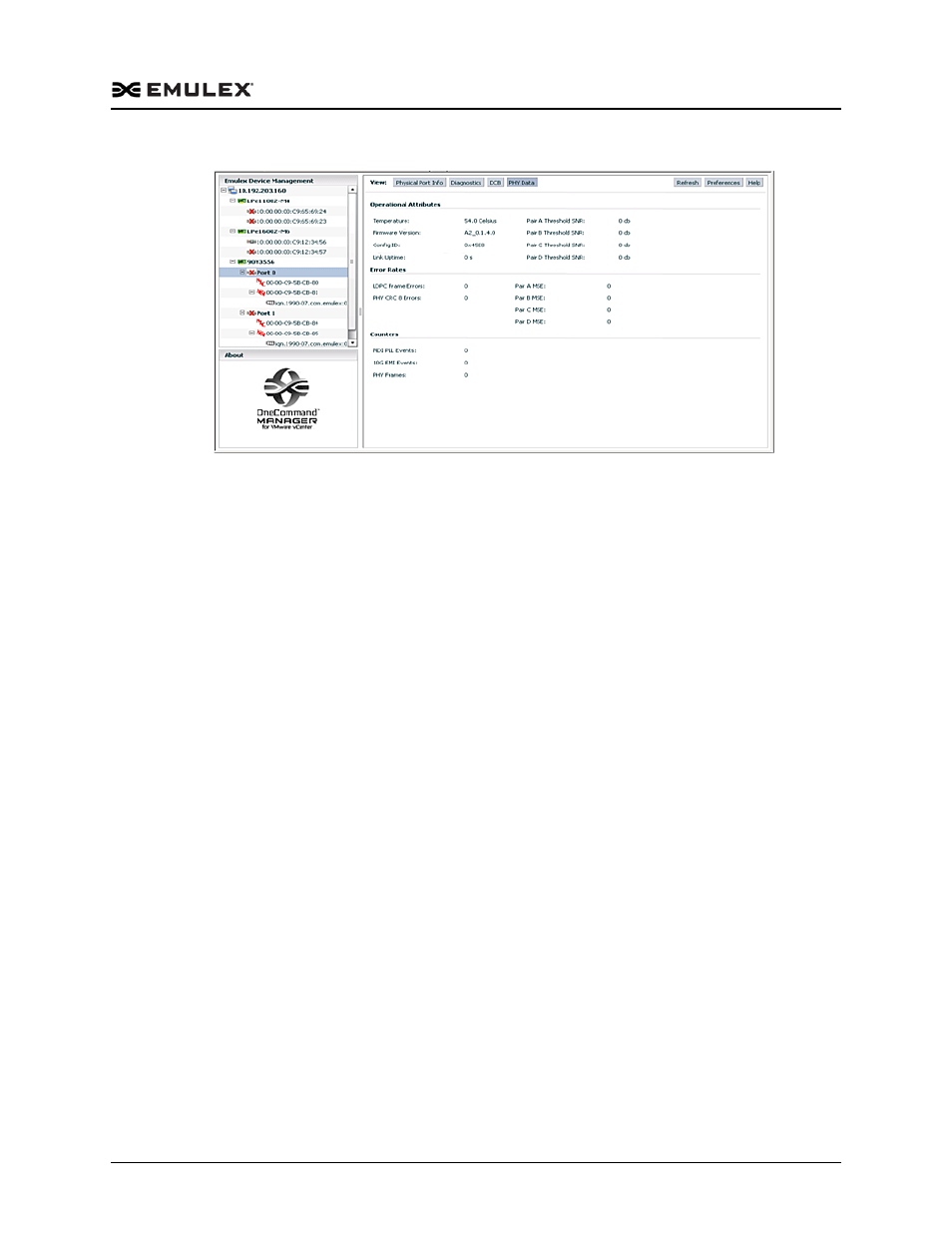

Figure 6-51 OneConnect Adapter PHY Data Tab
PHY Data Tab Field Definitions
Operational Attributes Area

Temperature – The internally measured adapter temperature.

Firmware – The version of Emulex firmware currently active on the adapter
port.

Config ID – The CRC configuration details.

Link Uptime – The time in seconds that the link has been up. Pair A/B/C/D
SNR Margin – The port’s average SNR margin for twisted pairs A, B, C & D.
Error Rates Area

LDPC Frame Errors – The number of LDPC frame errors.

PHY CRC8 Errors – The number of physical CRC errors.

Pair A/B/C/D MSE – The port’s average MSE relative to the transmitted code
words for twisted pairs A, B, C & D.
Counters Area

MDI PLL Events – The number of MDI PLL events.

10G EMI Events – The 10G EMI Event counter tracks the number of single-tone
interference detected by the CNA's MDI signals. This counter holds its value at
MDI link down and self-clears at the next link up.

PHY Frames – Counts the number of physical frames transmitted and received
since the MDI link has been established. This counter holds its value at MDI link
down and self-clears at the next link up.
