Dell Emulex Family of Adapters - Manual (Page 1248)

OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
6. Managing Adapters and Ports
NIC Port
1248
3. Select the PCI Registers tab.

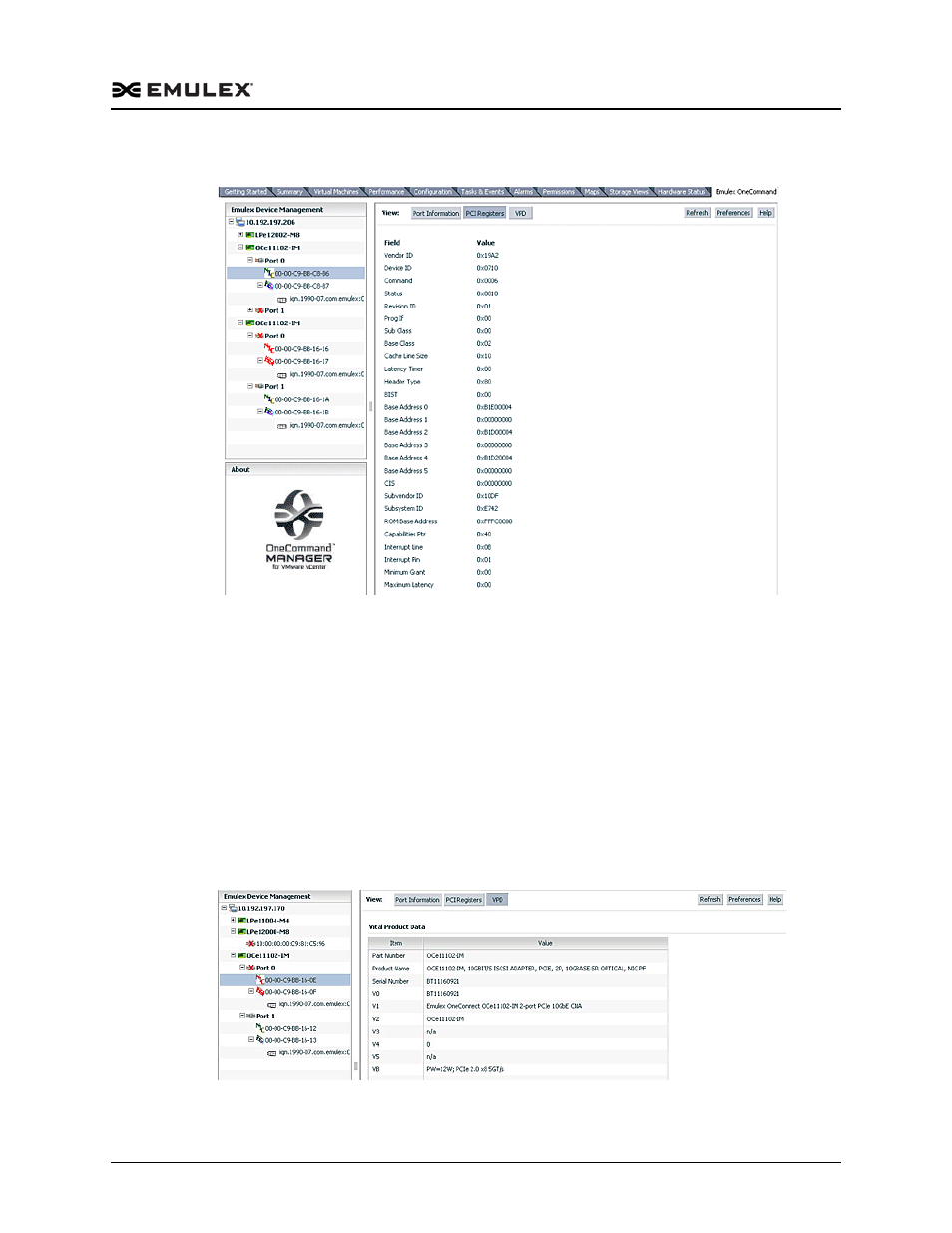

Figure 6-38 NIC Port PCI Registers Tab
Viewing NIC Port Vital Product Data (VPD)
The VPD tab shows vital product data (if available) for the selected NIC port such as
the product name, part number, and serial number for example.
To view VPD information of an NIC port:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the NIC port for which you
want to view VPD information.
3. Select the VPD tab.
Figure 6-39 NIC Port VPD Tab
