vNIC Configuration
When vNIC is selected on the adapter, the Adapter Configuration tab looks like the
following:

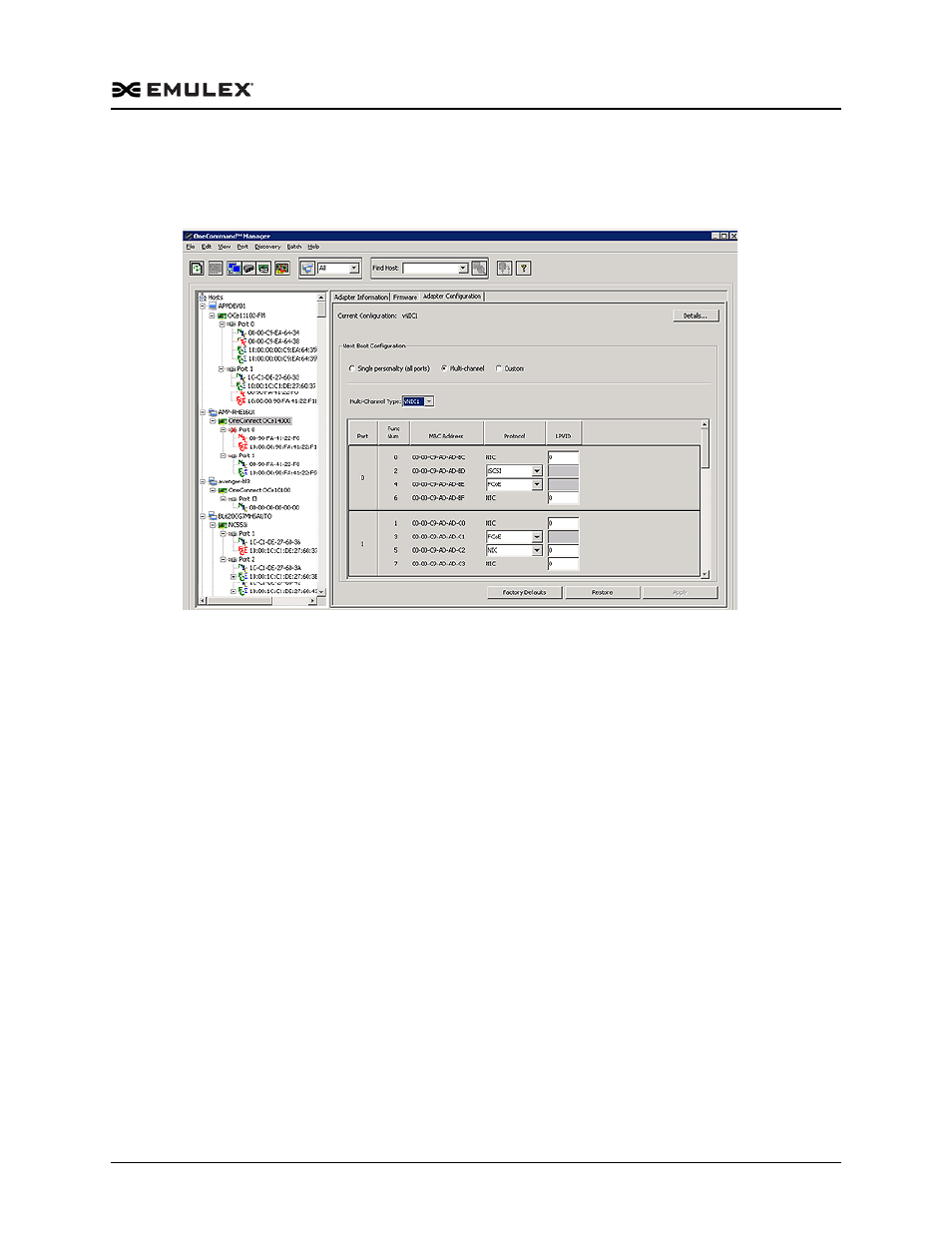

Figure 8-80 MultiChannel vNIC View (mix mode storage)
The Channel Configuration table shows the channel properties for vNIC. Additionally,
the protocol can be configured on the second and third channels including NIC .
The NIC channels can be assigned an LPVID (or inner VLAN ID). It can be assigned
any value from 0-4094. The outer VLAN ID is assigned by the switch and can be viewed
by clicking Details.
Note: After changing the LPVIDs on any of the channels and clicking Apply, the
changes take effect immediately. No reboot is required.
vNIC Configuration Rules
There are drop-down menus for each port's 2nd and 3rd channels. vNIC channel
protocol assignments are subject to the following rules:

The first channel is always NIC.

NIC + RoCE cannot be configured with vNIC.

The 2nd and 3rd channels can be assigned the following:

NIC

None (channel disabled)

Storage protocol (note: on 3rd channel only when concurrent mode storage
is available)

The 4th and higher channels of a port (if available) can only be assigned NIC or
None.
