Boot Version 10.2 for NIC, iSCSI, FCoE, and RoCE Protocols User Manual P010097-01B Rev. A
6. Using the FCoE Boot BIOS Utility for x86 and x64 Architectures
Configuring CEE Parameters
1584
Configuring CEE Parameters
Note: For DCBX configuration, the adapter is always in CEE mode.
To configure CEE parameters:
1. If multiple VLANs or FCoE switches are set up and you want to select a particular
VLAN to boot from every time, select Configure FCF CEE Parameters from the
main configuration menu (Figure 6-2) and press . A list of discovered FCF
is displayed.

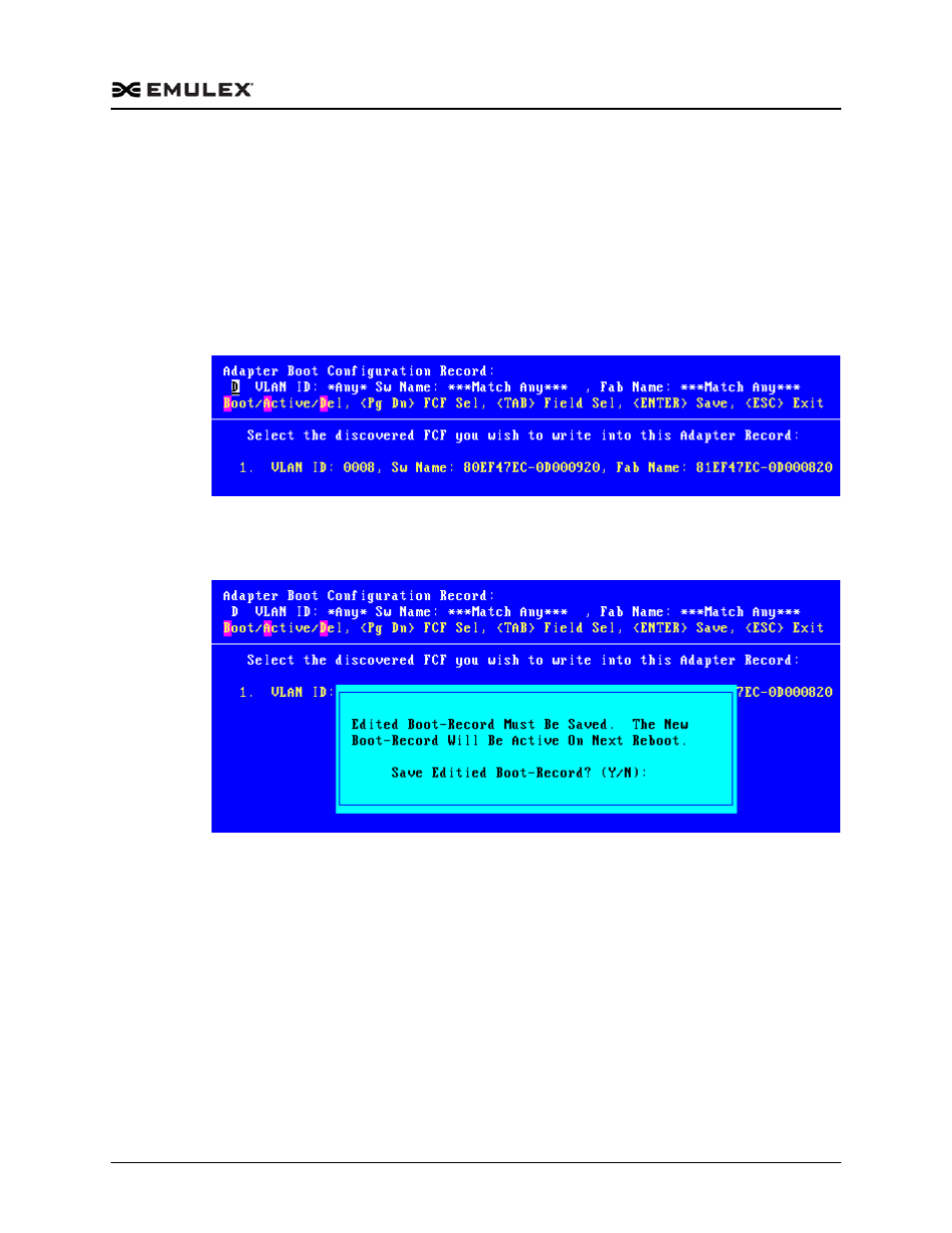

Figure 6-11 FCF Listing
2. Select the FCF you want to boot from every time and save this to the adapter record
by pressing . The following message is displayed.
Figure 6-12 Save Edited Boot Record Dialog Box
3. Type to save the boot record. The main configuration menu is displayed.
Configuring Advanced Adapter Parameters
The BIOS utility has numerous options that can be modified to provide different
behavior. Use the BIOS utility to perform the following tasks:

Change the default AL_PA of the adapter

Change the PLOGI retry timer

Enable or disable spinup delay

Set autoscan

Enable or disable EDD 3.0
