OneCommand Manager for VMware vCenter Version 10.2 User Manual

P010089-01A Rev. A

9. Diagnostics

LightPulse FC HBA Diagnostic Tests

1318

b. Right-click the datastore where the dump file is located, and select Browse

Datastore... from the context menu. A Datastore Browser window opens

(Figure 9-11).

c. In the Datastore Browser, right-click the dump file that you want to review and

select Download... from the context menu. A Browse for Folder window opens.

d. Select the desired location for the dump files in the Browse for Folder window

and press OK. The file is down loaded to the location you select.
You can view the dump file in any text editor.

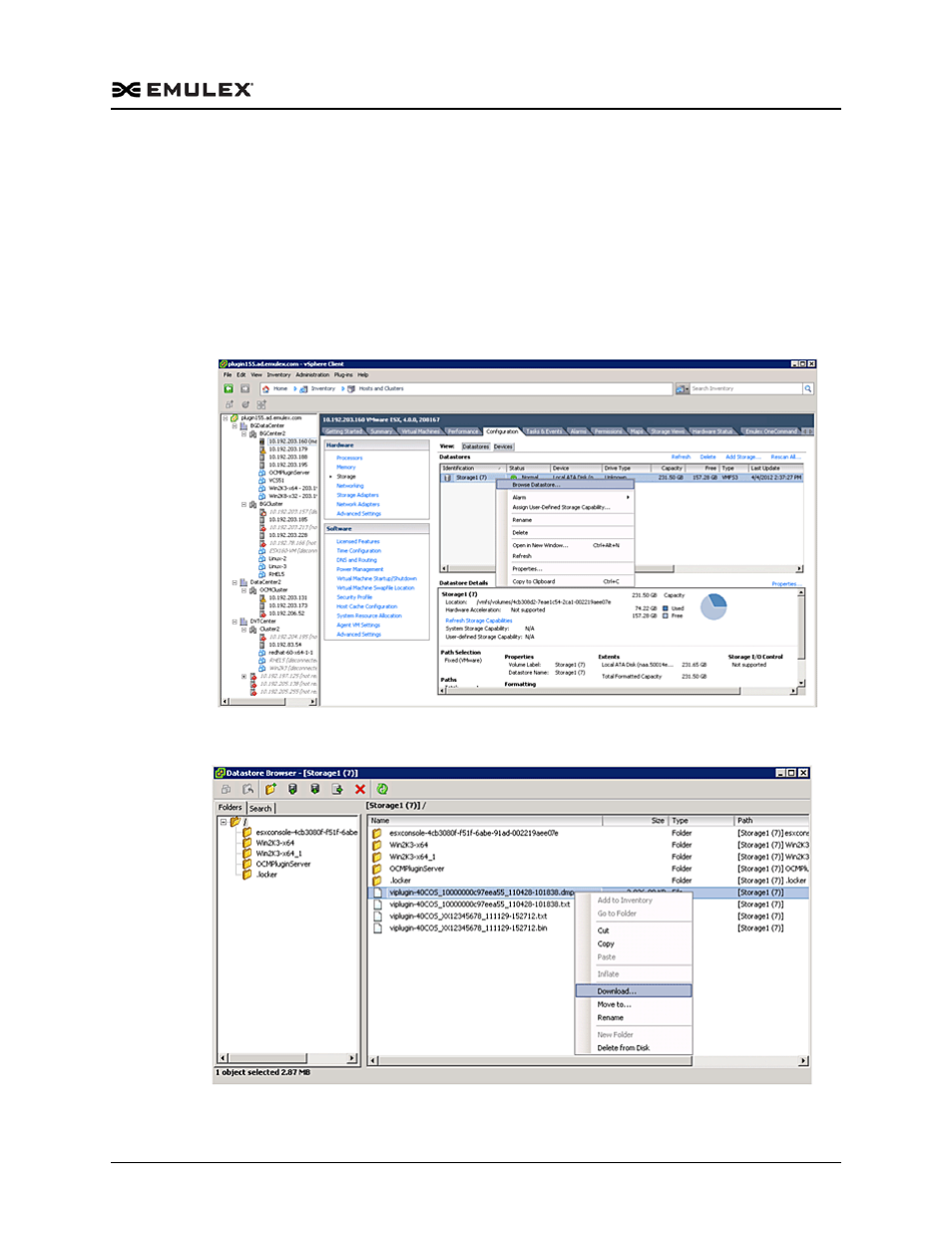

Figure 9-10 Datastores View of vSphere Client

Figure 9-11 vSphere Datastore Browser
