Dell Emulex Family of Adapters - Manual (Page 1304)

OneCommand Manager for VMware vCenter Version 10.2 User Manual P010089-01A Rev. A
7. Updating Firmware
Updating Firmware for OCe10100–Series, OCe11100–Series, and OCe14100–Series Adapters
1304

Update Firmware – Click to update firmware on a different adapter in the same
cluster.

Cancel Updates – Click to cancel the jobs with “Waiting in queue to start”
status.
Updating Firmware for OCe10100–Series,
OCe11100–Series, and OCe14100–Series Adapters
For OCe10100-series, OCe11100-series, and OCe14100-series adapters, you update the
firmware for the entire adapter and not for individual ports.
To update firmware for an adapter:
1. Select a host in the vSphere console tree-view and select the Emulex OneCommand
tab.
2. In the Emulex Device Management tree-view, select the adapter for which you
want to update firmware information.
3. Select the Maintenance tab (Figure 6-48) and click Update Firmware. If a warning
message appears, click Yes. The Firmware Download dialog box appears.

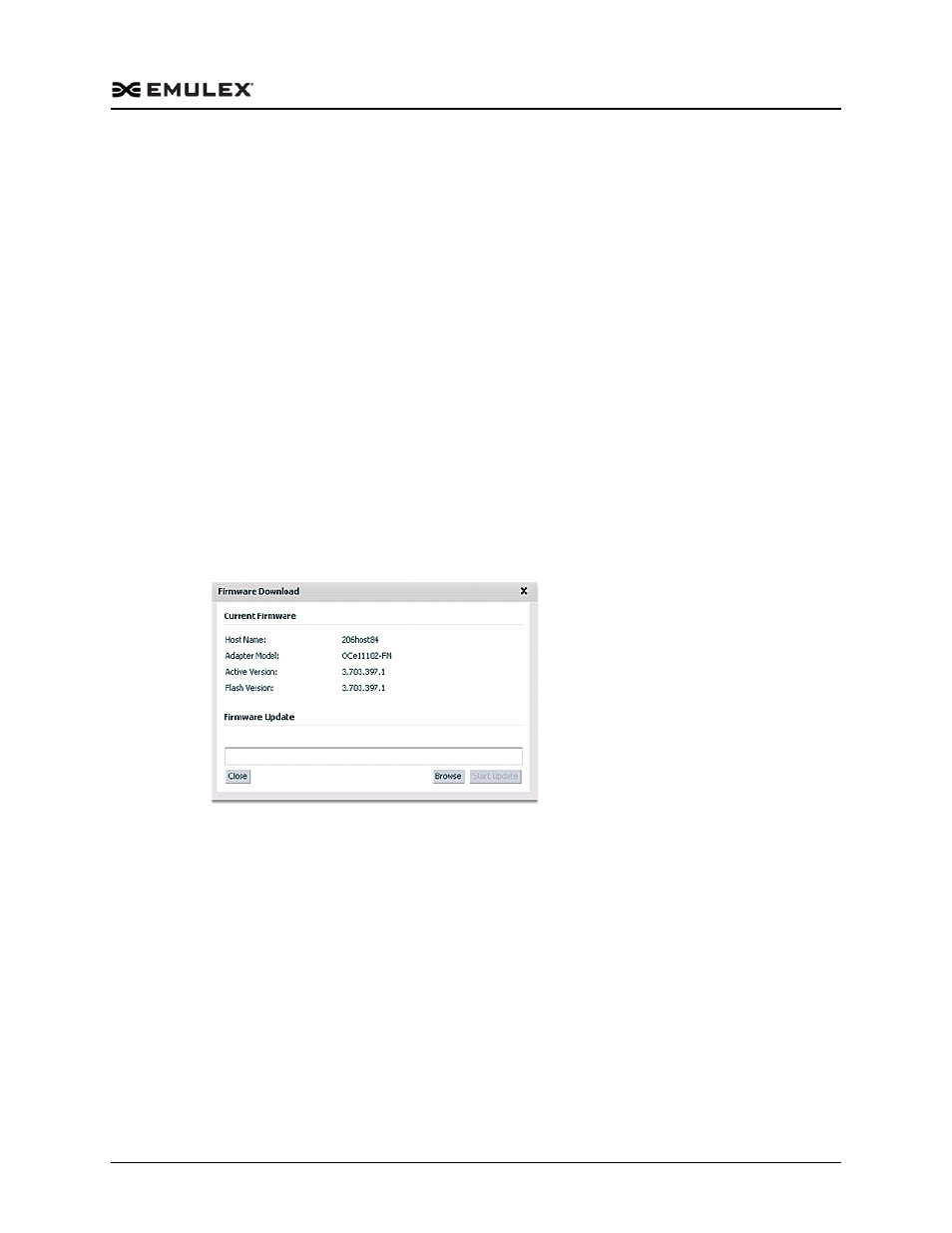

Figure 7-10 Firmware Download Dialog Box
4. Click Browse and navigate to the unzipped, extracted image file you want to
download.
5. On the browse window, select the file and click OK.
6. Click Start Update.
When the update begins, the Jobs window is displayed (Figure 7-7). A status
message in the Active Job list shows the progress of the download. The ports on
which the firmware is being downloaded have the status “Job is in progress”, the
other ports display the “Waiting in queue to start” status.
When the download has completed, the entry moves to the Completed Jobs
window. The status message field in the Completed Jobs window shows the status
of the completed job.
